High Clutch: Assembly

WARNING: This page is about a different variant/trim than selected.

Install D-ring and oil seal on piston.
- Take care with the direction of the oil seal.
- Apply ATF to both parts.

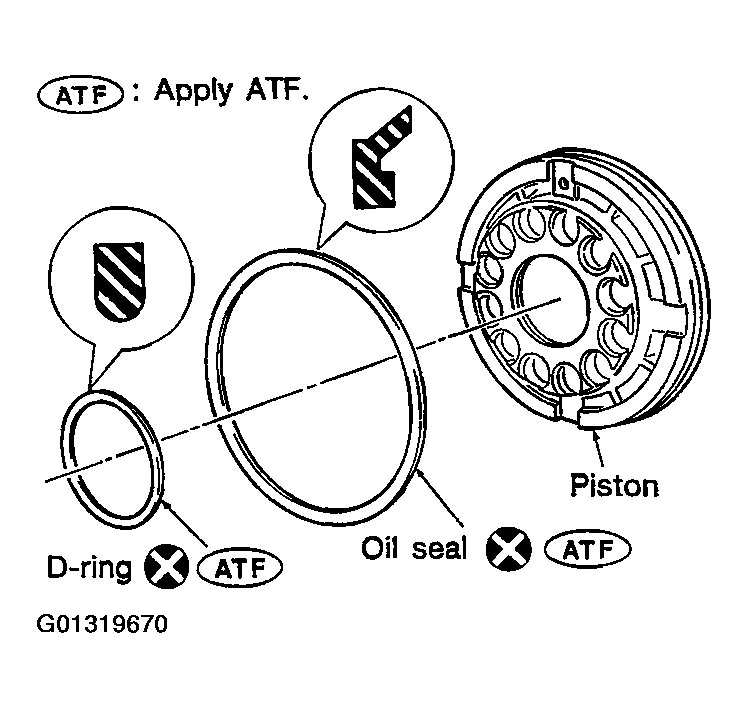

Fig 1: Installing D-Ring And Oil Seal On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Install piston assembly by turning it slowly.
- Apply ATF to inner surface of drum.
Fig 2: Installing Piston Assembly By Turning It Slowly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return springs and spring retainer on piston.
Return spring: Refer to "CLUTCH AND BRAKE RETURN SPRINGS ".

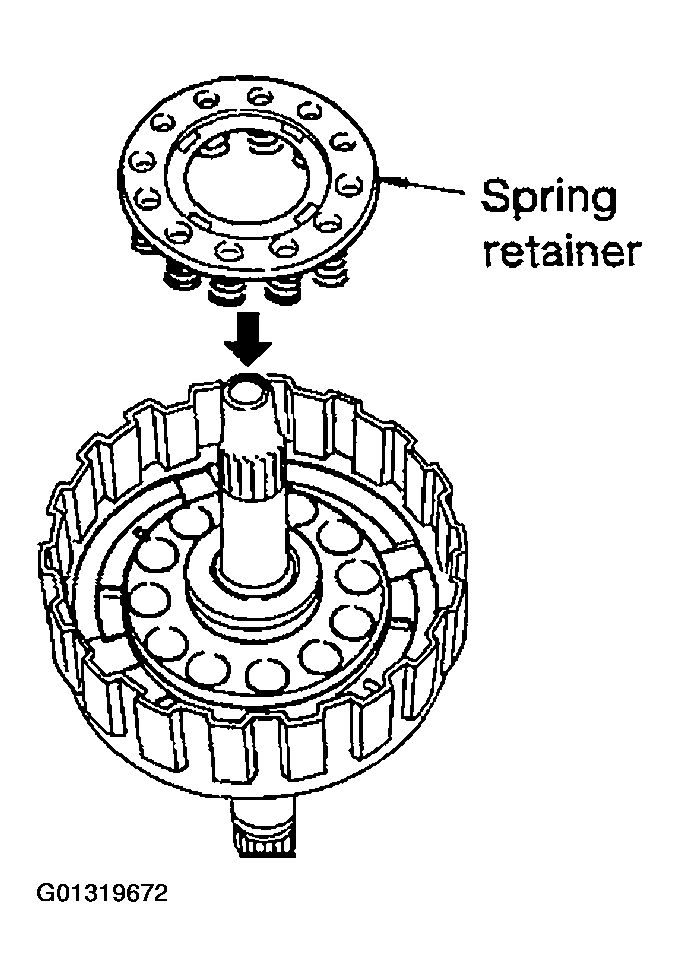

Fig 3: Installing Spring Retainer On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly above return springs.

  Fig 4: Installing Snap Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Do not align snap ring gap with spring retainer stopper.

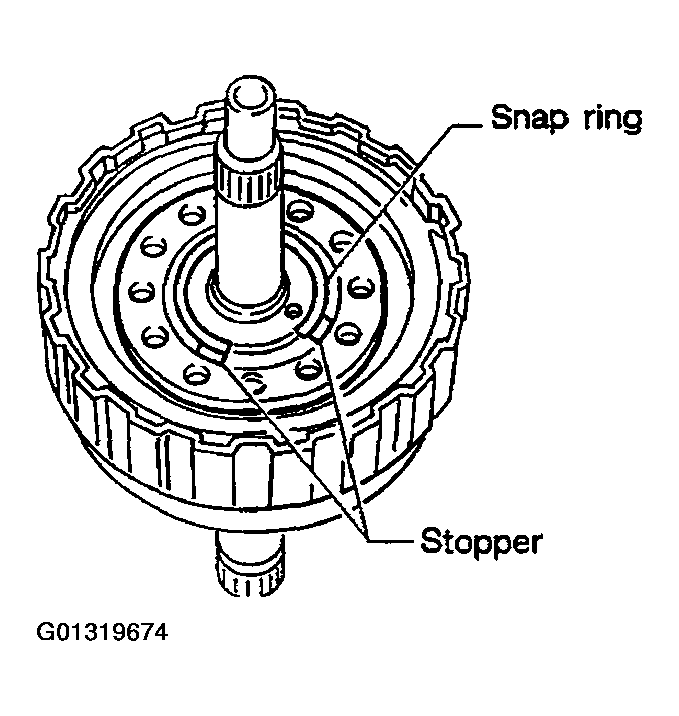

  Fig 5: Identifying Snap Ring And Stopper
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates and retaining plate.
1. Take care with the order and direction of plates.
Install snap ring.

Fig 6: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
1. Specified clearance
2. Standard: 1.4 - 1.8 mm (0.055 - 0.071 in)
3. Allowable limit: 2.4 mm (0.094 in)
4. Retaining plate: Refer to "HIGH CLUTCH ".

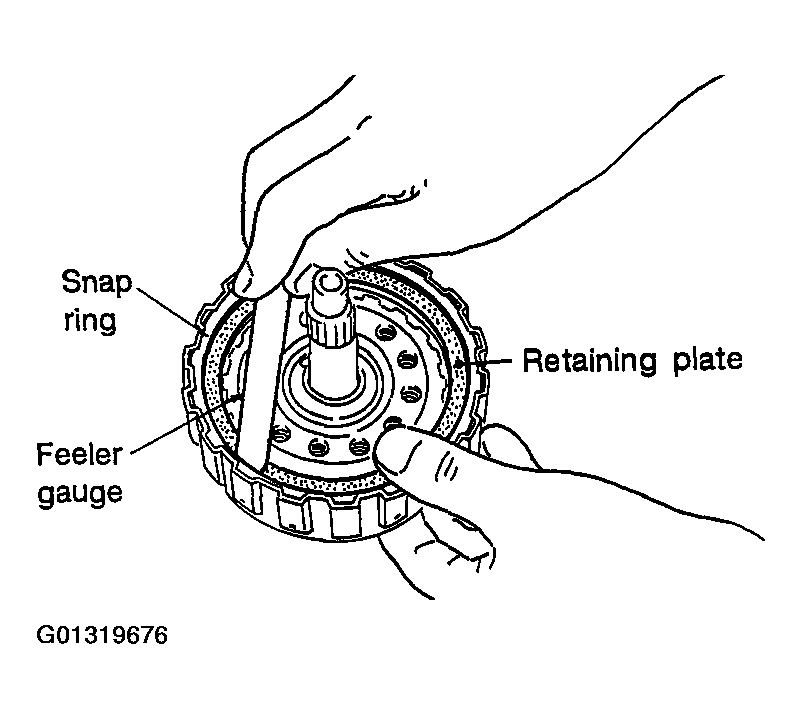

Fig 7: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of high clutch.
Refer to "HIGH CLUTCH ".

Fig 8: Applying Compressed Air On Oil Holes
Courtesy of NISSAN MOTOR CO., U.S.A.
Install seal rings to input shaft.
- Apply petroleum jelly to seal rings.

  Fig 9: Applying Petroleum Jelly On Seal Rings
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Roll paper around seal rings to prevent seal rings from spreading.

  Fig 10: Rolling Paper Around Seal Rings
  Courtesy of NISSAN MOTOR CO., U.S.A.
