Manual Shaft: Installation

WARNING: This page is about a different variant/trim than selected.

Install manual shaft oil seal using a suitable tool.
- Apply ATF to outer surface of oil seal .

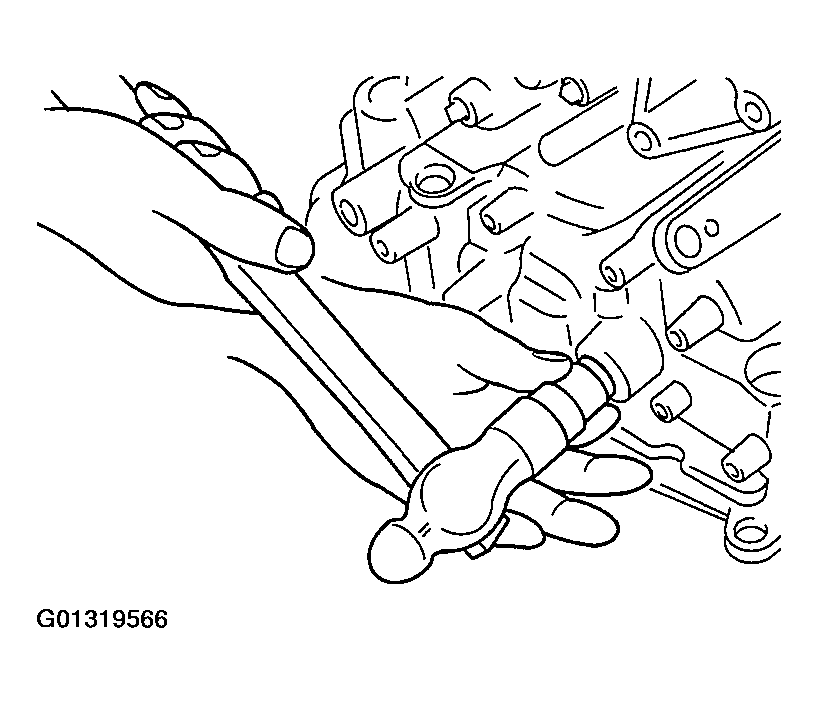

Fig 1: Installing Manual Shaft Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install manual shaft and manual plate.

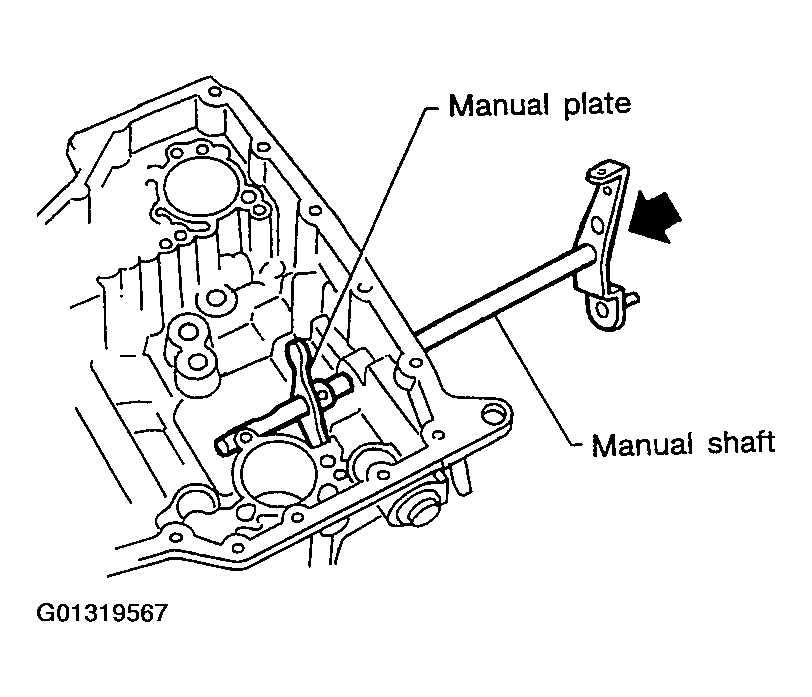

Fig 2: Installing Manual Shaft And Manual Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Align groove of manual shaft and hole of transmission case.
Install manual shaft retaining pin using Tool.

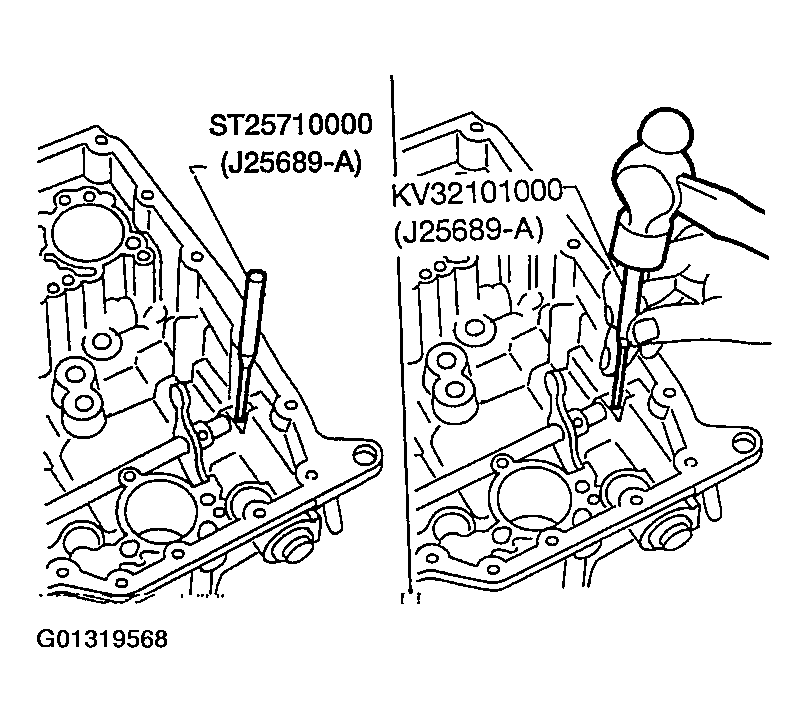

Fig 3: Installing Manual Shaft Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking rod to parking rod plate.

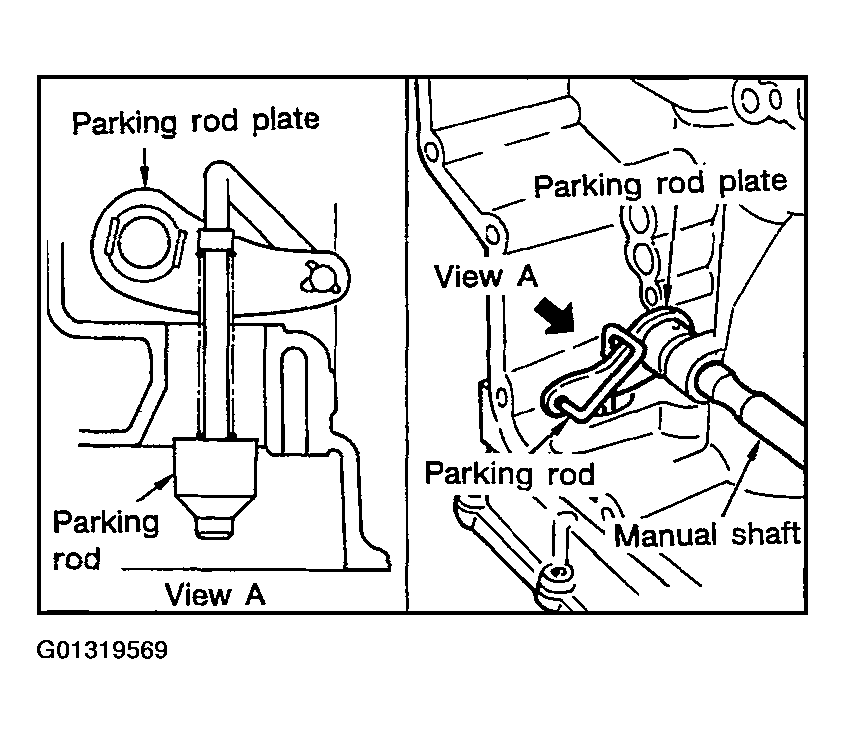

Fig 4: Installing Parking Rod To Parking Rod Plate

Courtesy of NISSAN MOTOR CO., U.S.A.

Set parking rod assembly onto manual shaft.
Drive in manual plate retaining pin and parking rod plate retaining pin using Tool.

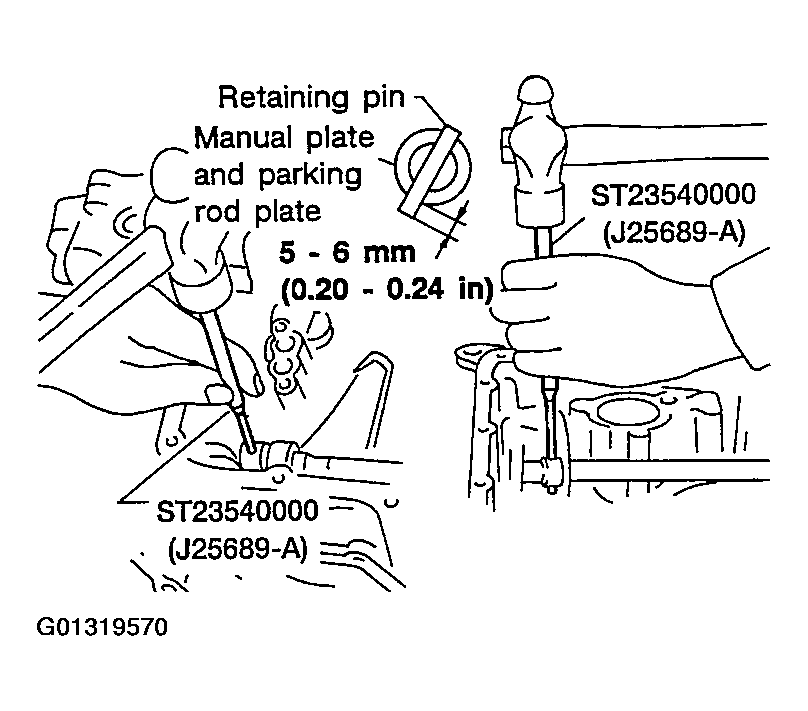

Fig 5: Driving In Manual Plate Retaining Pin And Parking Rod Plate Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Install detent spring.
: 6.4 - 7.5 N.m (0.65 - 0.76 kg-m, 56.4 - 66.0 in-lb)

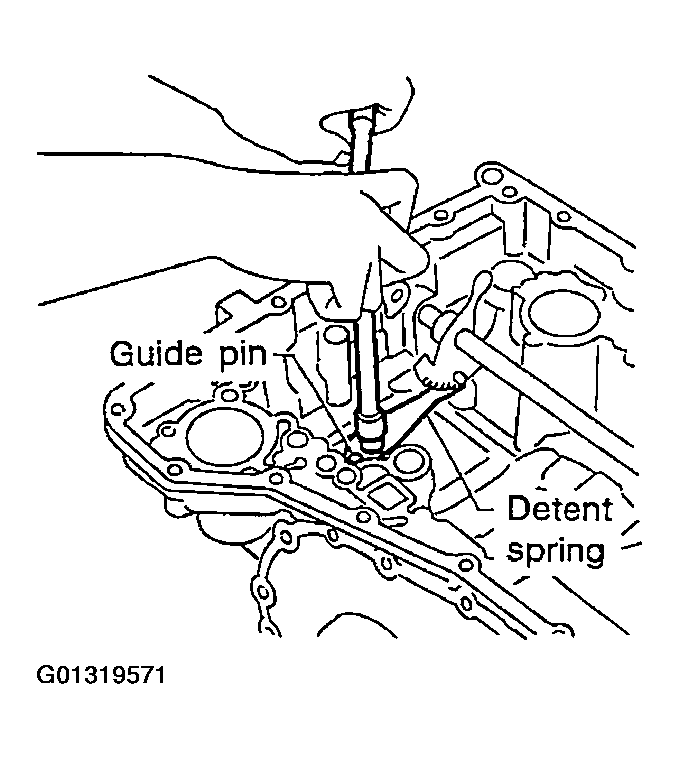

Fig 6: Installing Detent Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
