Vehicle Speed When Performing Lock-Up

WARNING: This page is about a different variant/trim than selected.

QG18DE (Calif. CA Model)

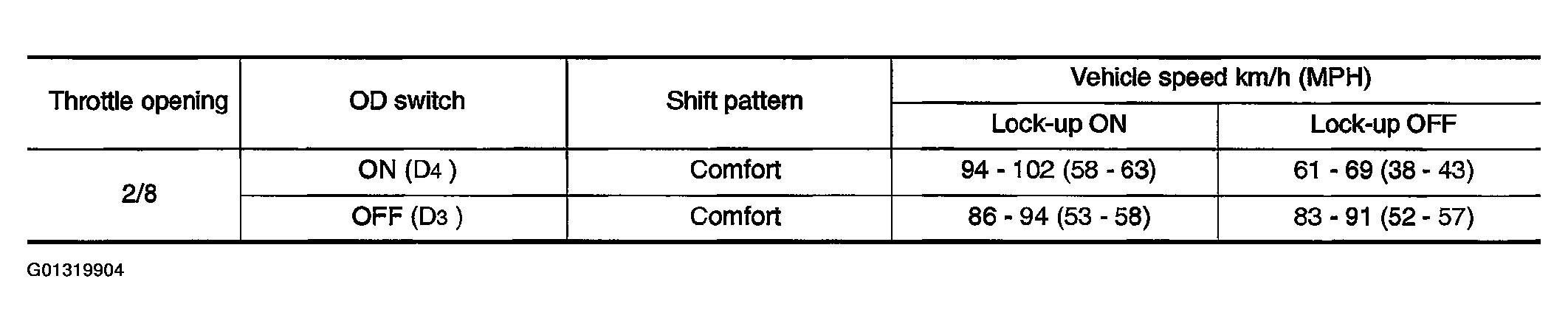

Fig 1: Vehicle Speed When Performing Lock-Up - QG18DE (Calif. CA Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

QG18DE (Except Calif. CA Model)

Fig 2: Vehicle Speed When Performing Lock-Up - QG18DE (Except Calif. CA Model)

Courtesy of NISSAN MOTOR CO., U.S.A.
