Description
›
Cross-sectional View
›
Notes
Cross-sectional View: Notes

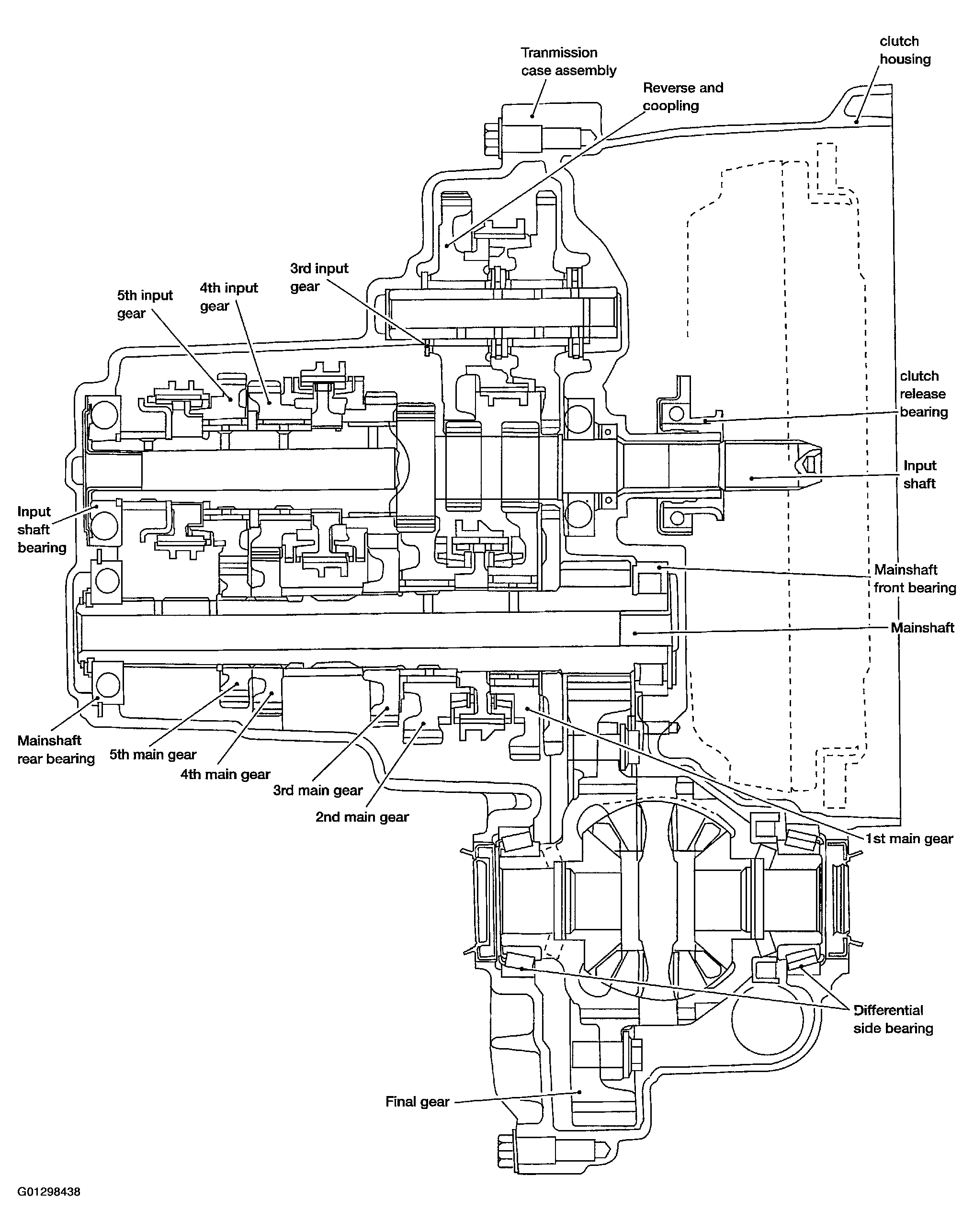

Fig 1: Cross-Sectional View Of (RS5F51A) Manual Transaxle
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
