Disassembly and Assembly: Assembly

  1. Apply gear oil to sliding area of differential case, each gear, and thrust washer.
  2. Install side gear thrust washers and side gears into differential case as shown.
    Fig 1: Installing Side Gear Thrust Washers And Side Gears Into Differential Case
    G01298587Courtesy of NISSAN MOTOR CO., U.S.A.
  3. While rotating pinion mate thrust washers and pinion mate gears, and aligning them diagonally, install them into differential case.
  4. Insert pinion mate shaft into differential case as shown.
    CAUTION: Be sure not to damage pinion mate thrust washers.
    Fig 2: Inserting Pinion Mate Shaft Into Differential Case
    G01298588Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Measure end play of side gears, using the procedure below. Then select side gear thrust washer.
    1. Upright the differential case so that its side gear to be measured faces upward.

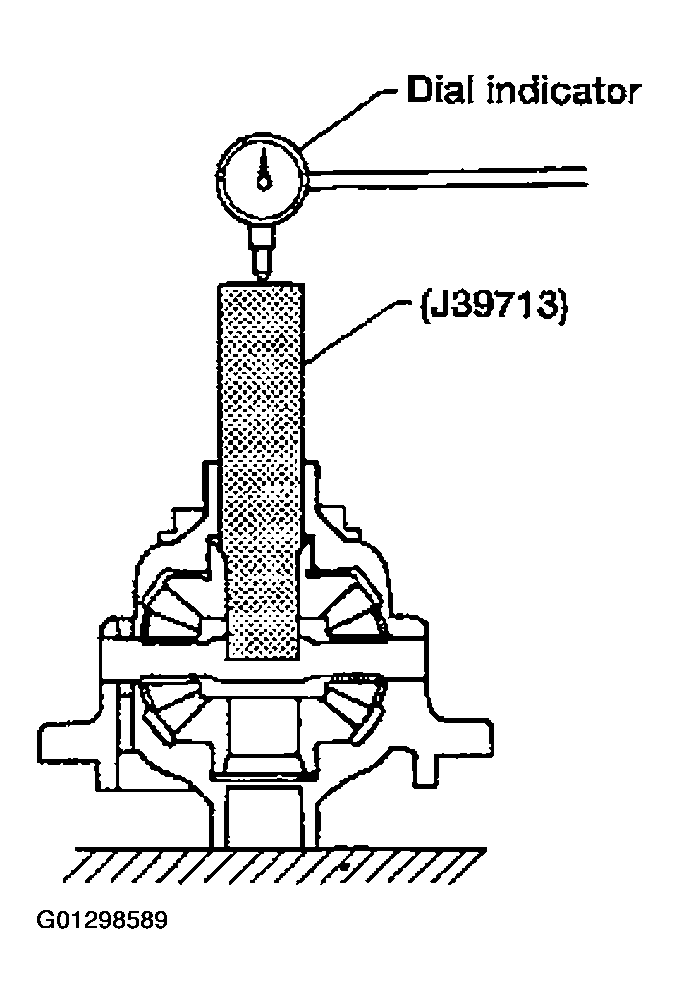

    2. Place final drive adapter and dial indicator onto side gears as shown.
      Fig 3: Placing Final Drive Adapter And Dial Indicator Onto Side Gears
      G01298589Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Move side gears up and down to measure end play, and select thrust washer so that it meets specification.
      1. End play standard value: 0.1 - 0.2 mm (0.004 - 0.008 in)
      CAUTION:
      • There must be no resistance and the gears must rotate freely.
      • Place differential case upside down. Measure the end play for opposite side-gears using the same procedure.
      • Only one thrust washer can be selected.

    Thrust washers

    Fig 4: Measuring End Play By Moving Side Gears Up And Down
    G01298590Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 5: Thrust Washers Specification Table
    G01298591Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Drive a new lock pin into the pinion mate shaft using a suitable tool as shown.
    CAUTION: Do not reuse the lock pin.
    Fig 6: Driving Lock Pin Into Pinion Mate Shaft
    G01298592Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install differential side bearing (transaxle case side) using Tool as shown.
    Fig 7: Installing Differential Side Bearing (Transaxle Case Side)
    G01298593Courtesy of NISSAN MOTOR CO., U.S.A.

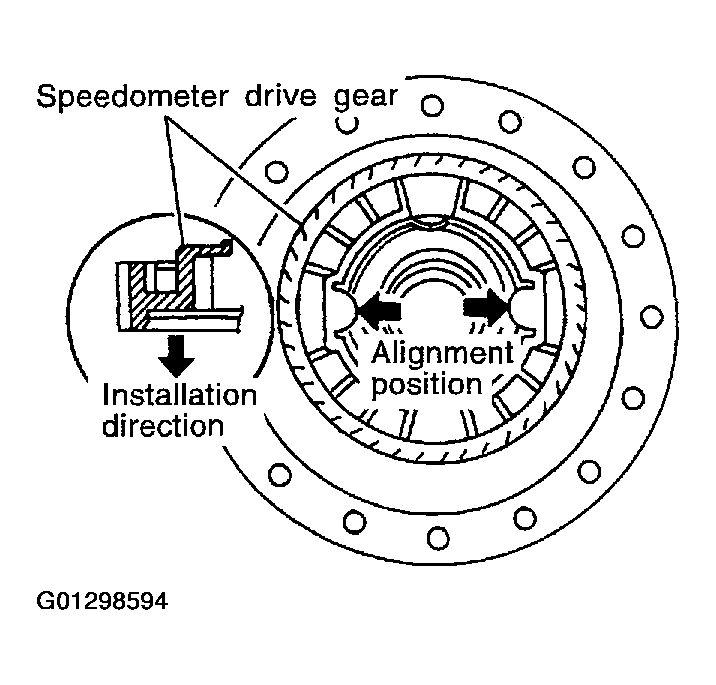

  8. Align and install speedometer drive gear onto differential case as shown.
    Fig 8: Aligning And Installing Speedometer Drive Gear Onto Differential Case
    G01298594Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install differential side bearing (clutch housing side) using Tool as shown.
    Fig 9: Installing Differential Side Bearing (Clutch Housing Side)
    G01298595Courtesy of NISSAN MOTOR CO., U.S.A.

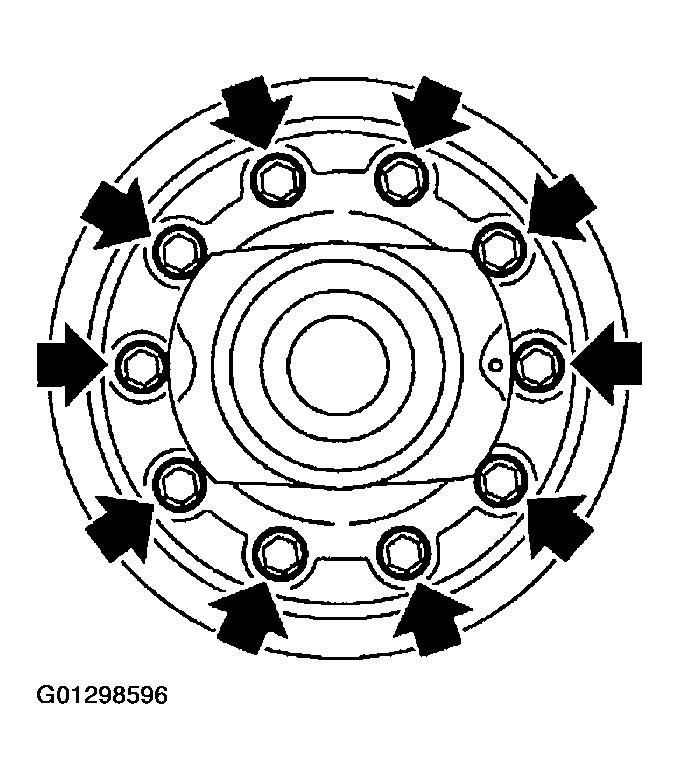

  10. Install the final gear into the differential case, and tighten the final gear bolts to specification.
    1. Final gear bolts: 112.7 - 127.4 N.m (11.5 - 12.9 kg-m, 84 - 93 ft-lb)
    Fig 10: Identifying Final Gear Bolts
    G01298596Courtesy of NISSAN MOTOR CO., U.S.A.
