Special Service Tools

The actual shapes of the Kent-Moore tools may differ from those of the special tools illustrated here.

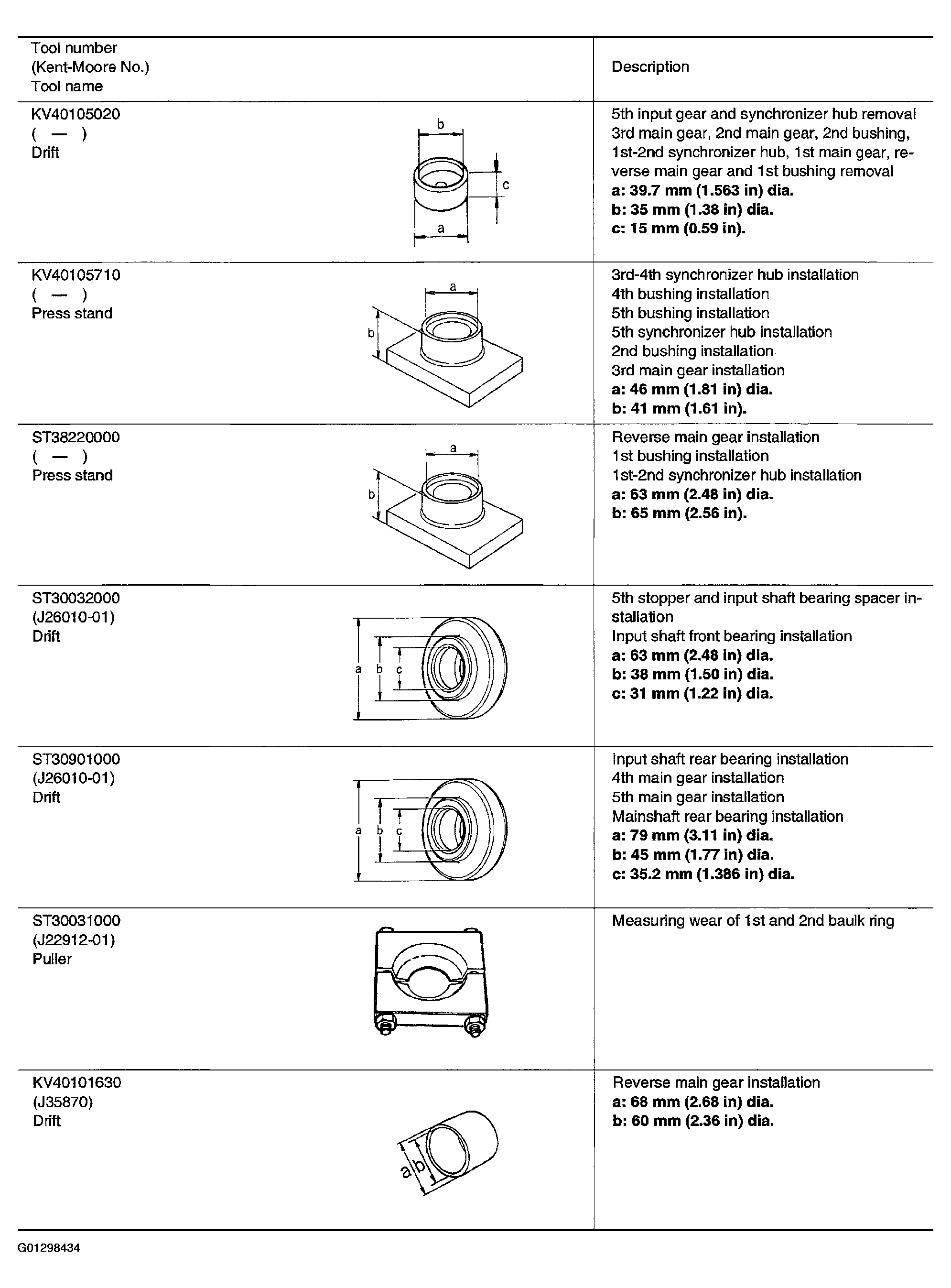

Fig 1: Identifying Special Service Tools (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

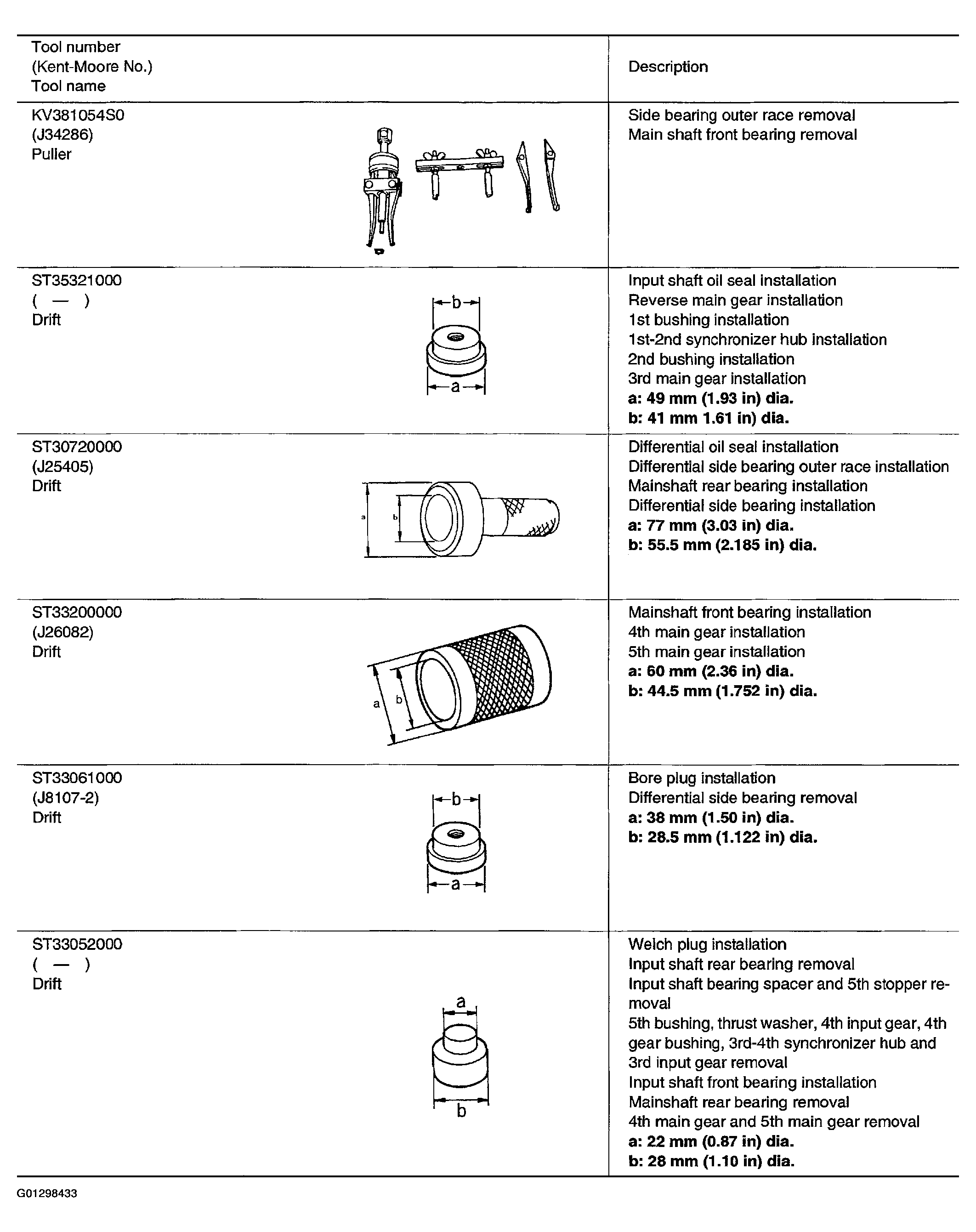

Fig 2: Identifying Special Service Tools (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

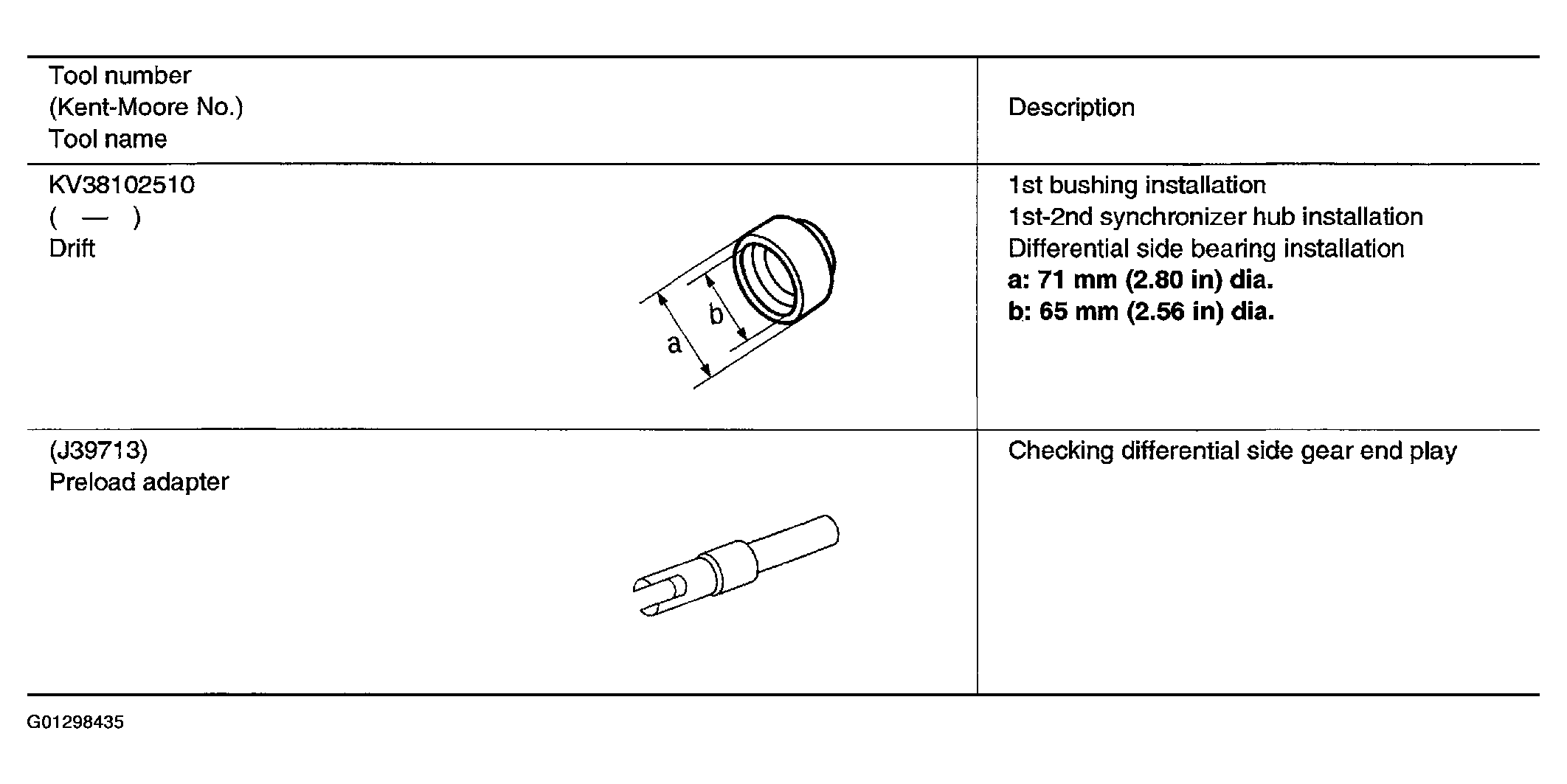

Fig 3: Identifying Special Service Tools (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
