Nissan-Datsun
›
2003
›
Sentra SE-R, Standard
›
Repair and Diagnosis
›
Transmission
›
Manual Transaxle (RS5F51A)
›
Transaxle Assembly
›
Component Parts
›
Final Drive Components
Final Drive Components

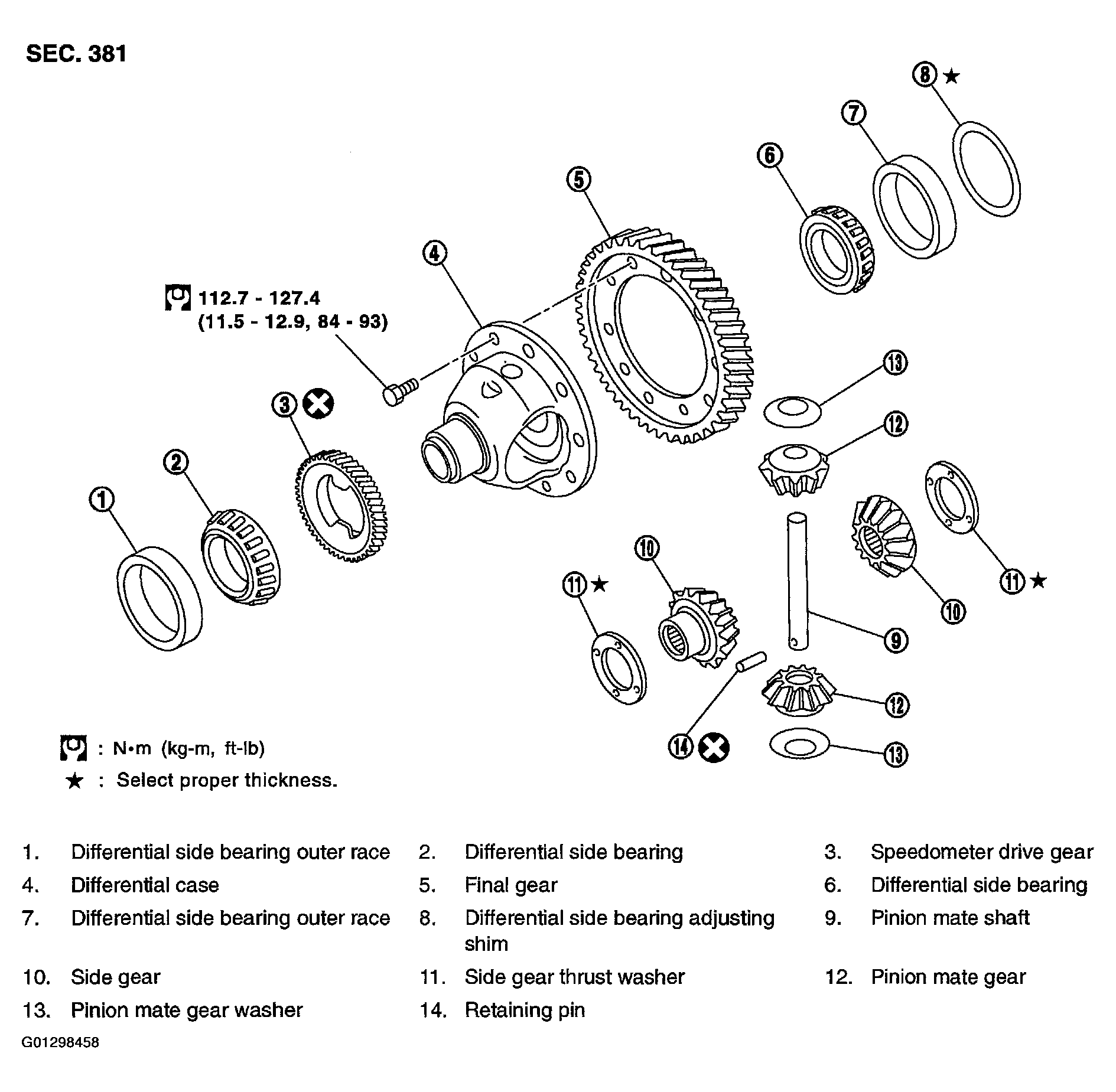

Fig 1: Identifying Final Drive Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
