Sentra SE-R, Standard
›
Repair and Diagnosis
›
Transmission
›
Manual Transaxle (RS5F51A)
›
Transaxle Assembly
›
Component Parts
›
Shift Control Components
Shift Control Components

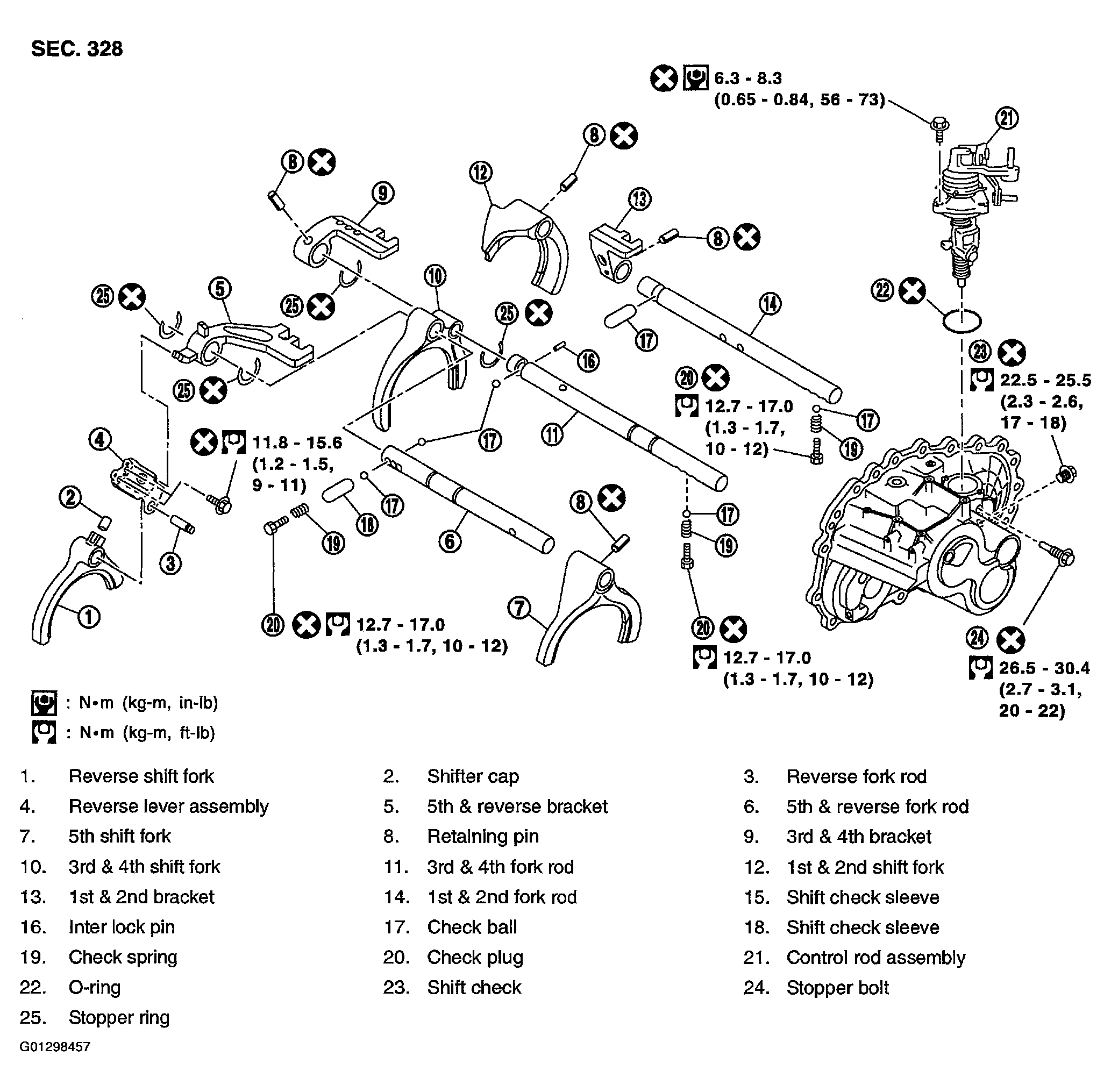

Fig 1: Identifying Shift Control Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
