Consult-II Function Application Table

CAUTION: "FUNCTION TEST" shall not be used for diagnosis. For details, refer to separately supplied "CONSULT-II Instruction Manual (FUNCTION TEST)".

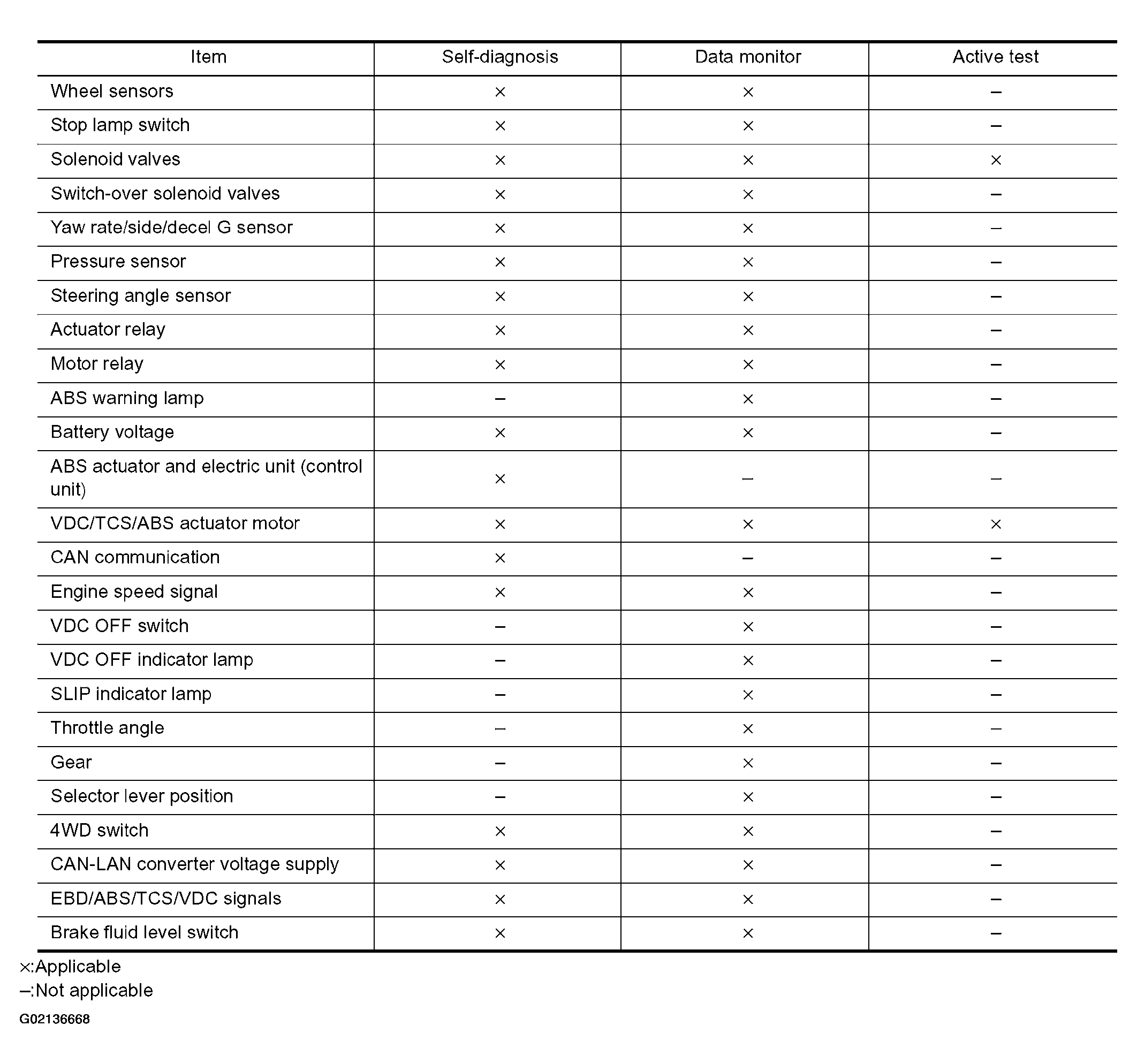

Fig 1: Consult-II Function Application Table

Courtesy of NISSAN MOTOR CO., U.S.A.
