Method B

  1. Remove No. 1 ignition coil.

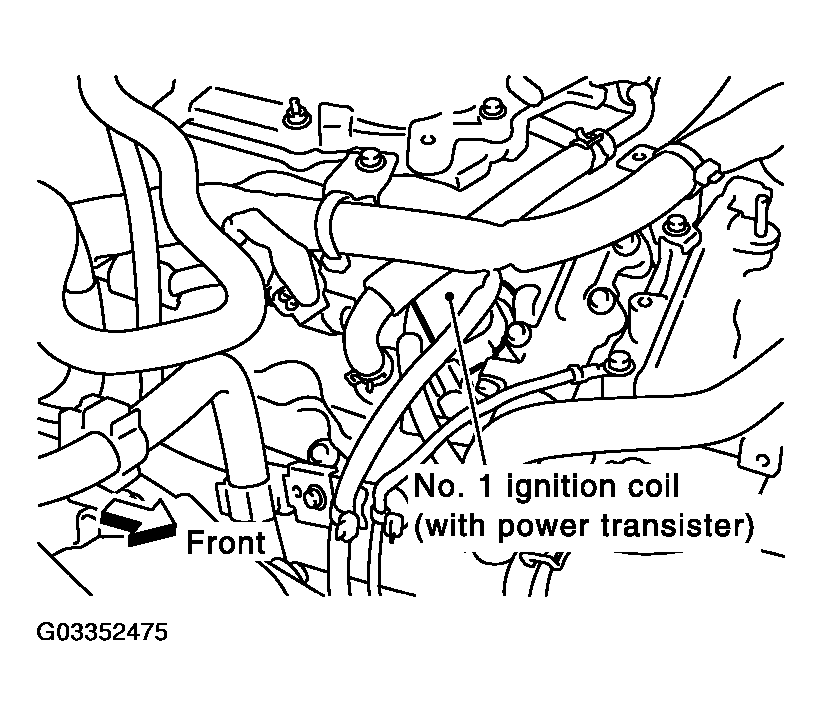

    Fig 1: Removing No. 1 Ignition Coil
    G03352475Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

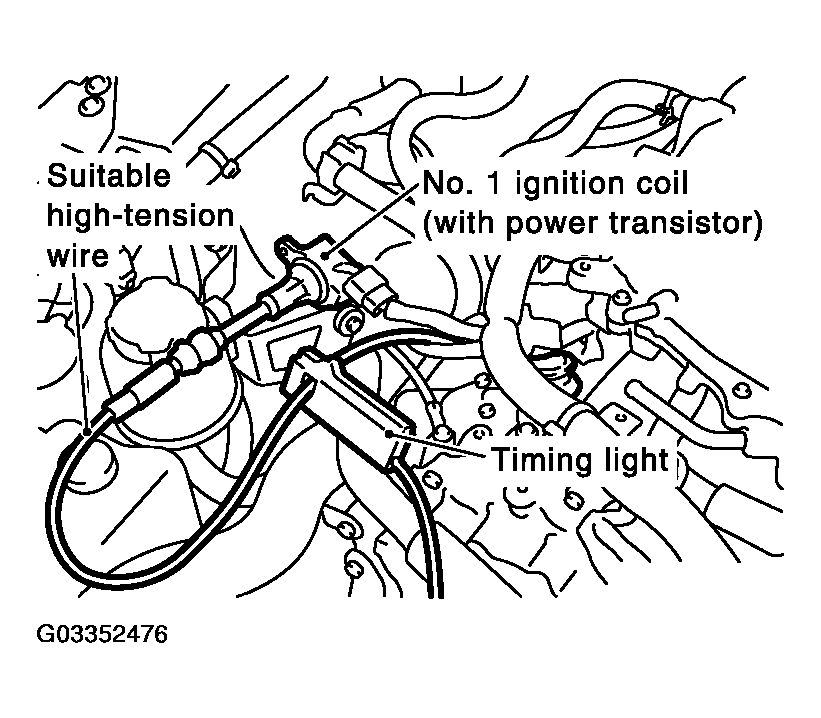

    Fig 2: Connecting No. 1 Ignition Coil And No. 1 Spark Plug With Suitable High-Tension Wire
    G03352476Courtesy of NISSAN MOTOR CO., U.S.A.

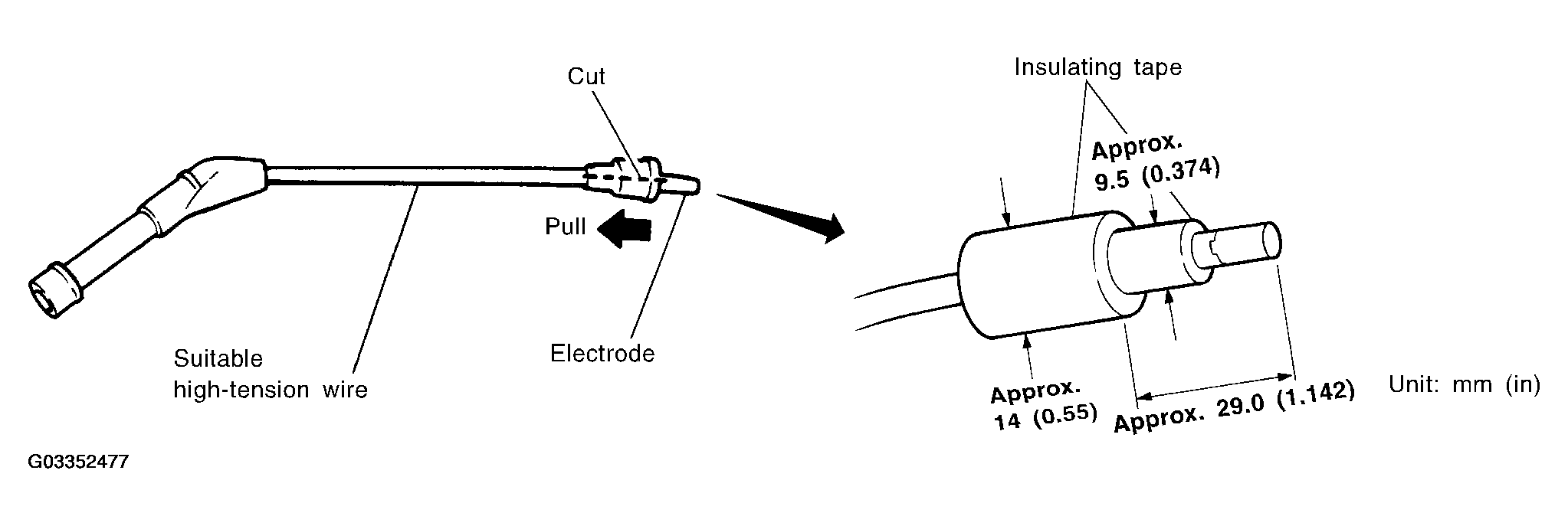

    Fig 3: Insulation Tape Dimensions
    G03352477Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

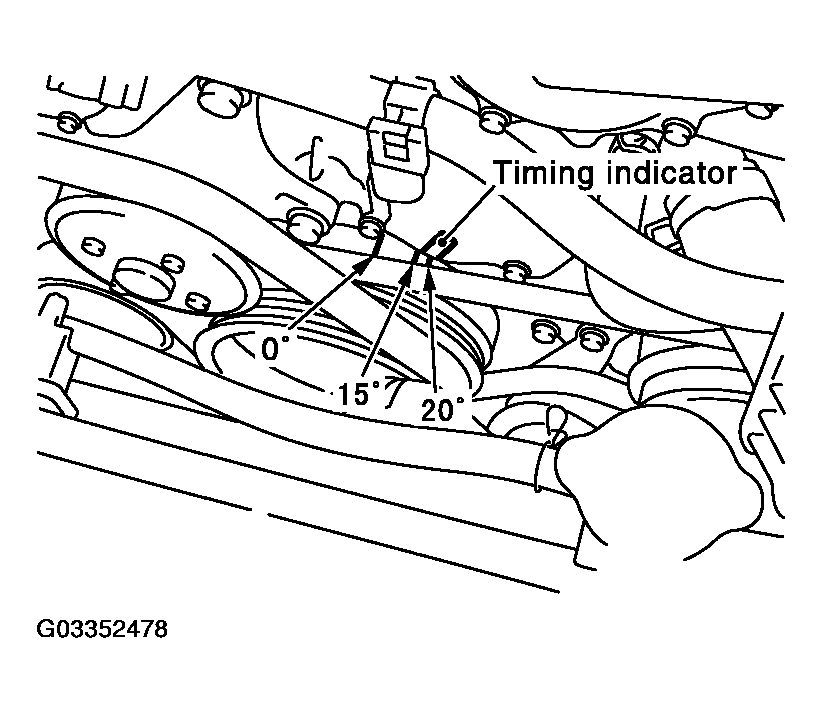

    Fig 4: Identifying Timing Indicator On Pulley
    G03352478Courtesy of NISSAN MOTOR CO., U.S.A.
