Component Inspection

INJECTOR

1. Disconnect injector harness connector.
2. Check resistance between terminals as shown in the figure.

   Resistance: 13.5 - 17.5Ω [at 10 - 60°C (50 - 140°F)]

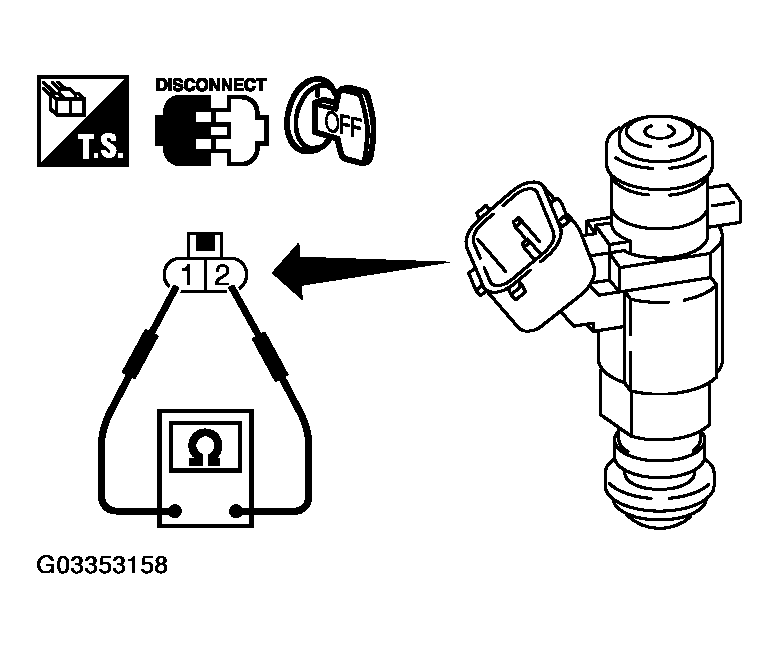

   Fig 1: Checking Resistance Between Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.
