Method B

  1. Remove No. 1 ignition coil.

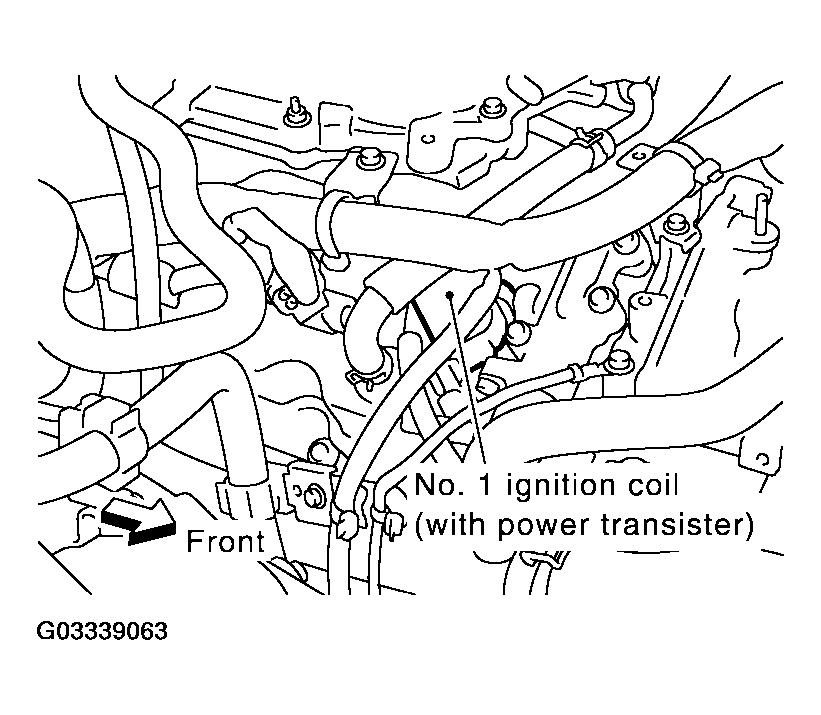

    Fig 1: Identifying No. 1 Ignition Coil
    G03339063Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown in Fig 2 and attach timing light clamp to this wire.

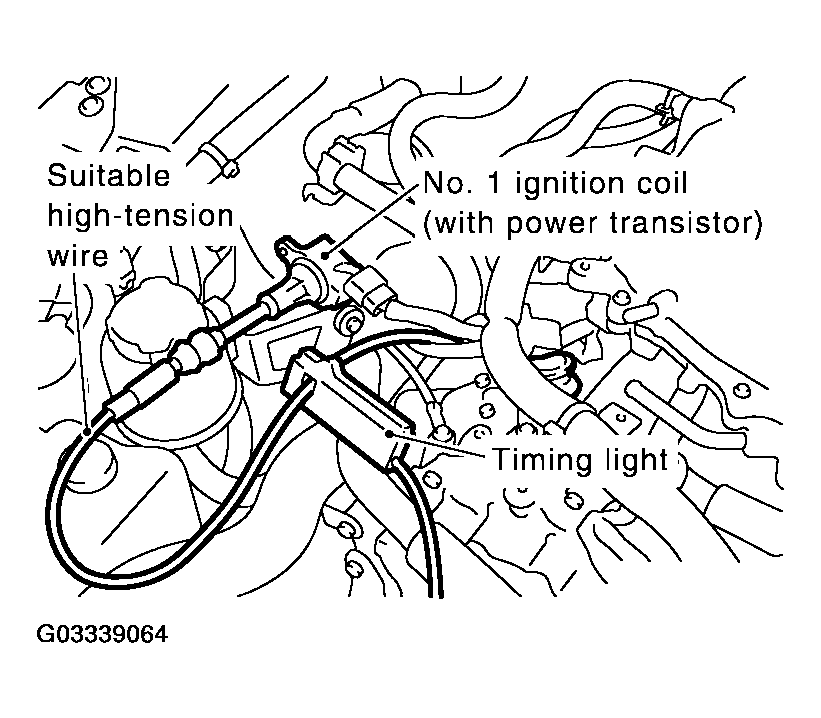

    Fig 2: Connecting Ignition Coil And Spark Plug With Suitable High-Tension Wire
    G03339064Courtesy of NISSAN MOTOR CO., U.S.A.

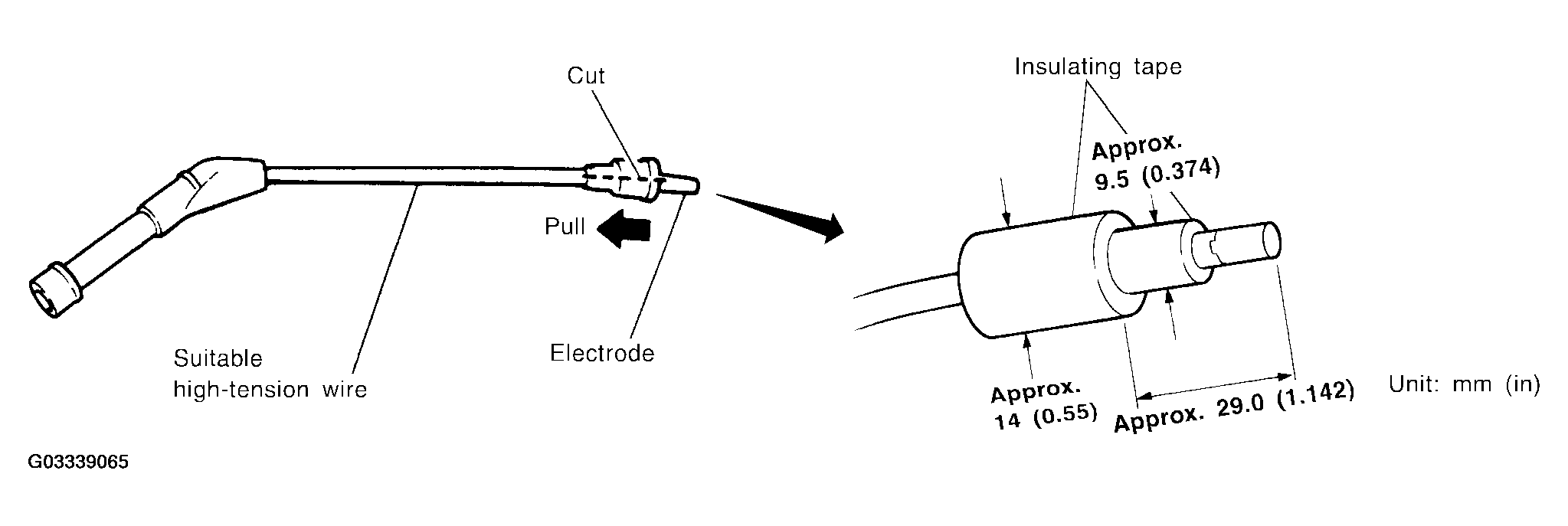

    Fig 3: Identifying Suitable High-Tension Wire And Dimensions
    G03339065Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

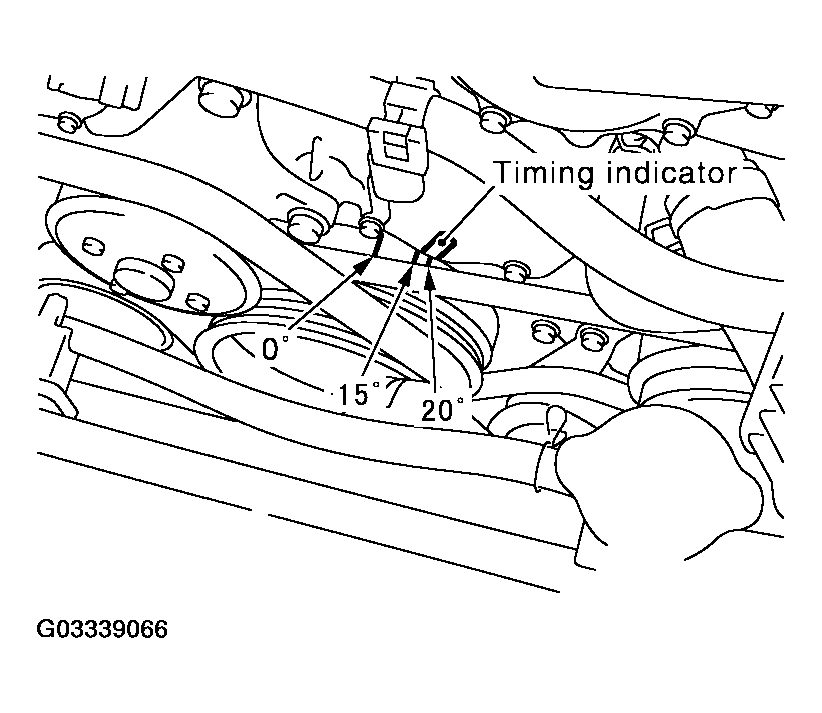

    Fig 4: Identifying Timing Indicator
    G03339066Courtesy of NISSAN MOTOR CO., U.S.A.
