Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector, which is located under LH dash panel near the hood opener handle.
  3. Turn ignition switch ON.

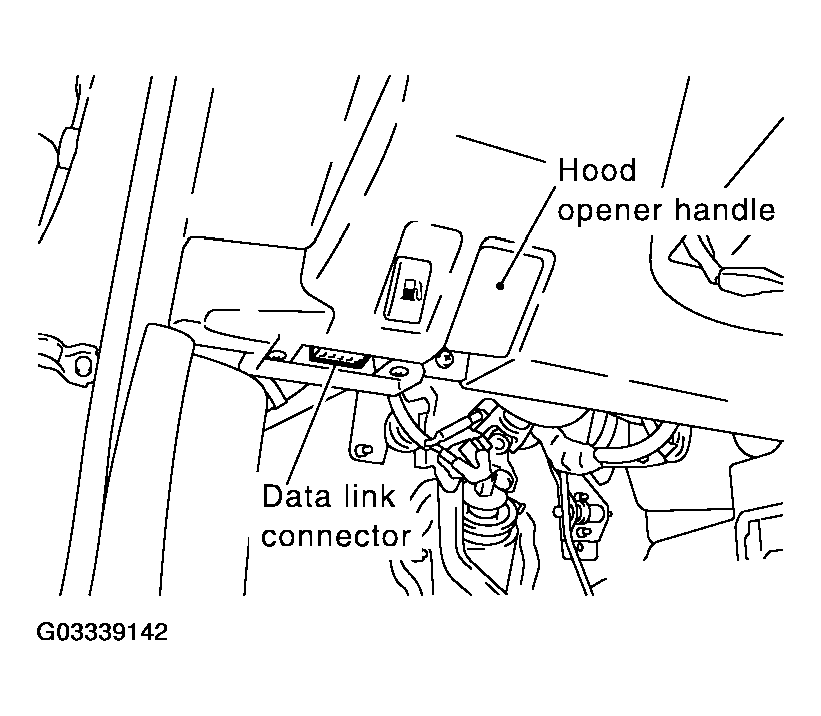

    Fig 1: Identifying Data Link Connector
    G03339142Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Touching START (NISSAN BASED VHCL) On Screen
    G03339143Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ENGINE".

    If "ENGINE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

    Fig 3: Touching ENGINE On Screen
    G03339144Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Perform each diagnostic test mode according to each service procedure.

    For further information, see the CONSULT-II Operation Manual  .

    Fig 4: Displaying Diagnostic Test Mode On Screen
    G03339145Courtesy of NISSAN MOTOR CO., U.S.A.
