Active Test Procedure

Turn ignition switch OFF.
Connect CONSULT-II to data link connector.

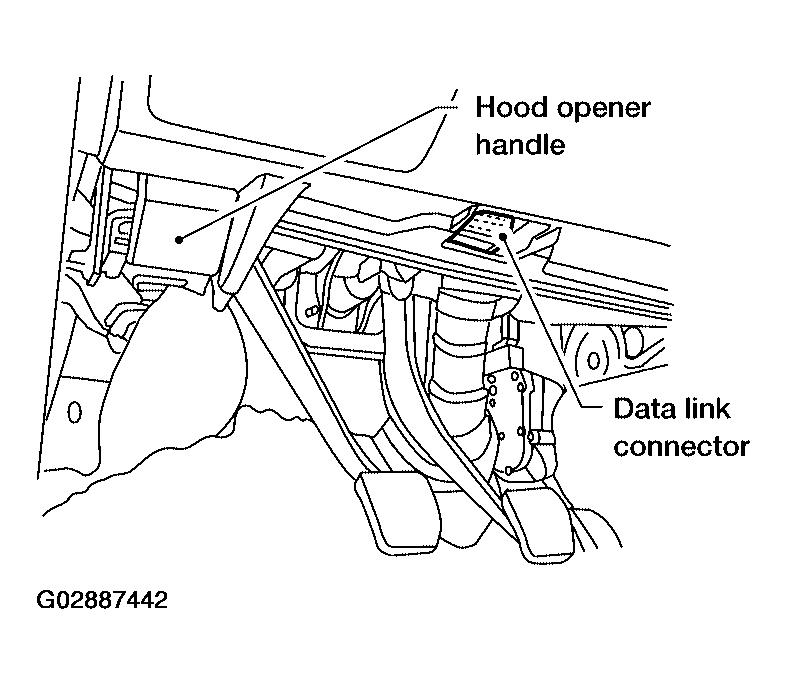

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Touch "START (NISSAN BASED VHCL)" on CONSULT-II screen.

Fig 2: Scan Tool Display "Consult II"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS"

Fig 3: Scan Tool Display "Diagnosis System Selection"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ACTIVE TEST".

Fig 4: Scan Tool Display "Select Diag Mode"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select active test item by touching screen.

Fig 5: Scan Tool Display "Select Test Item"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Carry out the active test by touching screen key.
