Fuel Pump

Disconnect fuel level sensor unit and fuel pump harness connector.

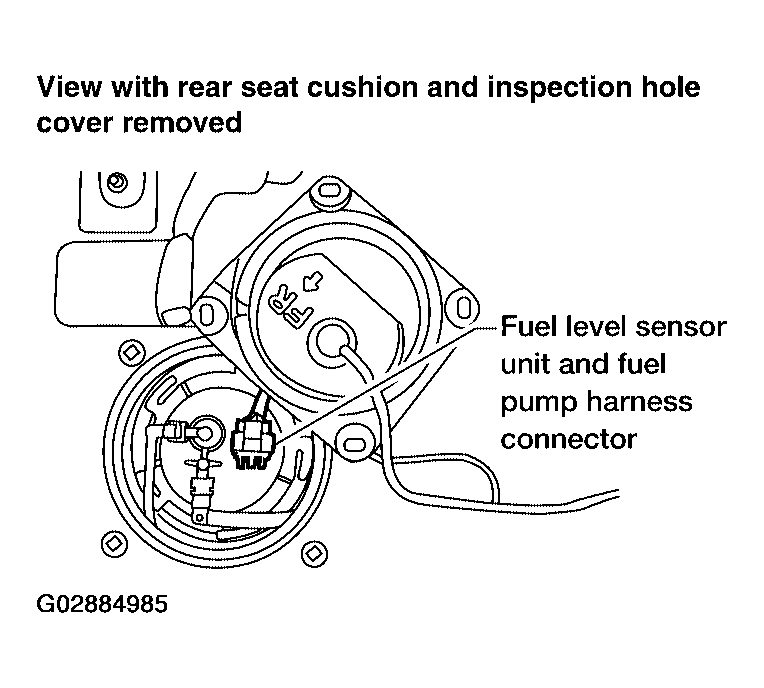

Fig 1: Disconnecting Fuel Level Sensor Unit & Fuel Pump Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Check resistance between fuel level sensor unit and fuel pump terminals 1 and 3 .
Resistance: 0.2 - 5.0Ω [at 25°C (77°F)]

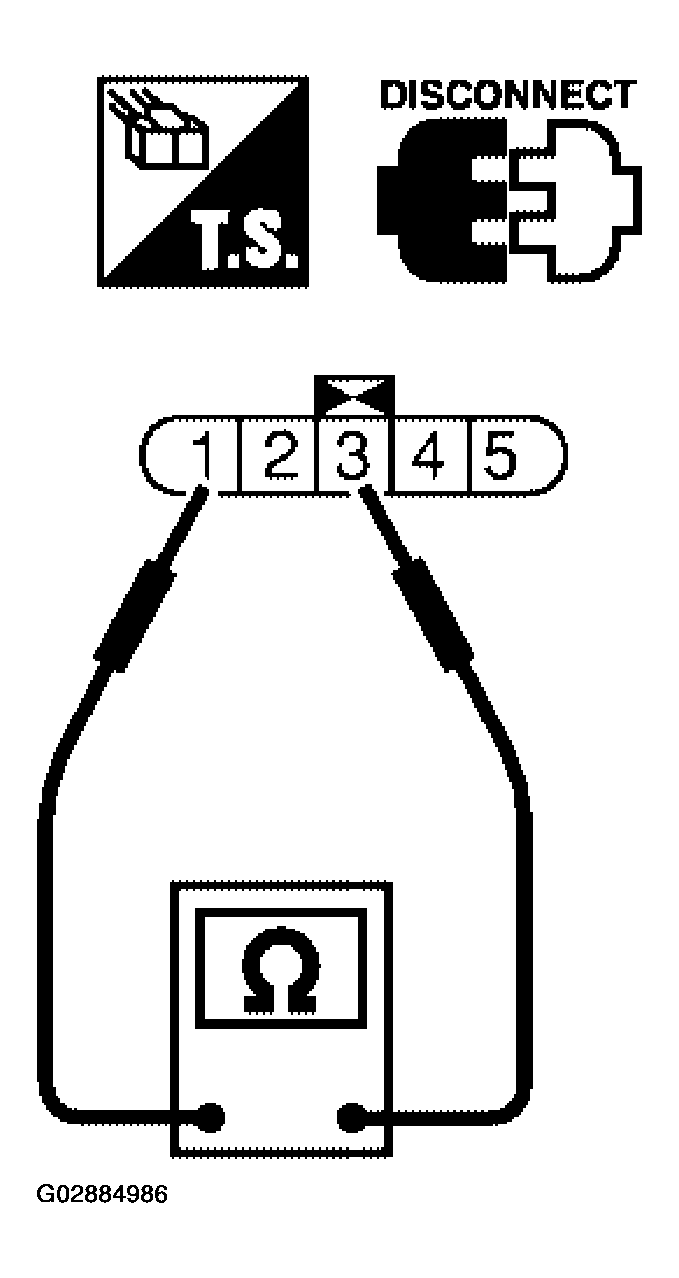

Fig 2: Checking Resistance Between Fuel Level Sensor Unit & Fuel Pump Terminals 1 & 3
Courtesy of NISSAN MOTOR CO., U.S.A.
