Ignition Timing

WARNING: This page is about a different variant/trim than selected.

Any of following two methods may be used.

Method A
- Attach timing light to No. 1 ignition coil harness.

  Fig 1: Attaching Timing Light To No. 1 Ignition Coil Harness
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Check ignition timing.

  Fig 2: Checking Ignition Timing
  Courtesy of NISSAN MOTOR CO., U.S.A.
Method B
- Remove No. 1 ignition coil.

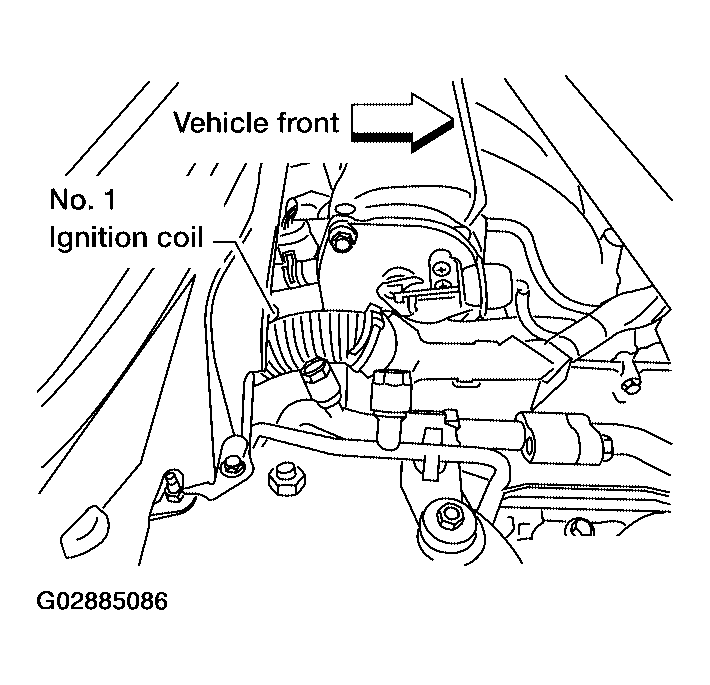

  Fig 3: Removing No. 1 Ignition Coil
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

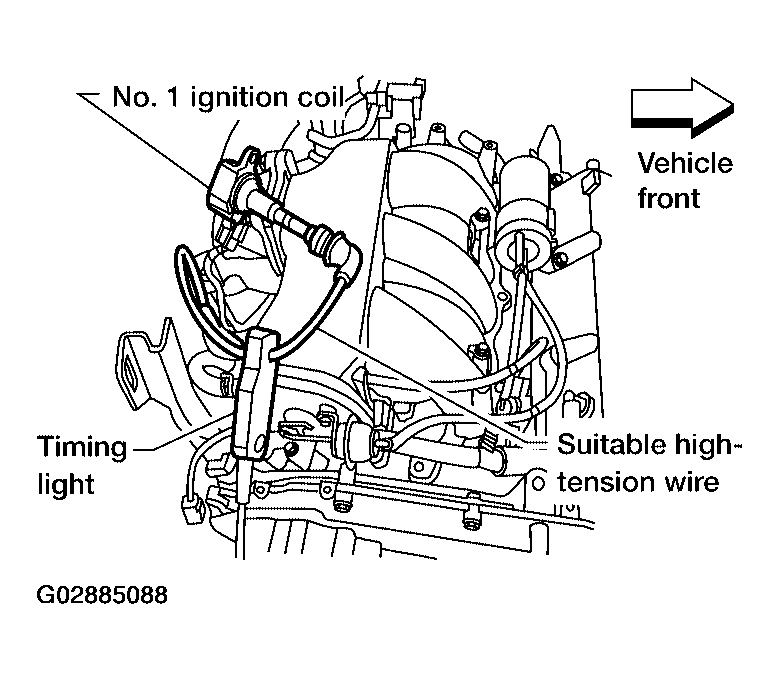

  Fig 4: Connecting No. 1 Ignition Coil And No. 1 Spark Plug
  Courtesy of NISSAN MOTOR CO., U.S.A.

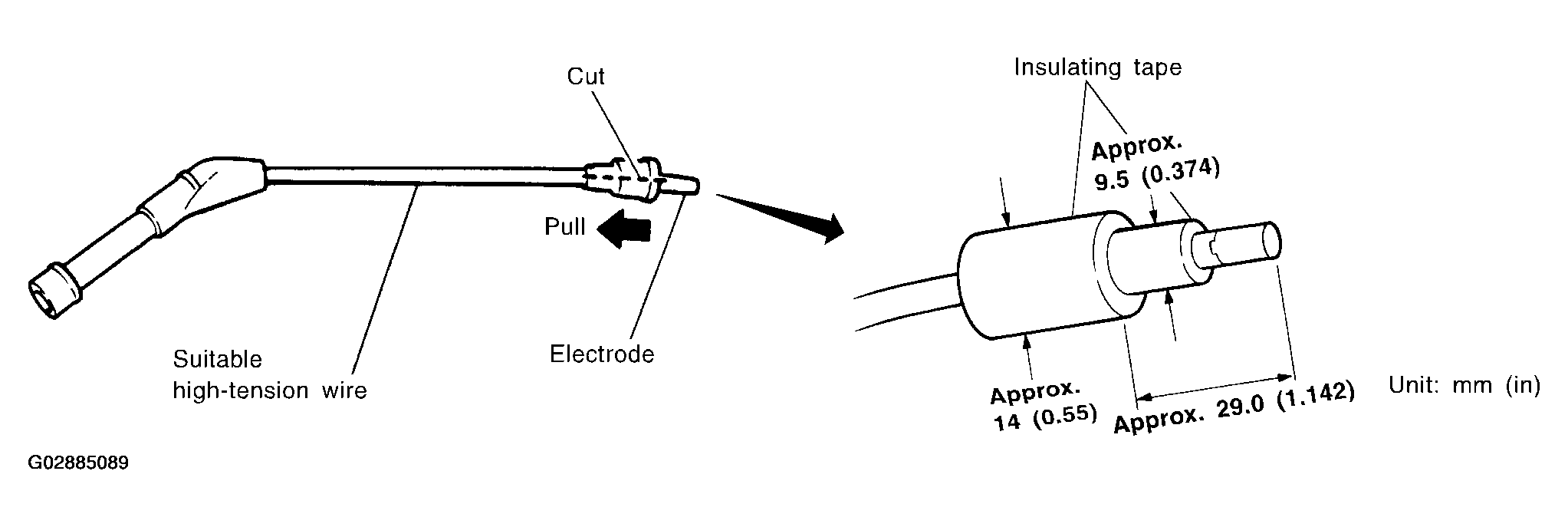

  Fig 5: Identifying High-Tension Wire
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Check ignition timing.

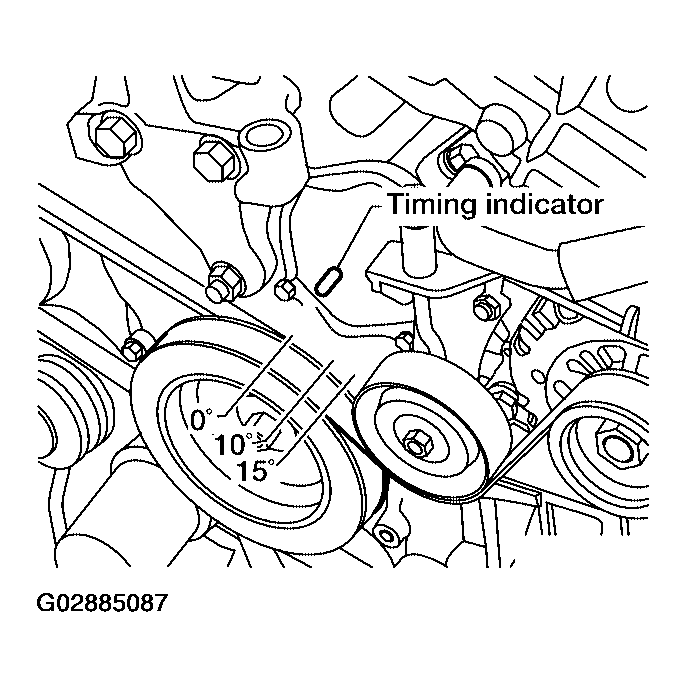

  Fig 6: Checking Ignition Timing
  Courtesy of NISSAN MOTOR CO., U.S.A.
