Vacuum Hose Drawing

WARNING: This page is about a different variant/trim than selected.

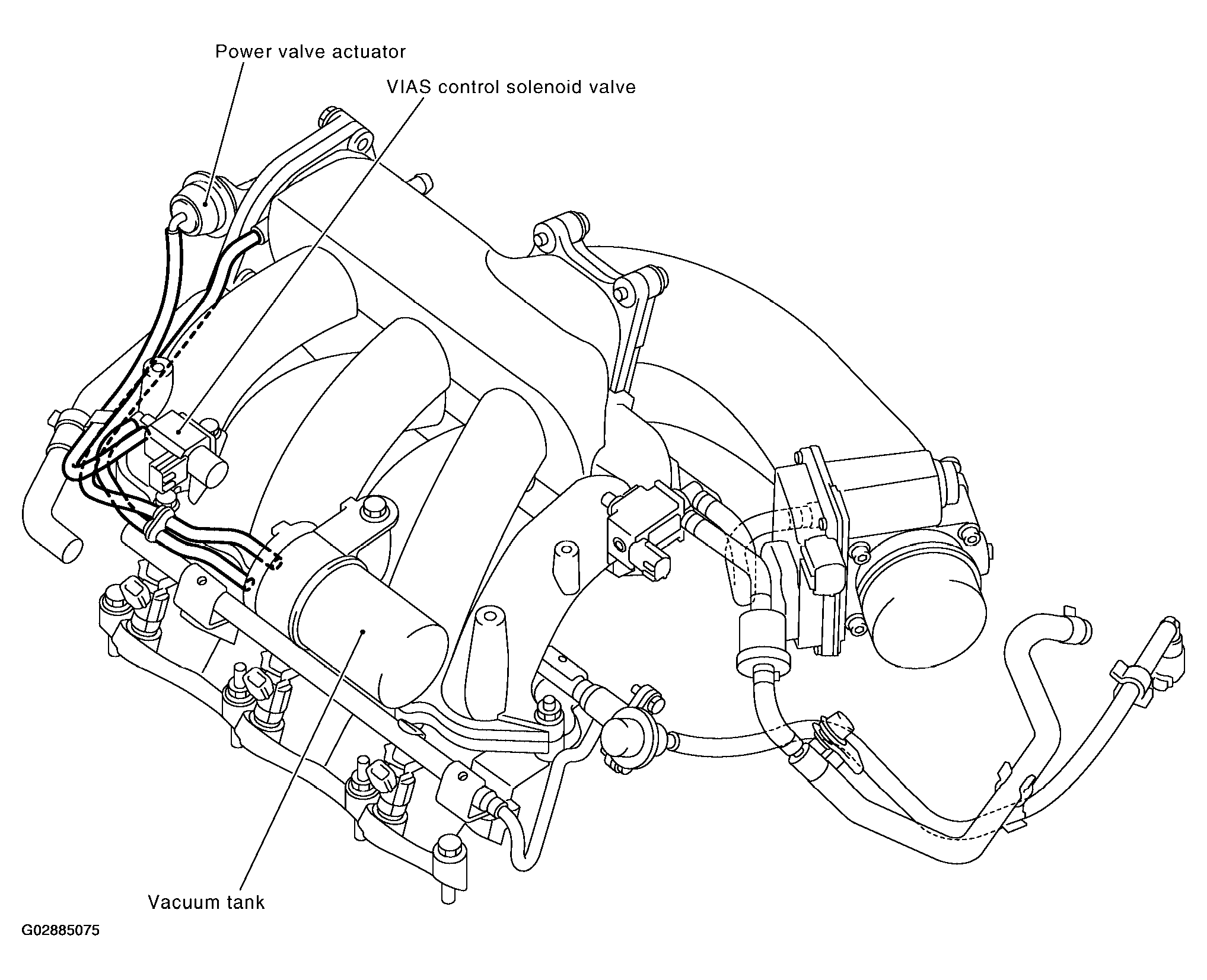

Fig 1: Vacuum Hose Drawing - Engine Control System
G02885075Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to " SYSTEM DIAGRAM  " for Vacuum Control System.
