Generic Scan Tool (GST) Function: Function

WARNING: This page is about a different variant/trim than selected.

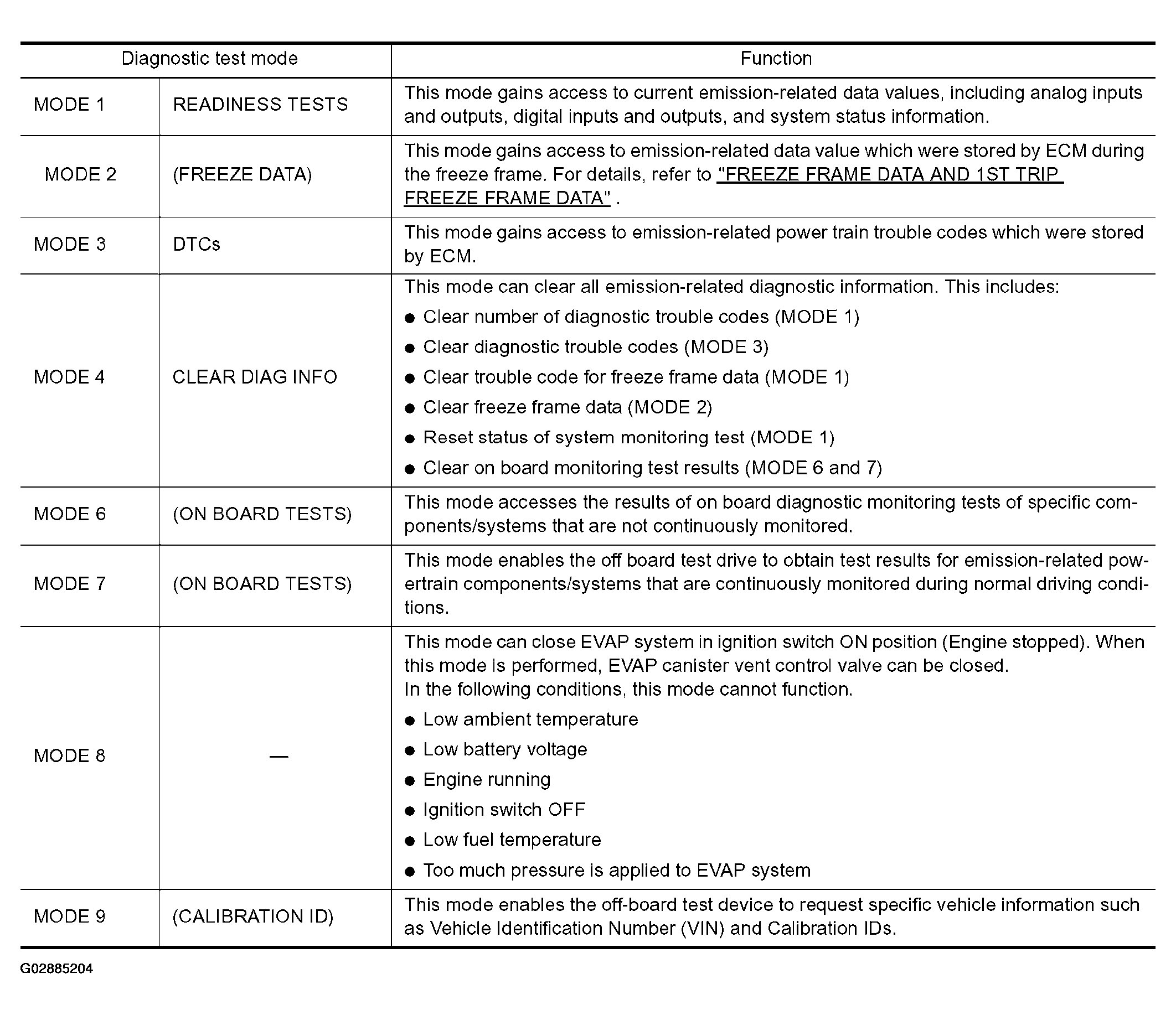

Fig 1: Diagnostic Test Mode Function Chart

G02885204

Courtesy of NISSAN MOTOR CO., U.S.A.
