A/T Shift Lock System
›
Shift Lock System Electrical Parts Location
Shift Lock System Electrical Parts Location

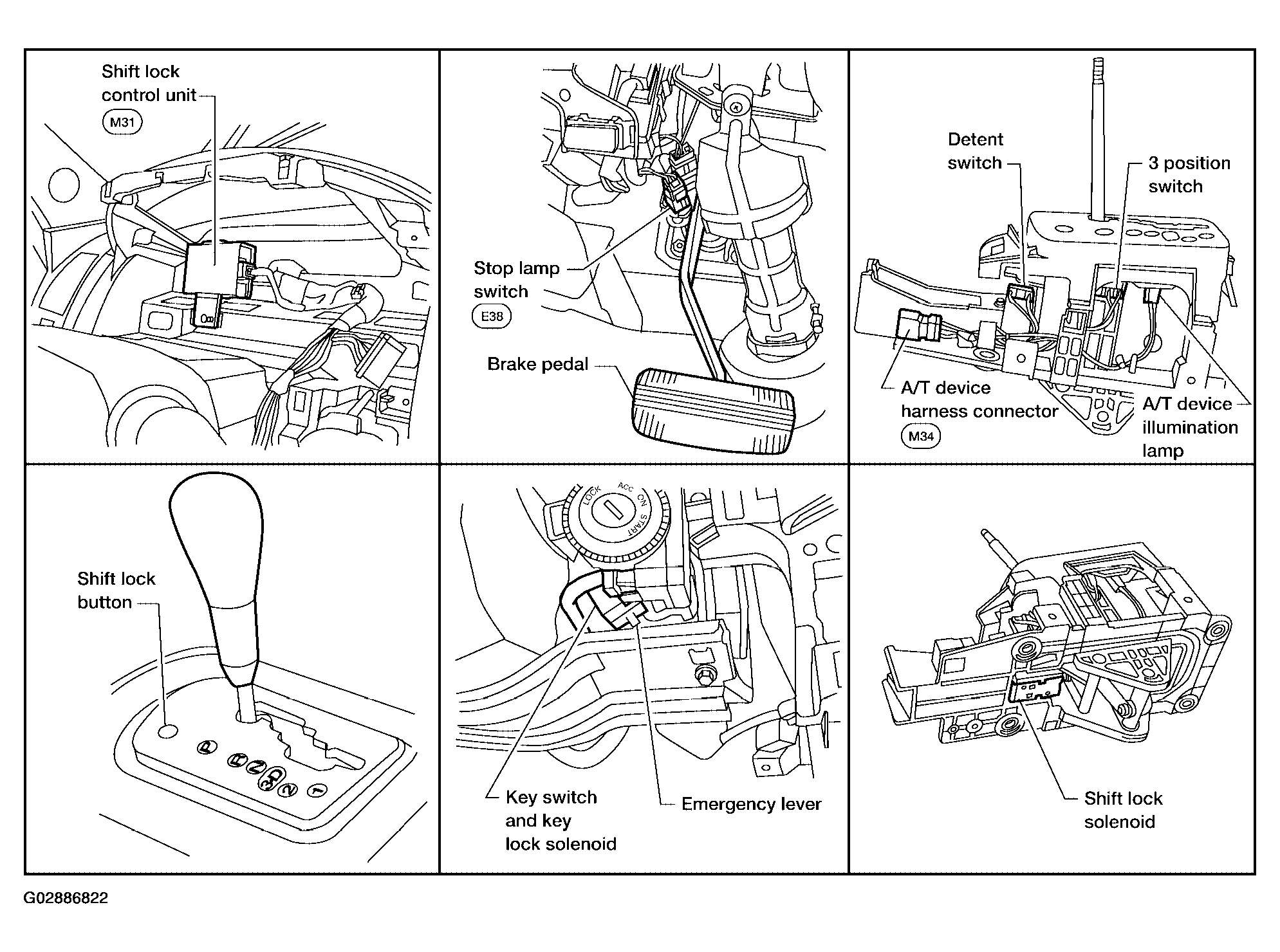

Fig 1: Shift Lock System Electrical Components Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
