DTC P0734 A/T 4TH Gear Function
›
Description
›
Consult-II Reference Value In Data Monitor Mode
Consult-II Reference Value In Data Monitor Mode
Remarks: Specification data are reference values.

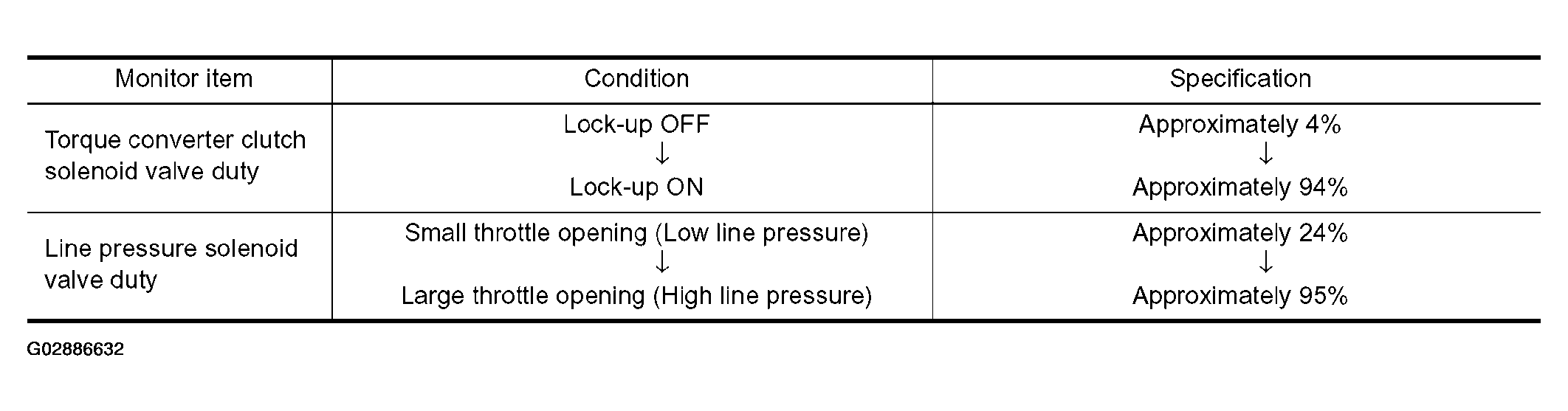

Fig 1: Consult-II Reference Value In Data Monitor Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
