Circuit Diagram
Circuit Diagram

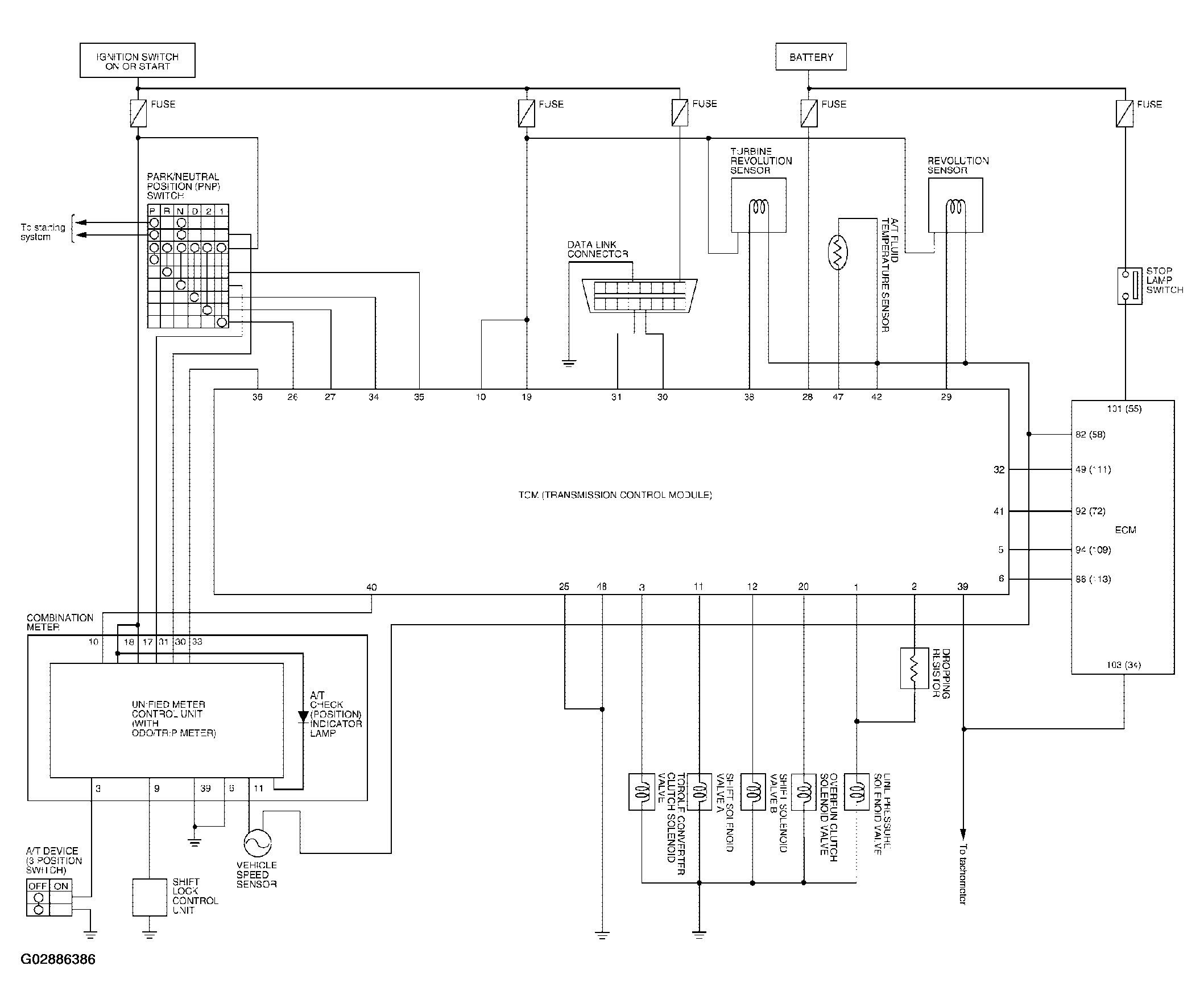

Fig 1: A/T Electrical Parts Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
