Input/Output Signal Of TCM

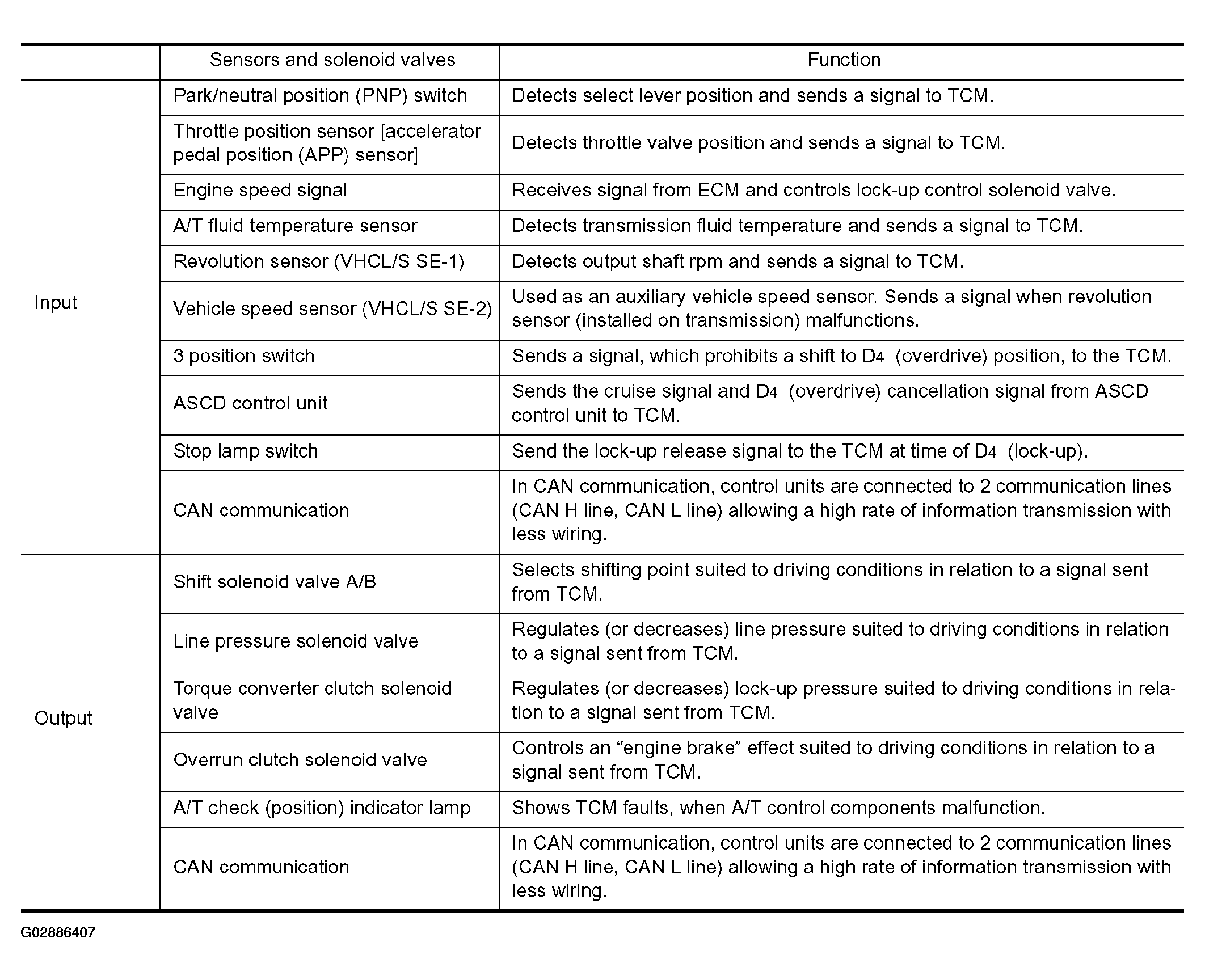

Fig 1: Input/Output Signal Of TCM Specifications Table
Courtesy of NISSAN MOTOR CO., U.S.A.
