Control Valve Assembly: Components

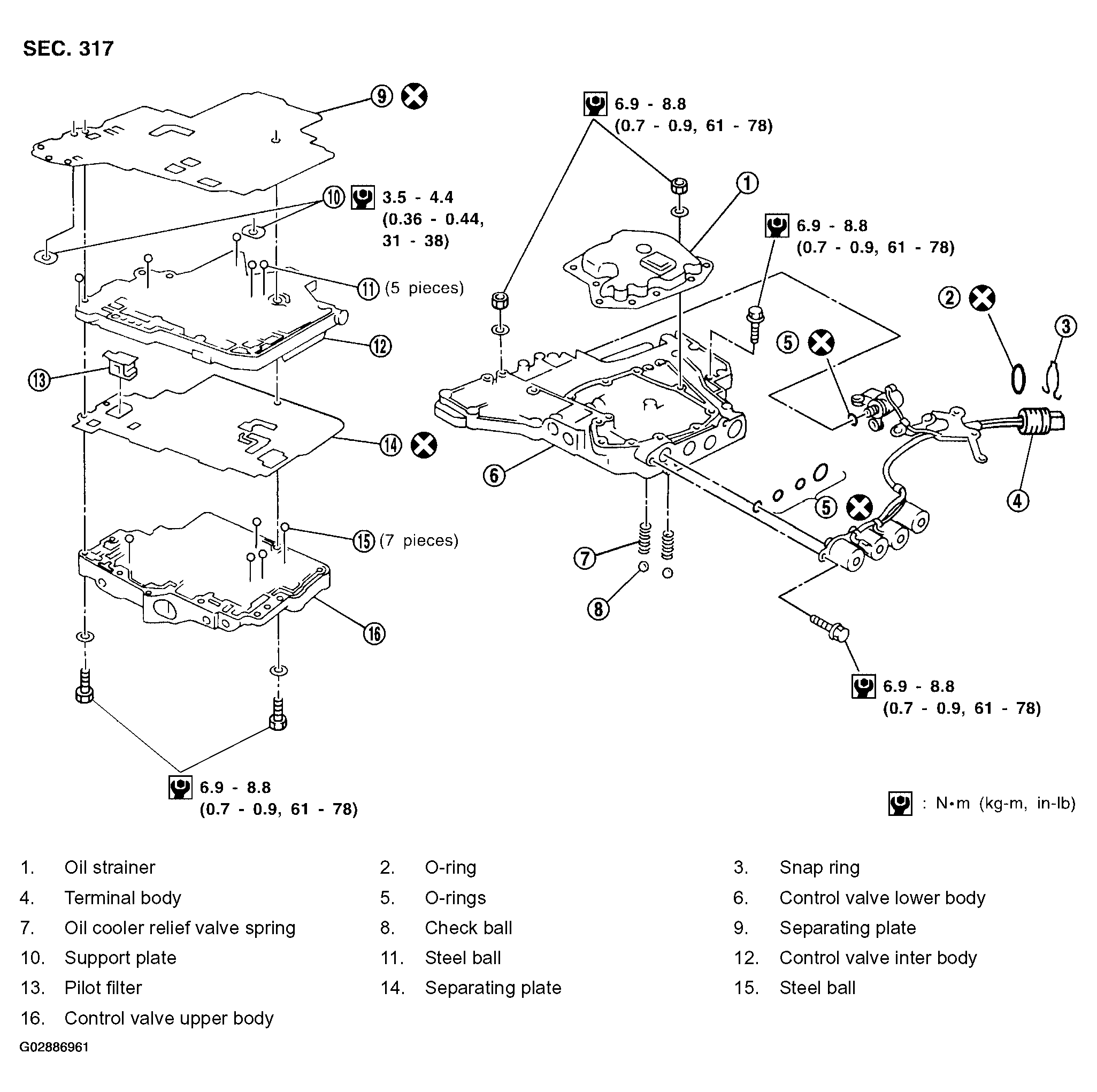

Fig 1: Exploded View Of Control Valve Assembly Components & Torque Specifications
G02886961Courtesy of NISSAN MOTOR CO., U.S.A.
