Manual Shaft
›
Components
Manual Shaft: Components

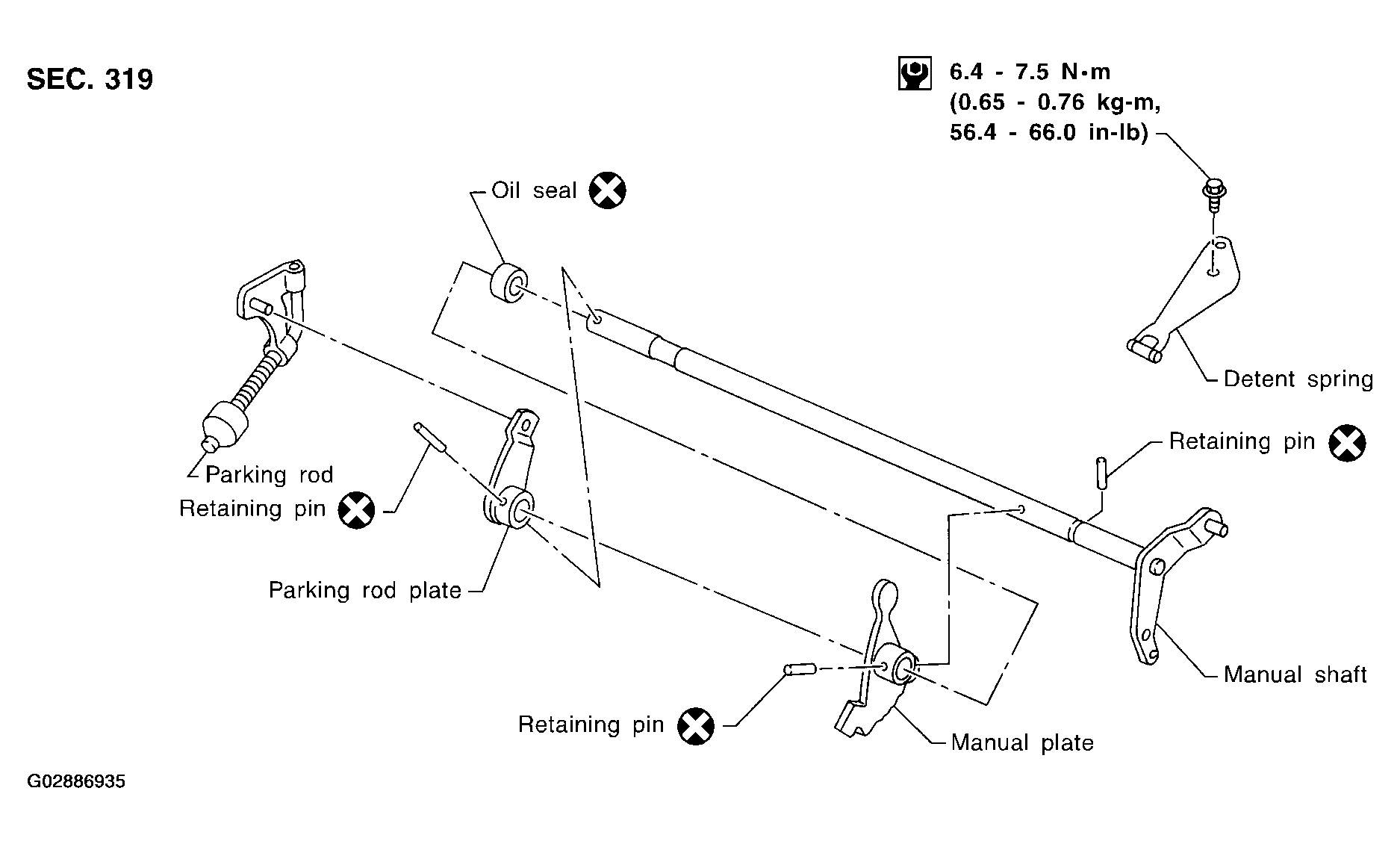

Fig 1: Exploded View Of Manual Shaft Components & Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
