Nissan-Datsun
›
2004
›
Altima Base, Standard
›
Repair and Diagnosis (Single Page)
›
Engine Performance
›
Engine Control System - 2.5L
›
DTC P0102, P0103: MAF Sensor
›
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

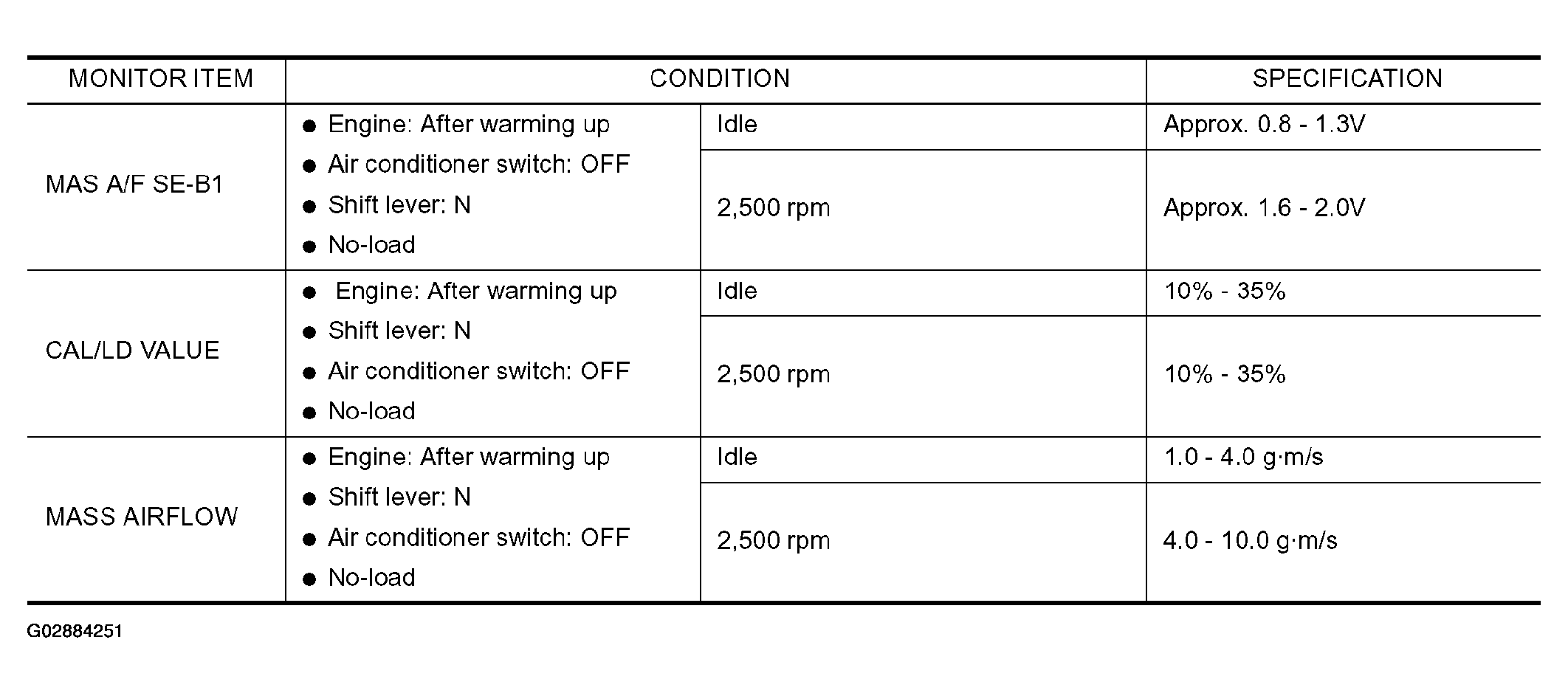

Fig 1: Specification Data & Reference Values
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
