Data Monitor Mode

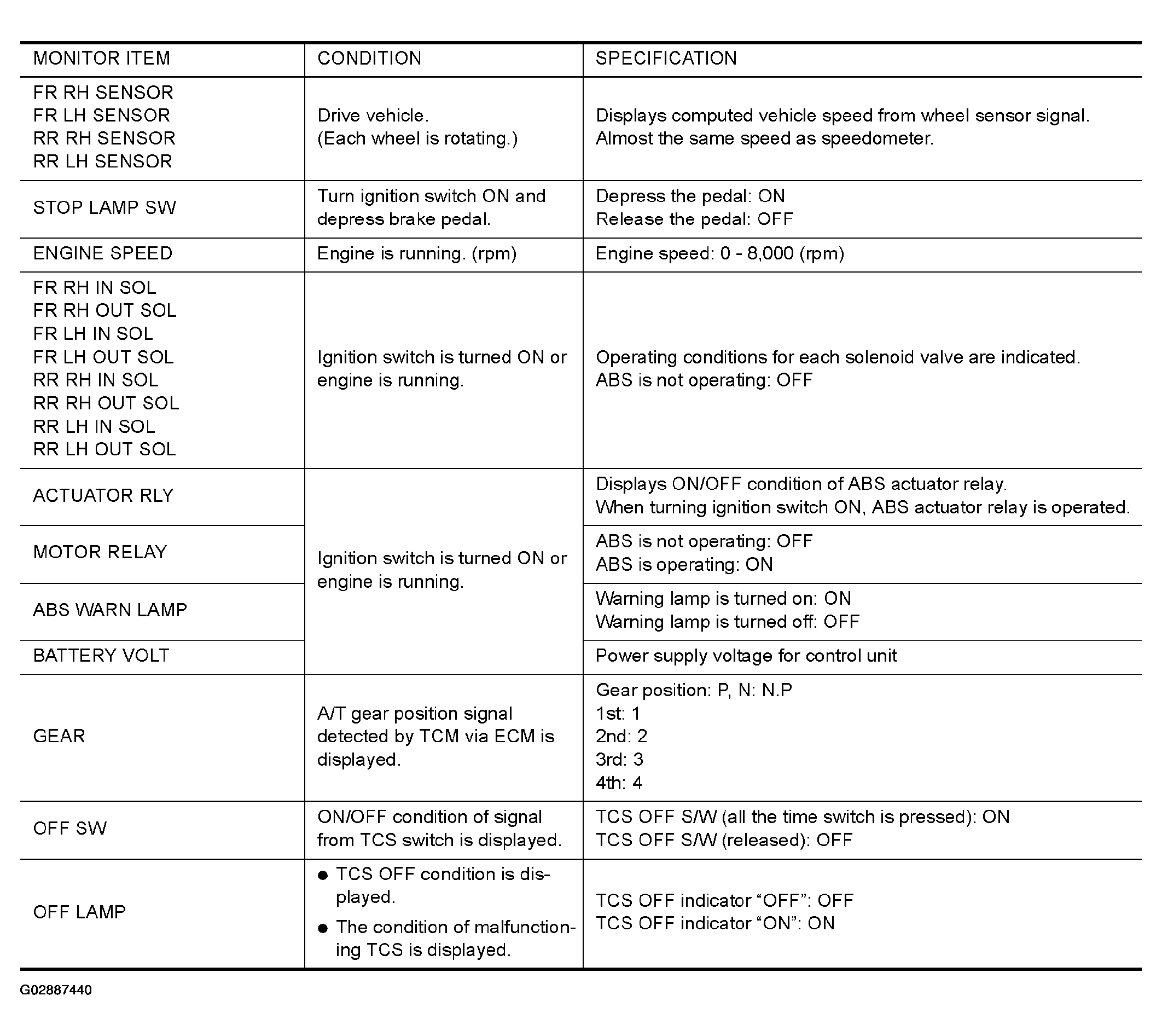

Fig 1: Data Monitor Mode Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

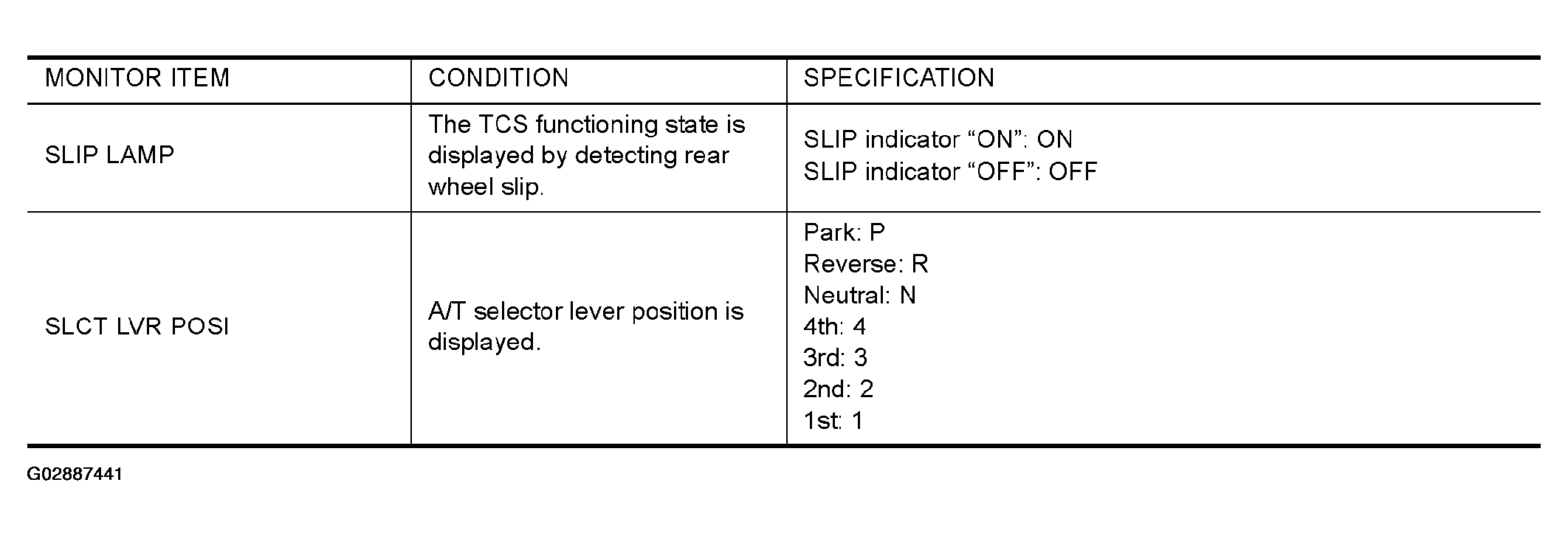

Fig 2: Data Monitor Mode Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
