Nissan-Datsun
›
2004
›
Altima Base, Standard
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System - 2.5L
›
DTC P1217: Engine Over Temperature
›
Wiring Diagram
DTC P1217: Engine Over Temperature: Wiring Diagram

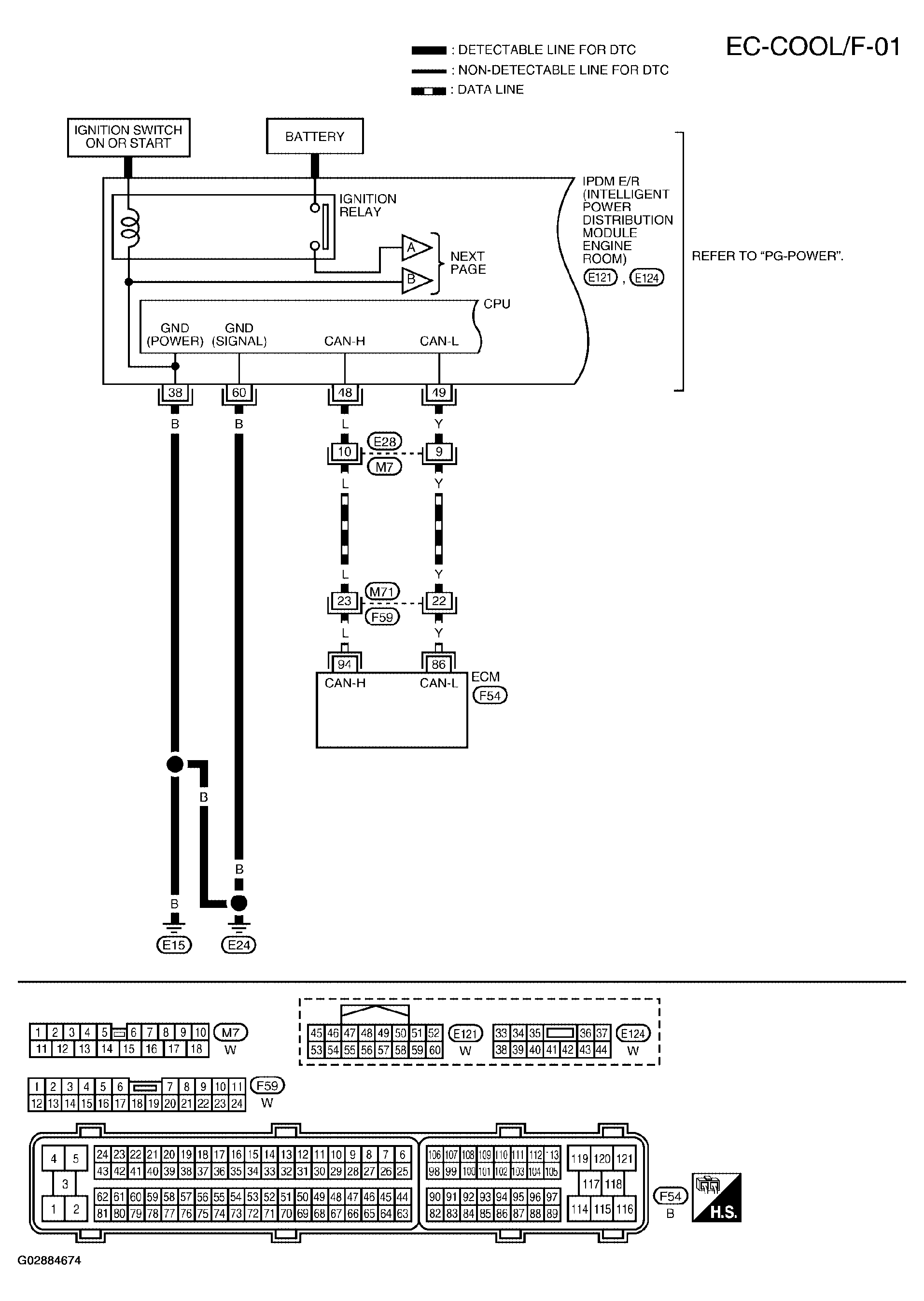

Fig 1: Wiring Diagram - EC-COOL/F-01
Courtesy of NISSAN MOTOR CO., U.S.A.

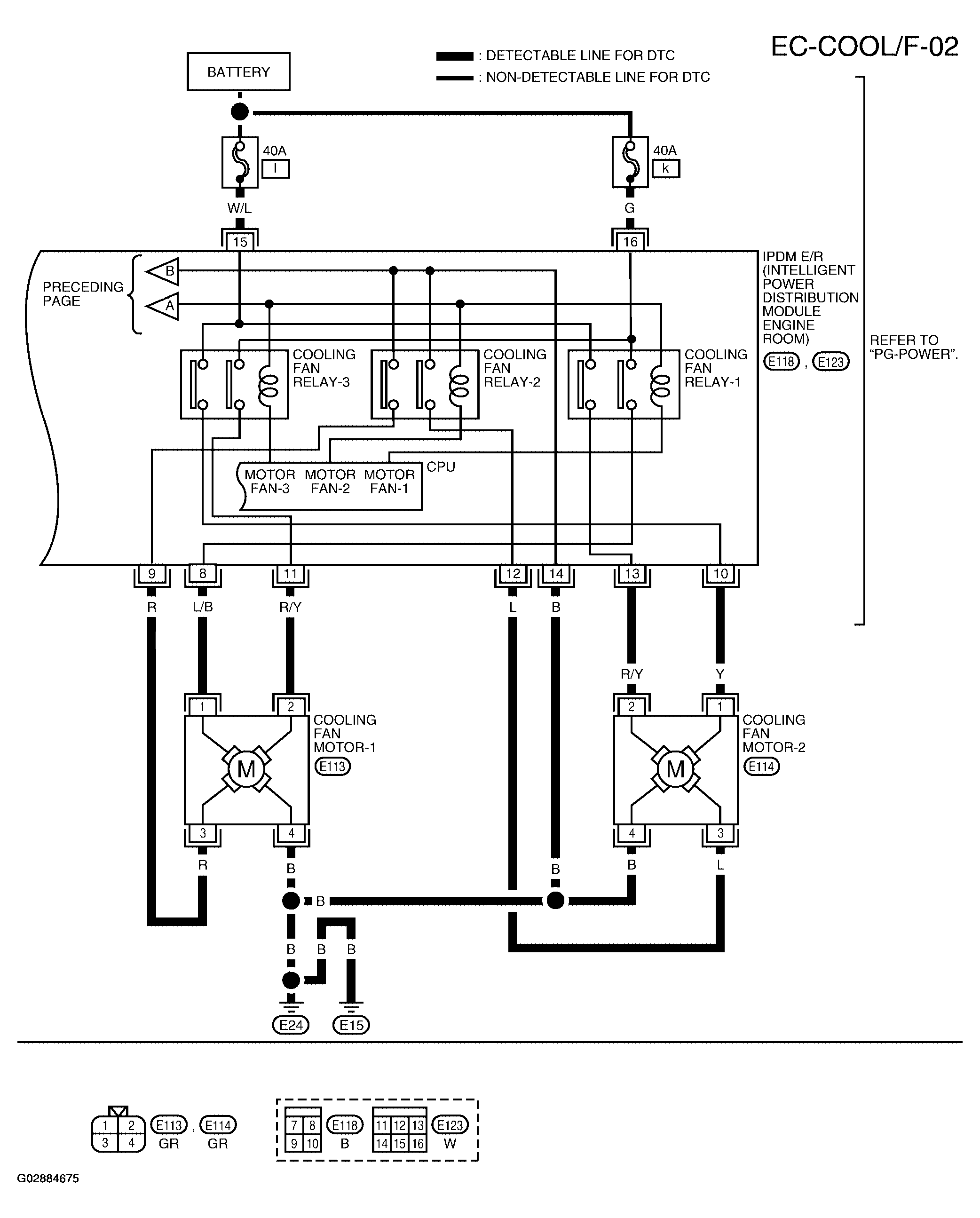

Fig 2: Wiring Diagram - EC-COOL/F-02
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
