Section 8 (Automatic Transaxle)
›
Overall System
›
Control Mechanism
›
Overrun Clutch Control (Engine Brake Control)
›
Overrun Clutch Operating Conditions
Overrun Clutch Operating Conditions
WARNING:
This page is about a different variant/trim than selected.

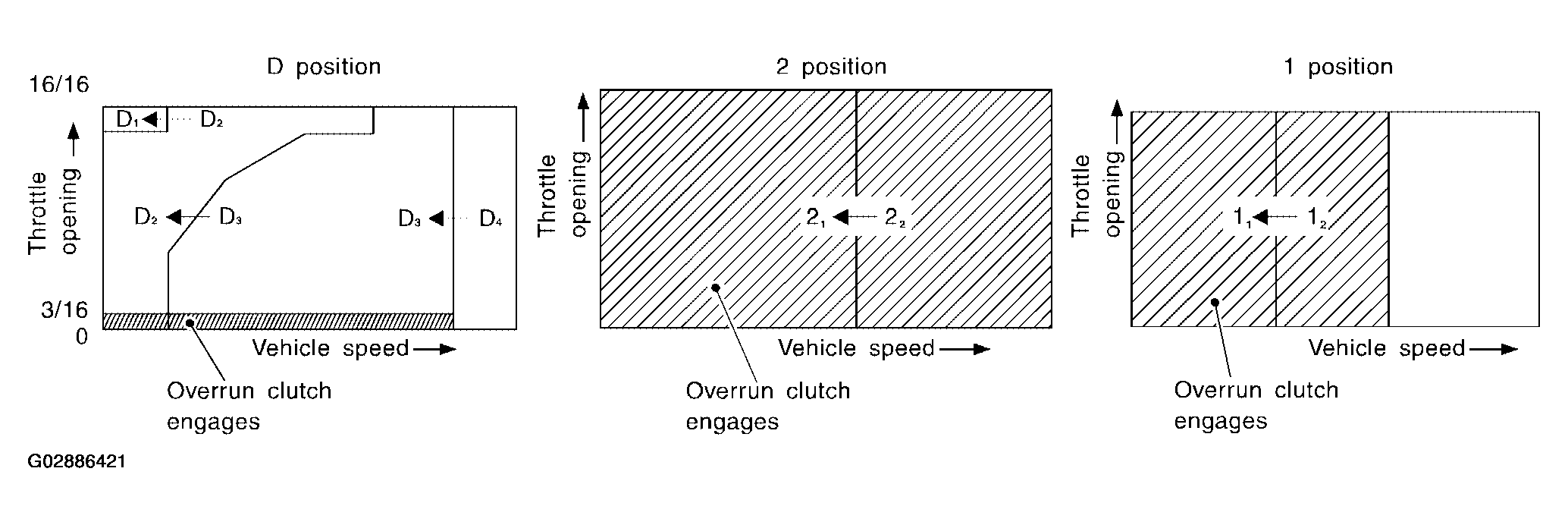

Fig 1: Overrun Clutch Operating Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Overrun Clutch Operating Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
