Section 8 (Automatic Transaxle)
›
Overall System
›
Cross-sectional View
Cross-sectional View
WARNING:
This page is about a different variant/trim than selected.

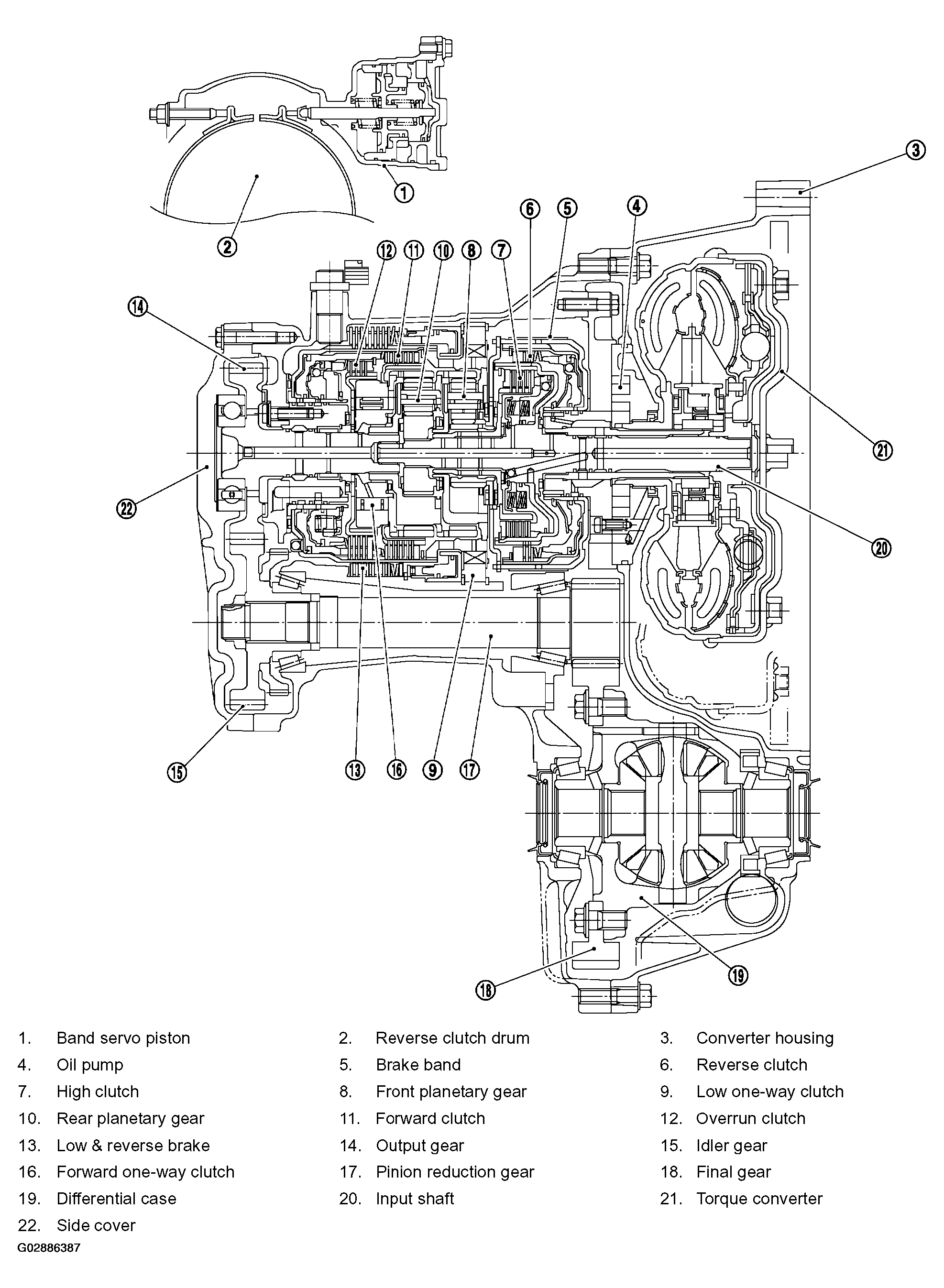

Fig 1: A/T Cross-sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
