DTC P1706: PNP Switch
›
Wiring Diagram
›
At Models
At Models

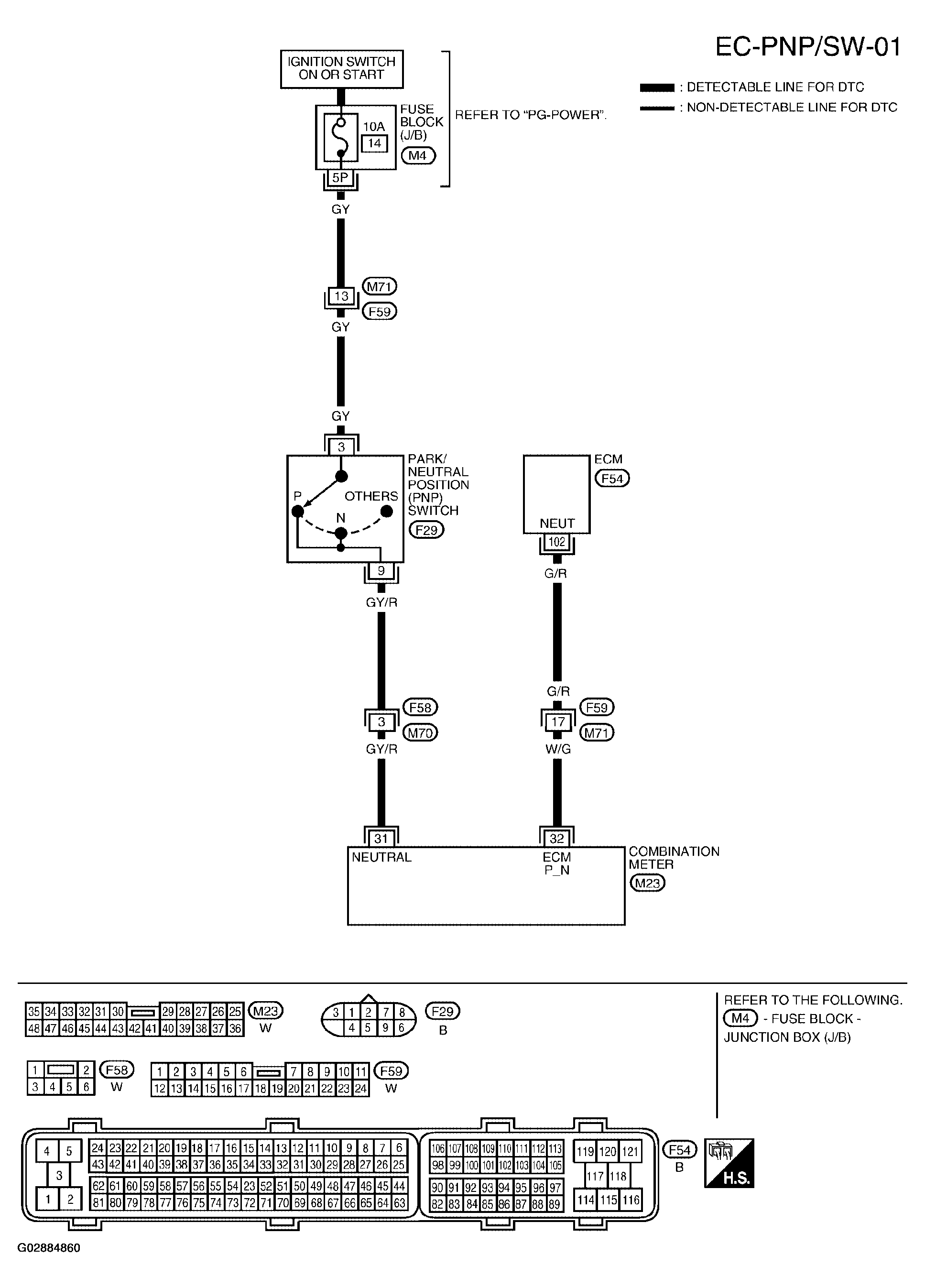

Fig 1: Wiring Diagram - EC-PNP/SW-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
