Transmission
›
Manual Transaxle
›
Description
›
Cross-sectional View
›
Notes
Cross-sectional View: Notes

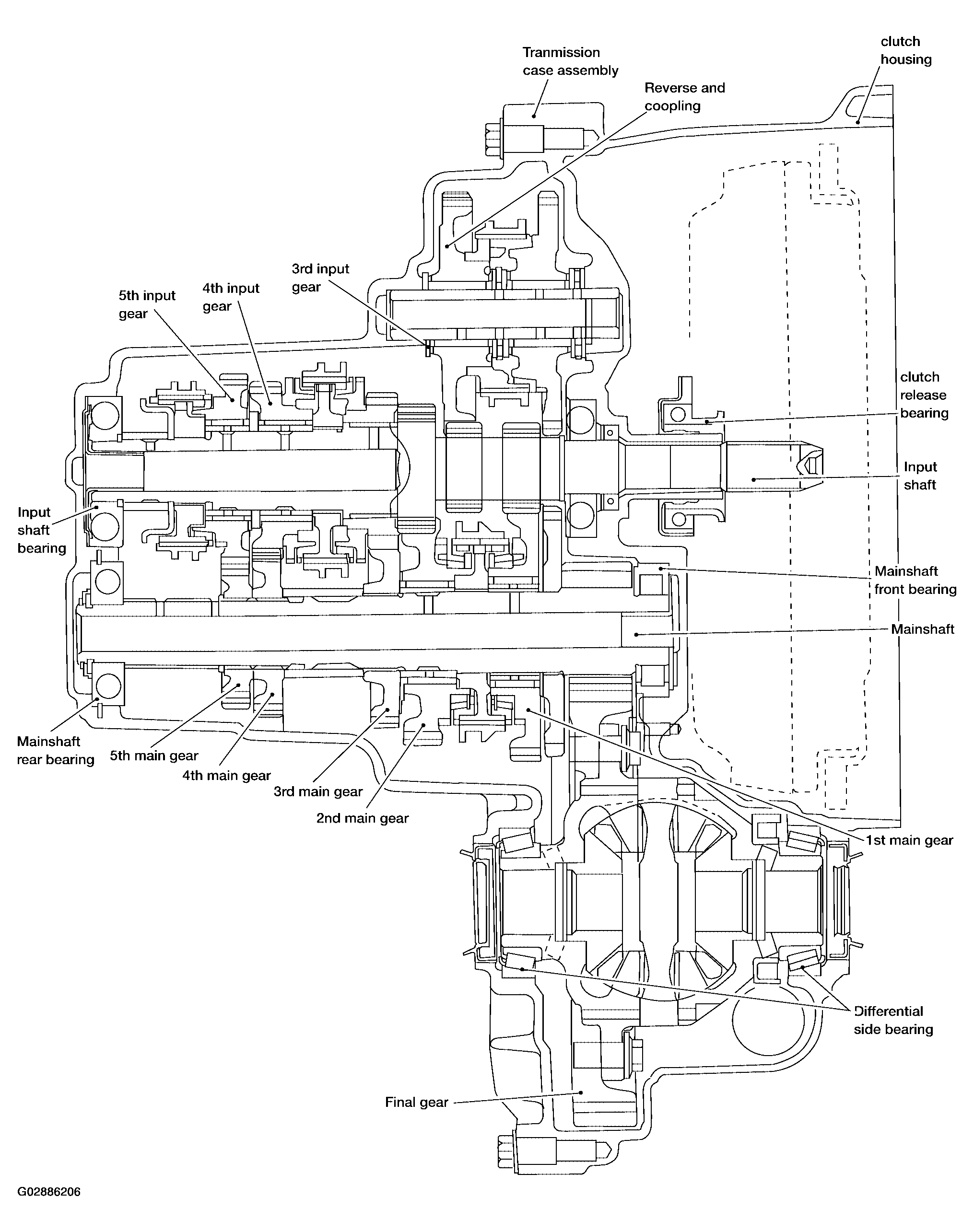

Fig 1: Identifying Manual Transaxle Cross-Sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
