Terminal And Reference Value For Front Power Window And Door Lock/Unlock Switch RH
Terminal And Reference Value For Front Power Window And Door Lock/Unlock Switch RH

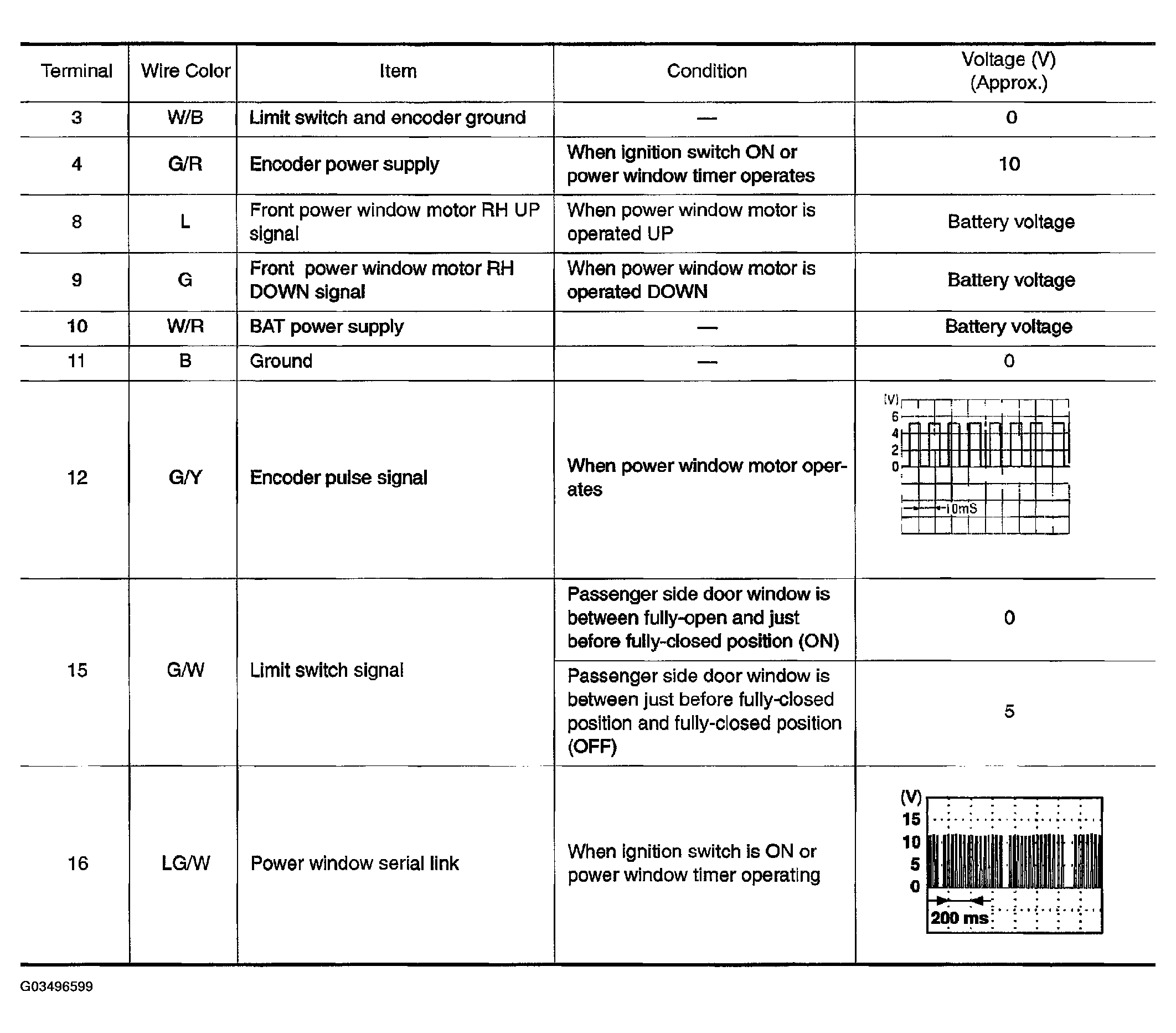

Fig 1: Terminal And Reference Value For Front Power Window And Door Lock/Unlock Switch RH Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
