CONSULT-II Function
›
Consult-II Function Application
Consult-II Function Application

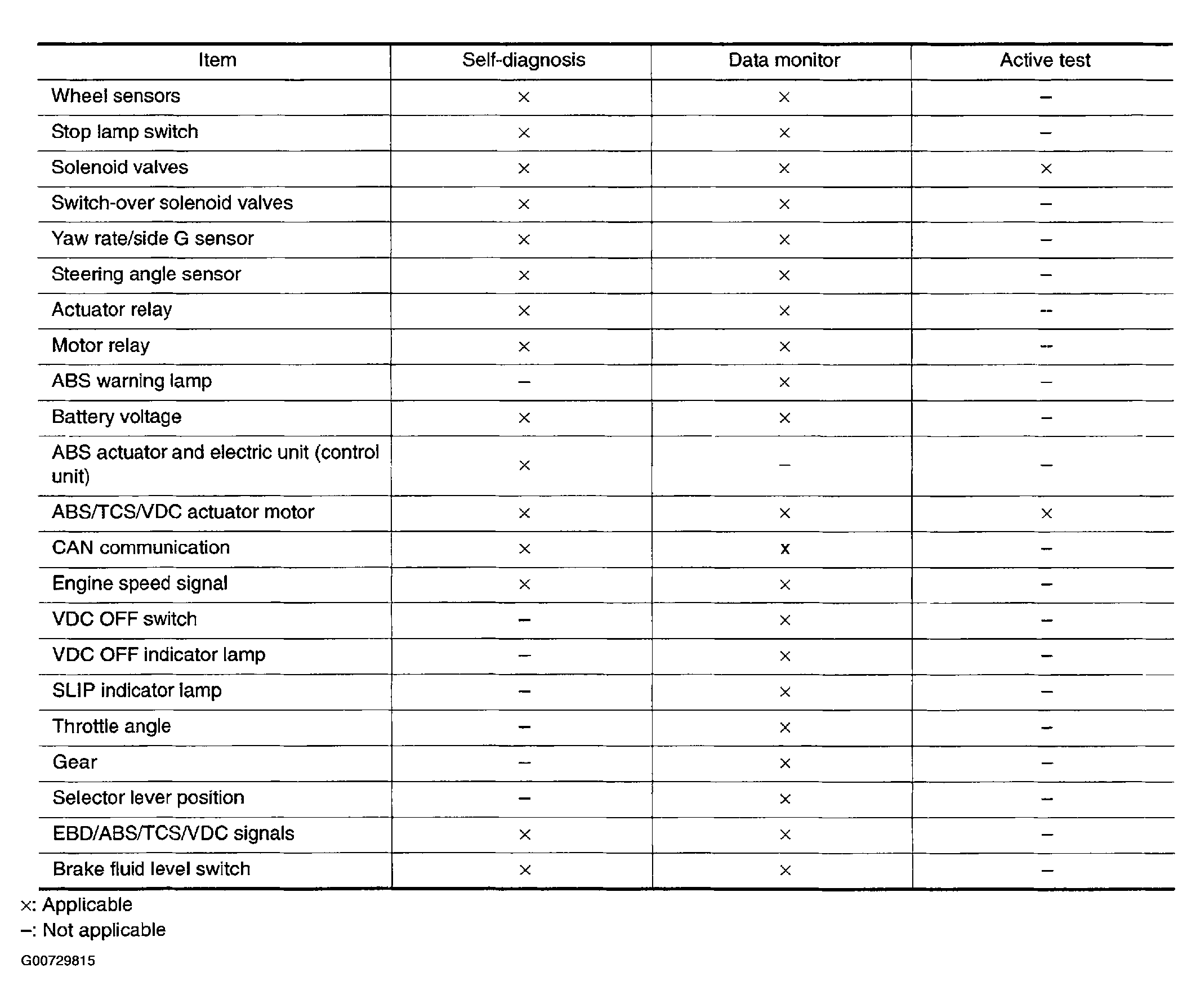

Fig 1: Consult-II Function Application
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
