ASCD Indicator: Wiring Diagram

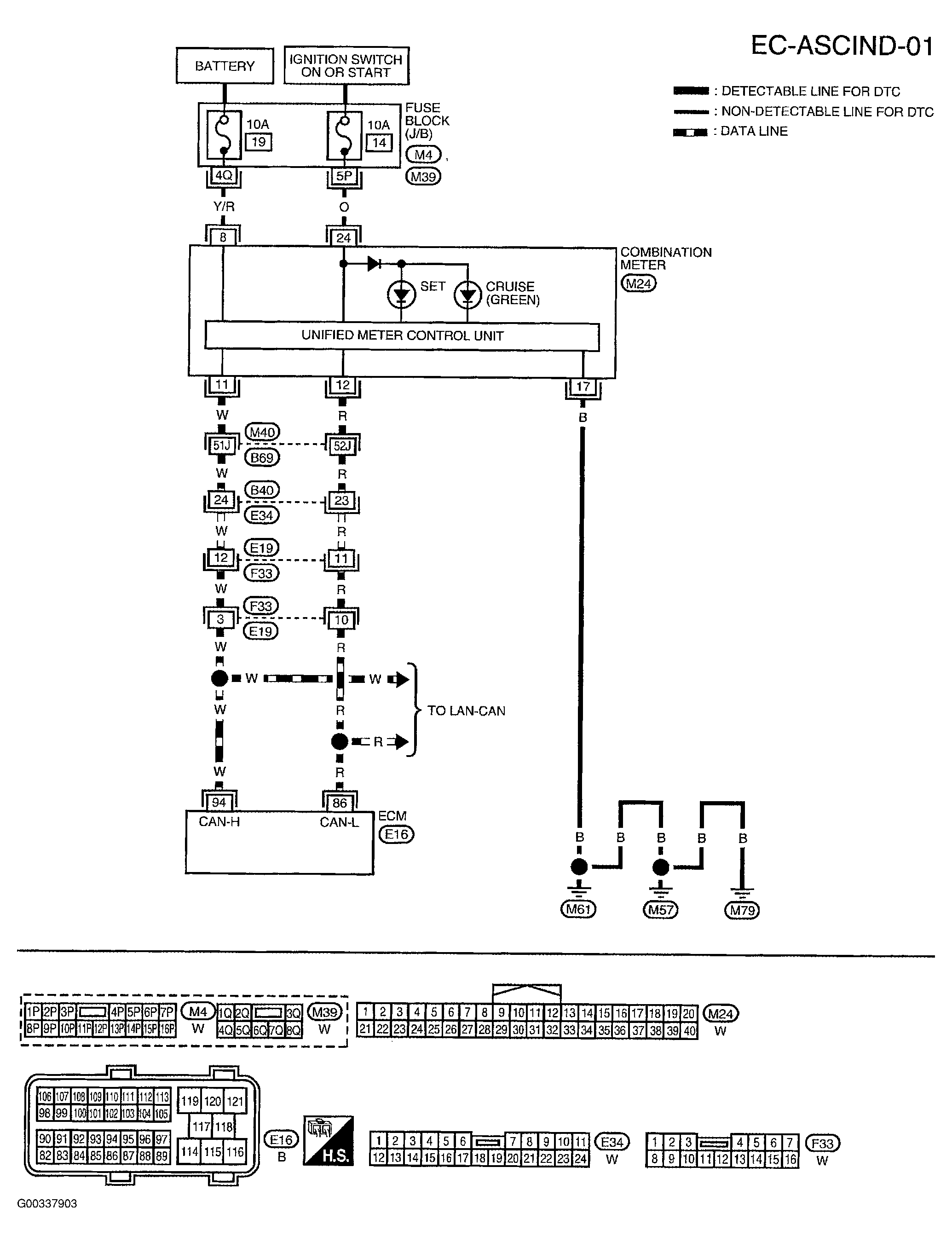

Fig 1: Wiring Diagram - EC-ASCIND-01
G00337903Courtesy of NISSAN MOTOR CO., U.S.A.
