Nissan Torque Demand (NTD) Control System
›
Input/Output Signal Chart
Input/Output Signal Chart

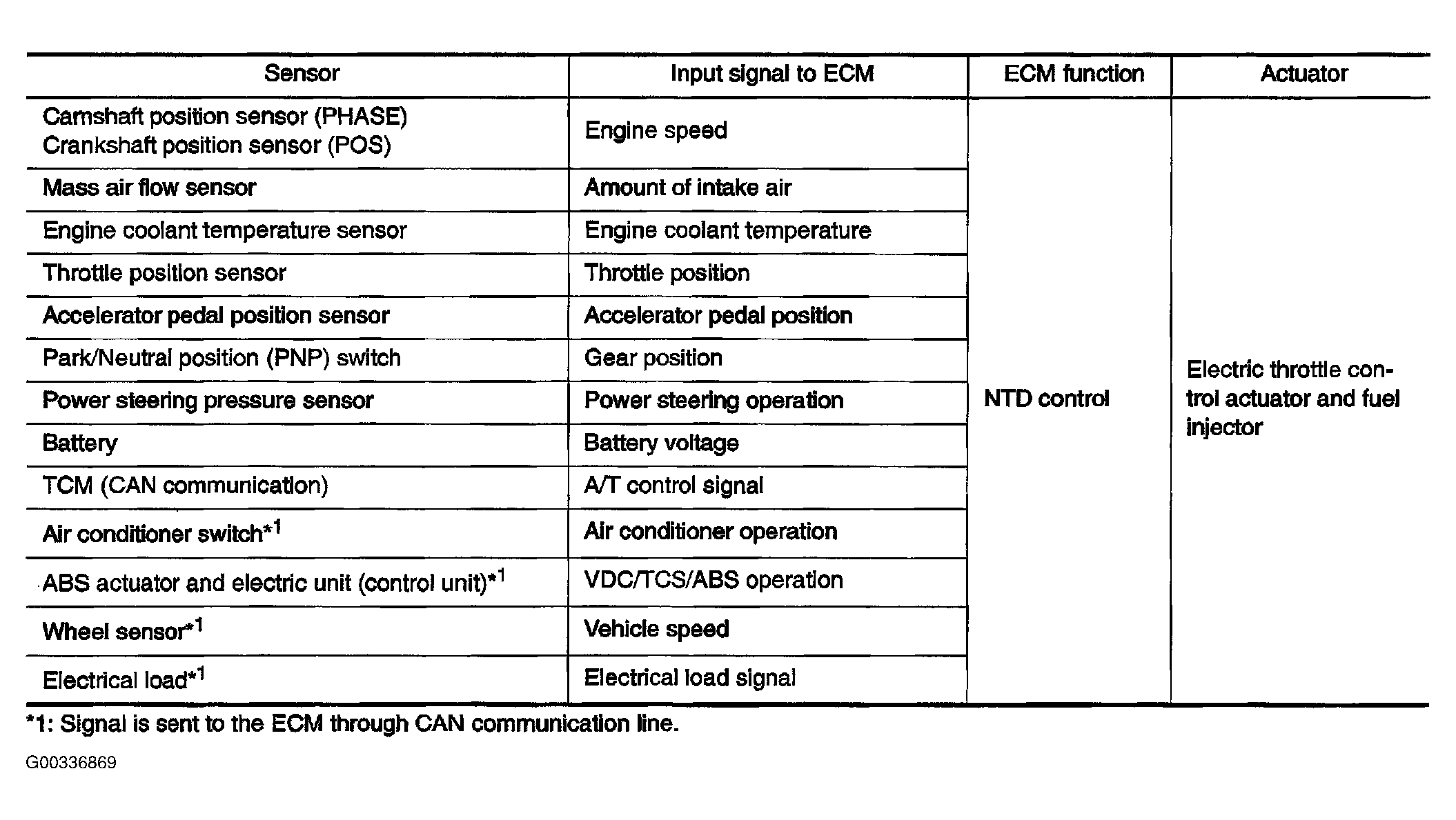

Fig 1: Nissan Torque Demand Control System Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
