FixVault
Home
›
Nissan-Datsun
›
2004
›
Armada LE, 4WD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
System Chart
System Chart

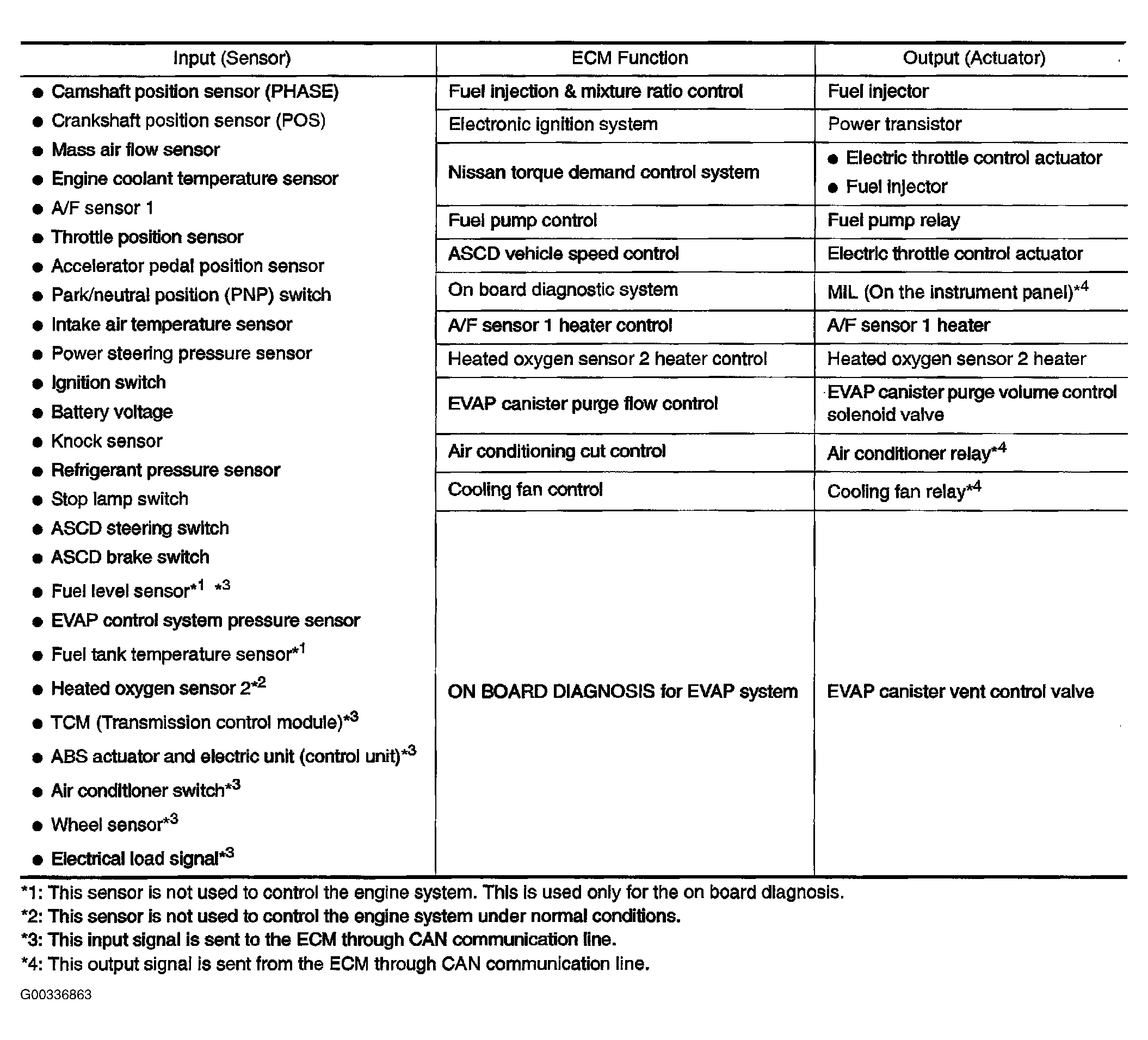

Fig 1: System Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
