Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Mil And Data Link Connector
›
Wiring Diagram
Mil And Data Link Connector: Wiring Diagram

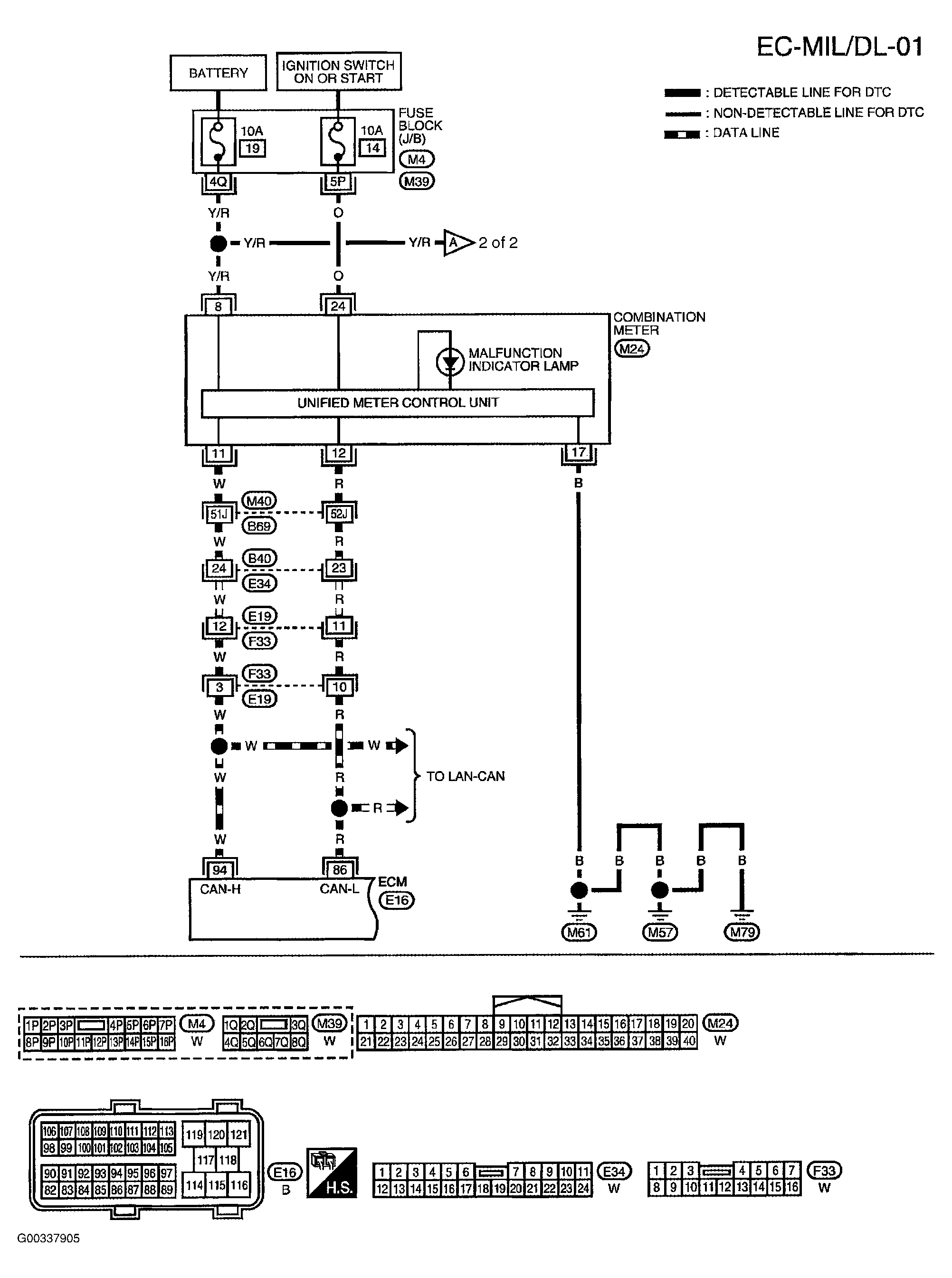

Fig 1: Wiring Diagram - EC-MIL/DL-01
Courtesy of NISSAN MOTOR CO., U.S.A.

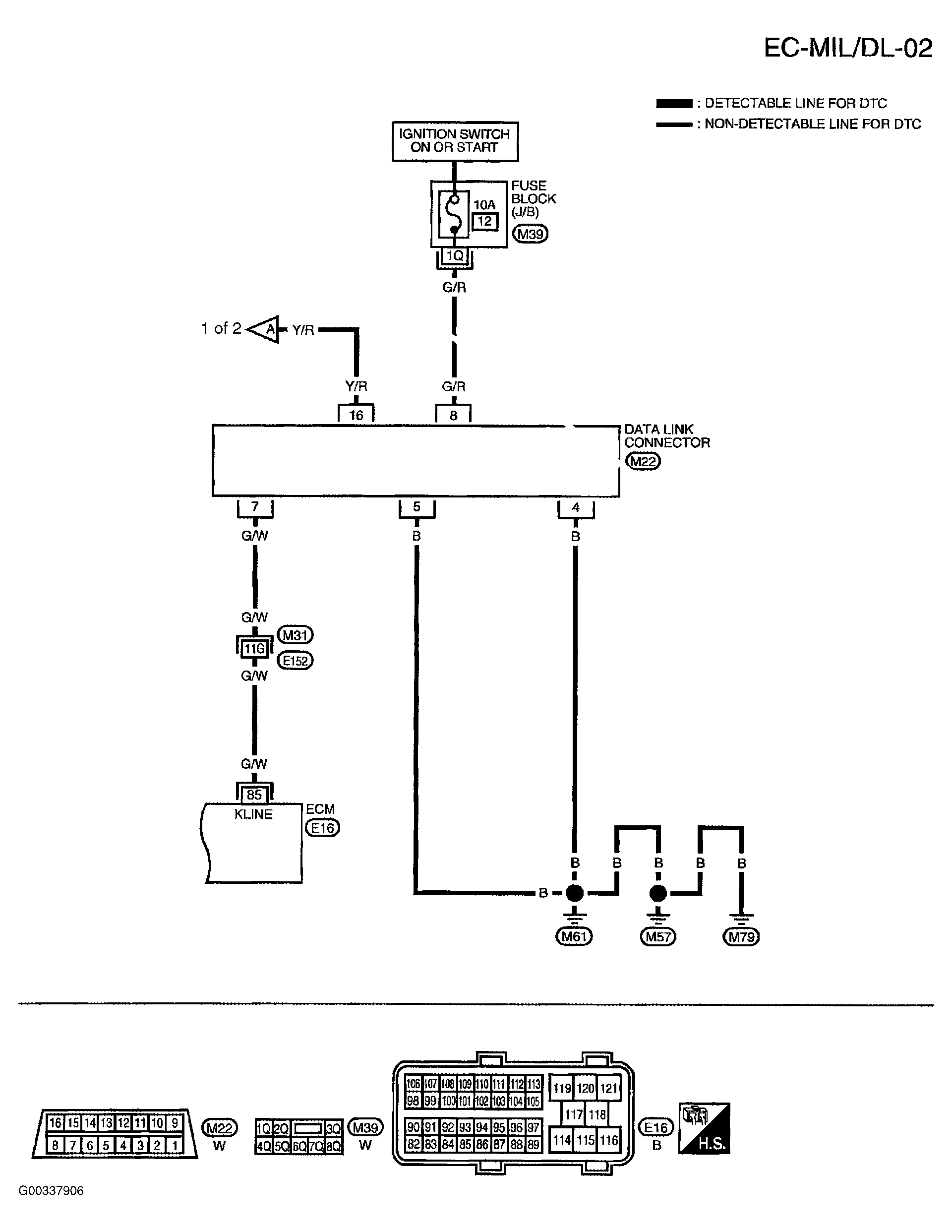

Fig 2: Wiring Diagram - EC-MIL/DL-02
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
