CONSULT-II Reference Value in Data Monitor

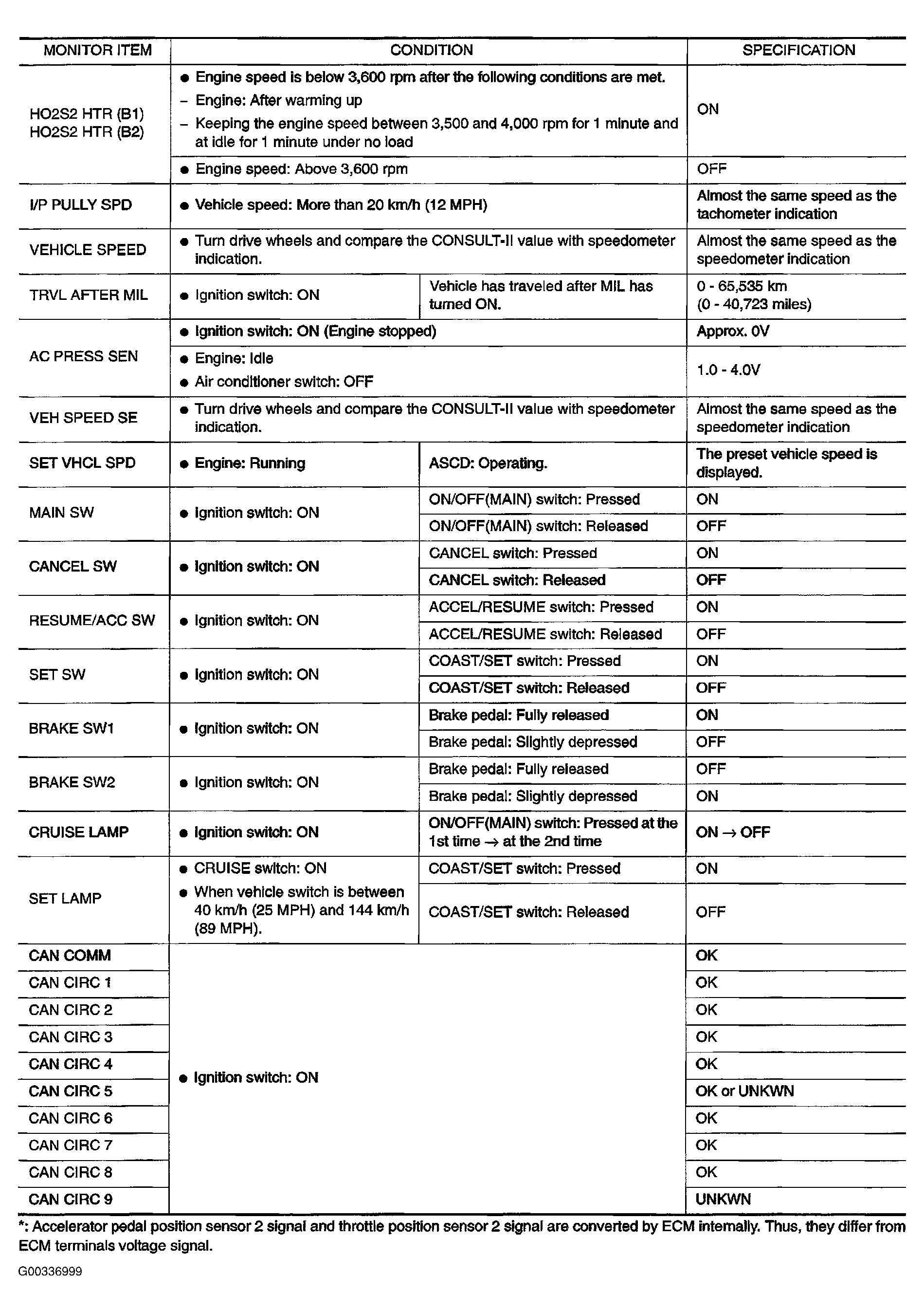

Fig 1: CONSULT-II Reference Value in Data Monitor (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

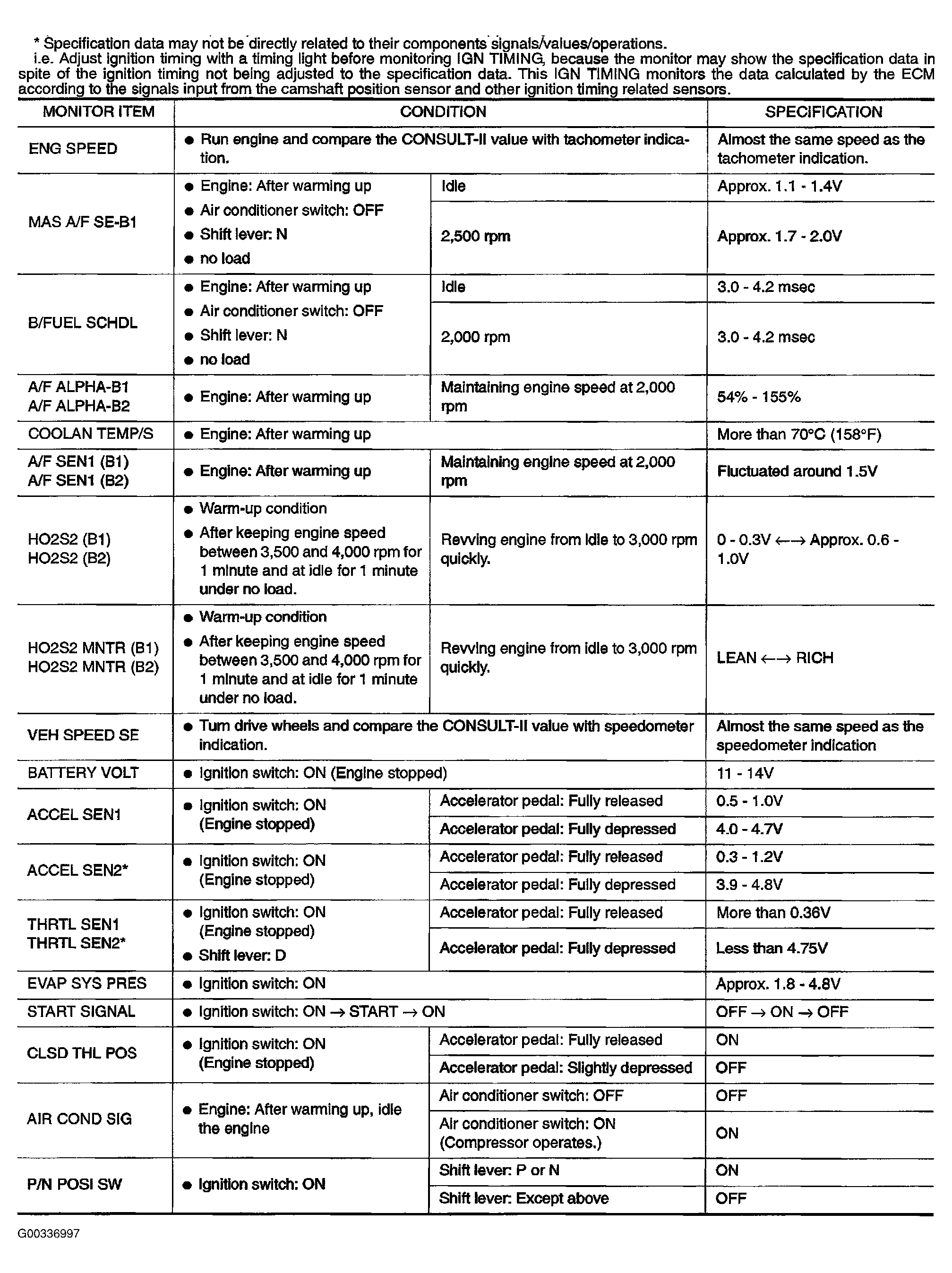

Fig 2: CONSULT-II Reference Value in Data Monitor (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

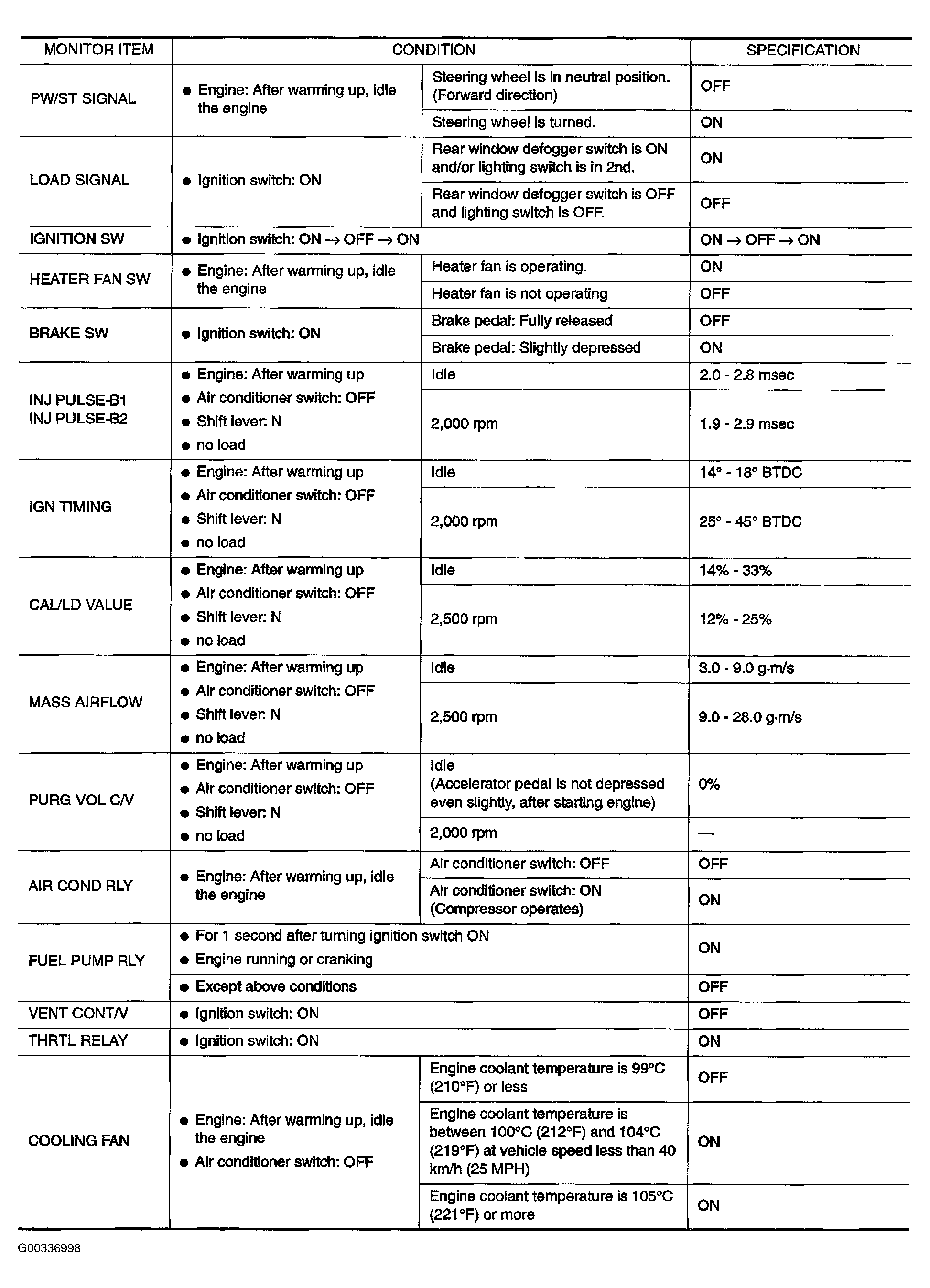

Fig 3: CONSULT-II Reference Value in Data Monitor (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
