Function
Generic Scan Tool (GST) Function: Function

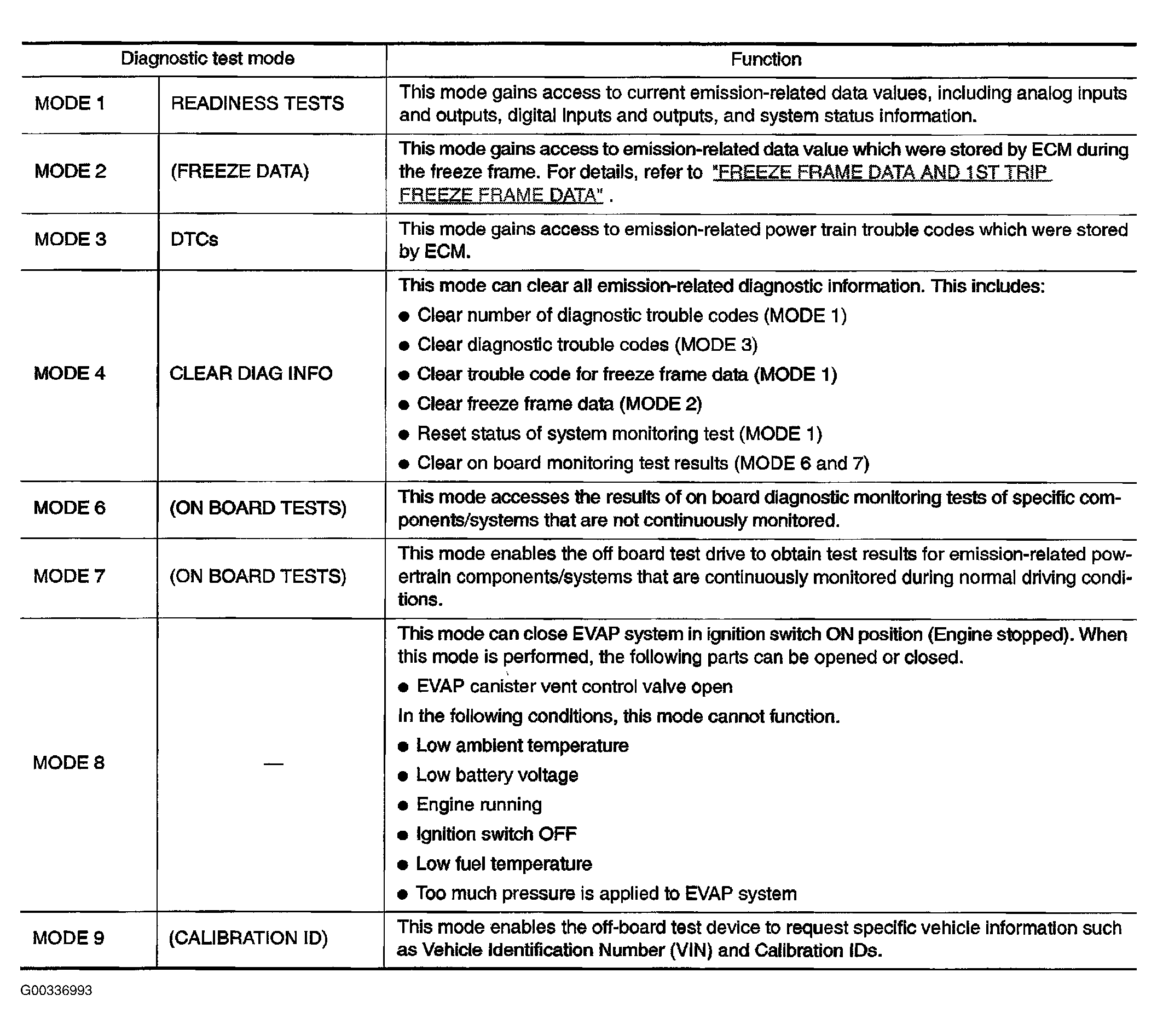

Fig 1: Function
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
