Engine Control System - KA24DE
›
CONSULT-II Function
›
Engine Control Component Parts/Control Systems Application
Engine Control Component Parts/Control Systems Application

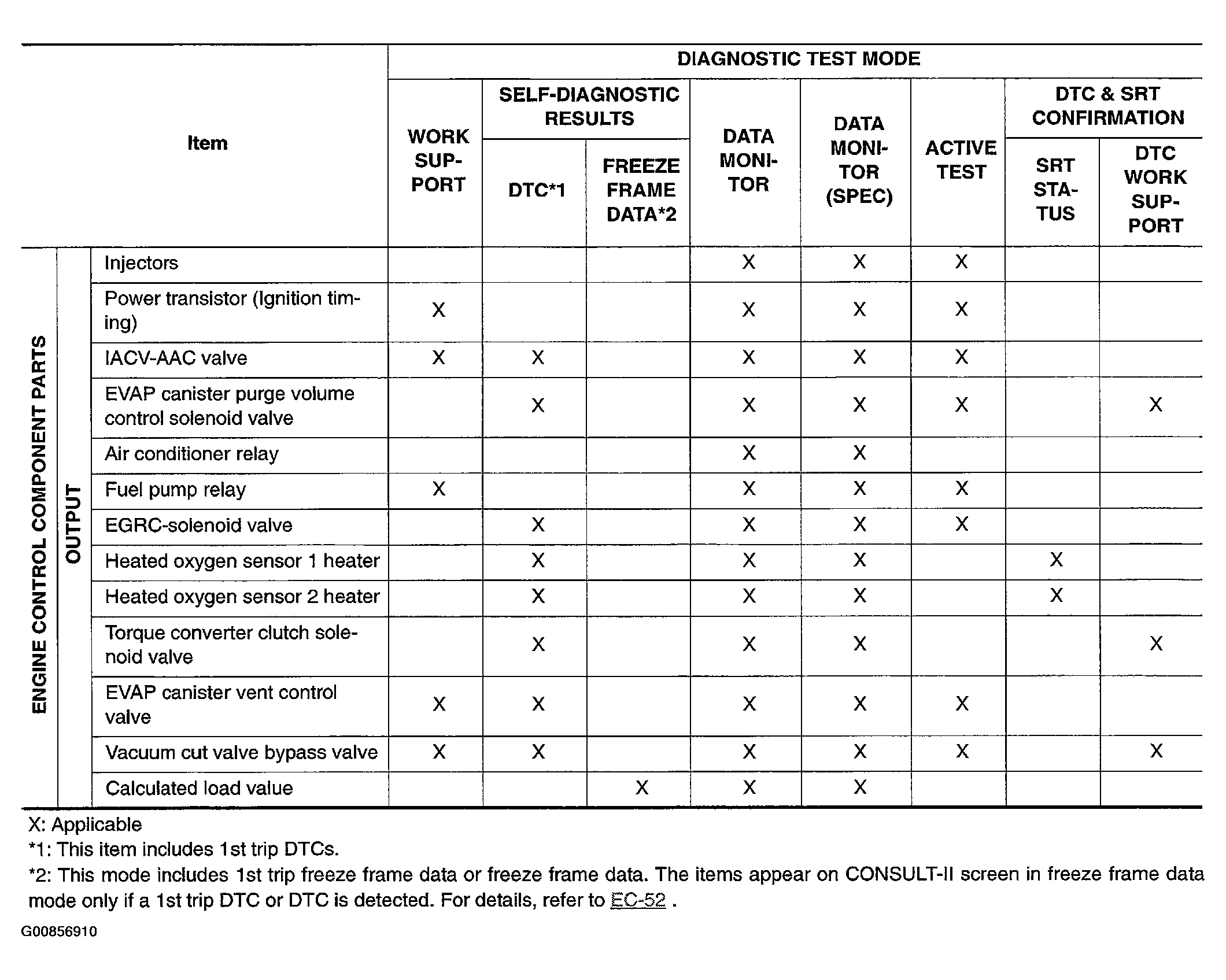

Fig 1: Engine Control Component Parts Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

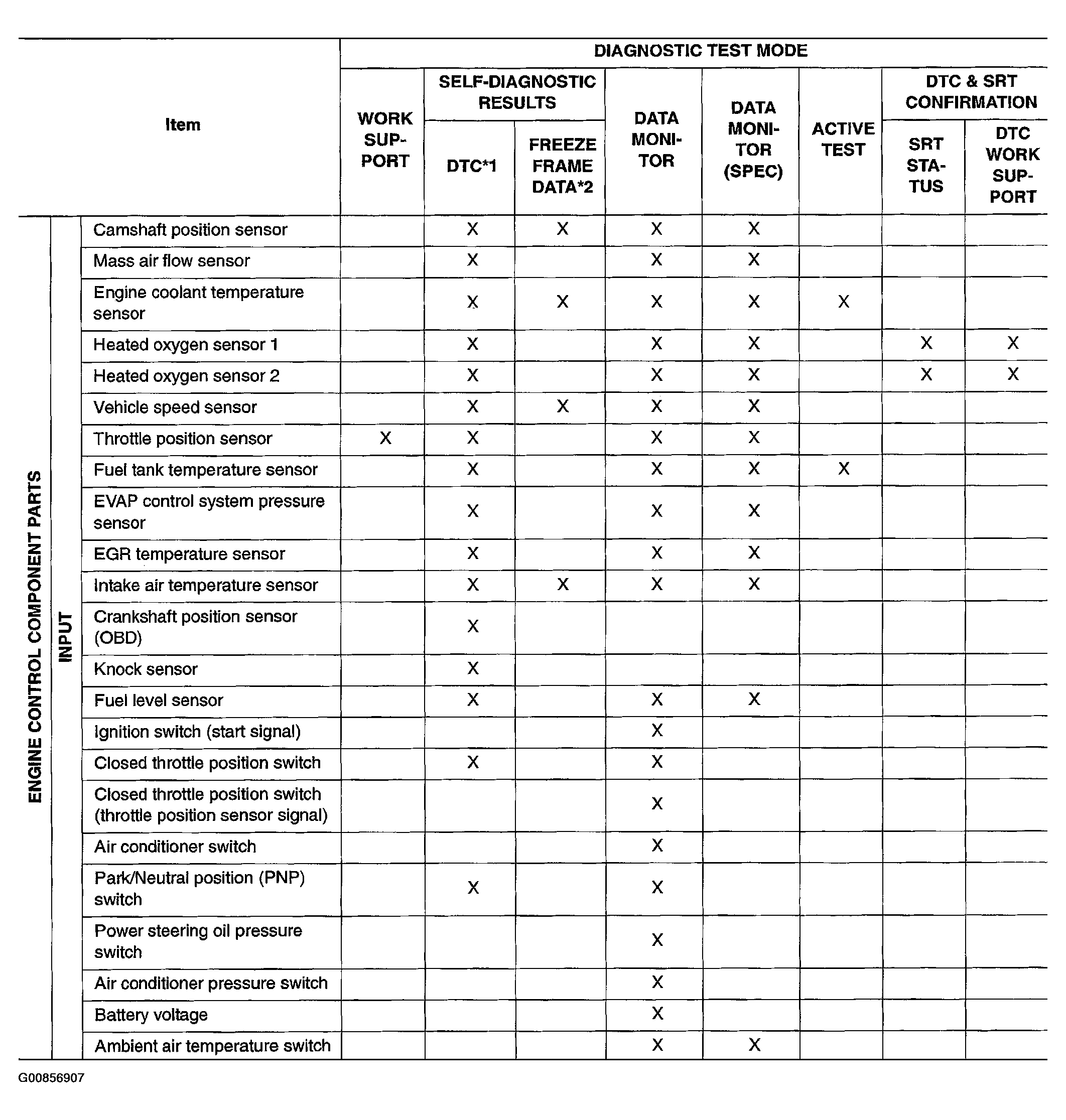

Fig 2: Diagnostic Test Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
