Data Link Connector: Wiring Diagram

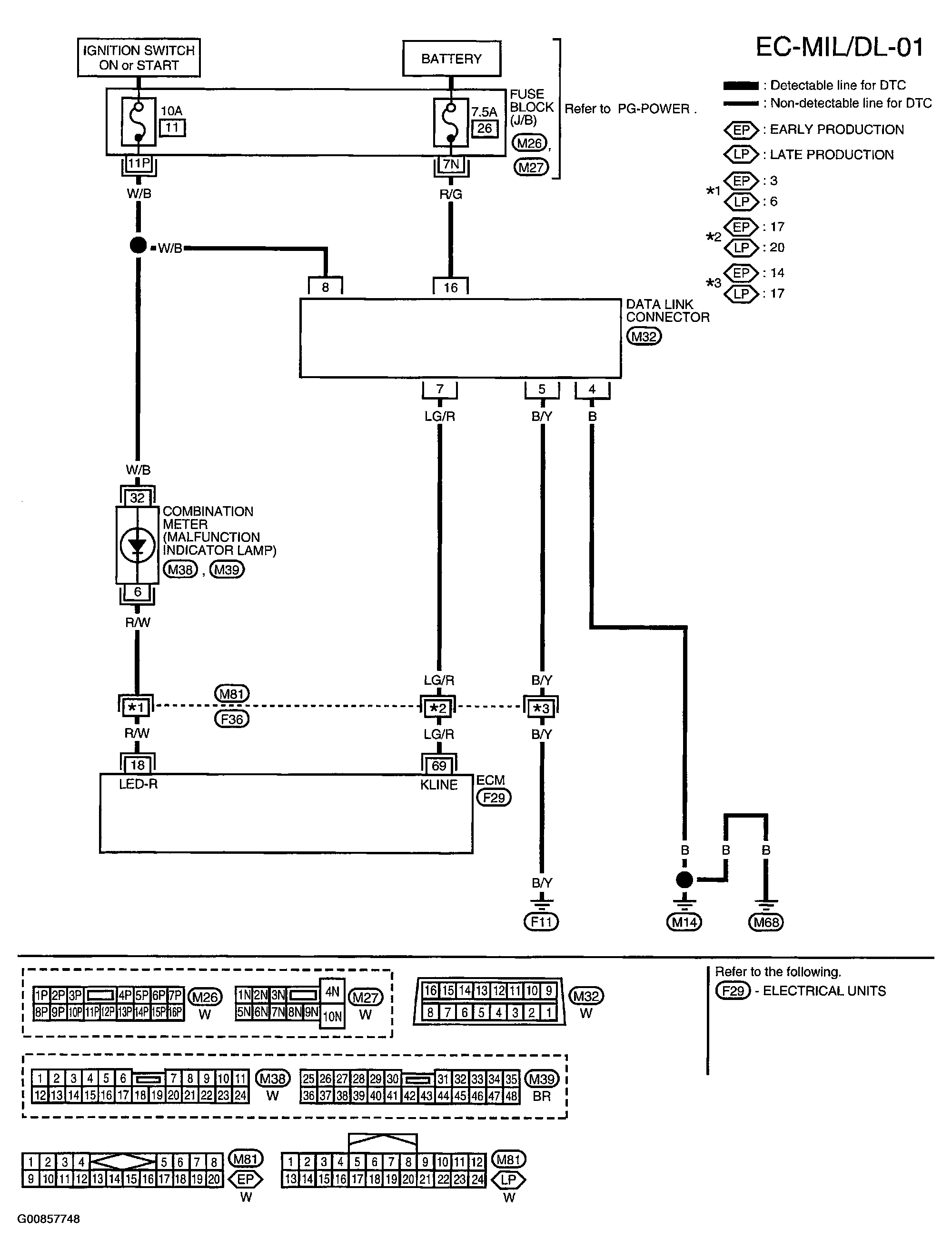

Fig 1: Wiring Diagram - EC-MIL/DL-01
G00857748Courtesy of NISSAN MOTOR CO., U.S.A.
