Fail-safe Chart

The ECM enters fail-safe mode if any of the following malfunctions is detected due to the open or short circuit. When the ECM enters the fail-safe mode, the MIL illuminates.

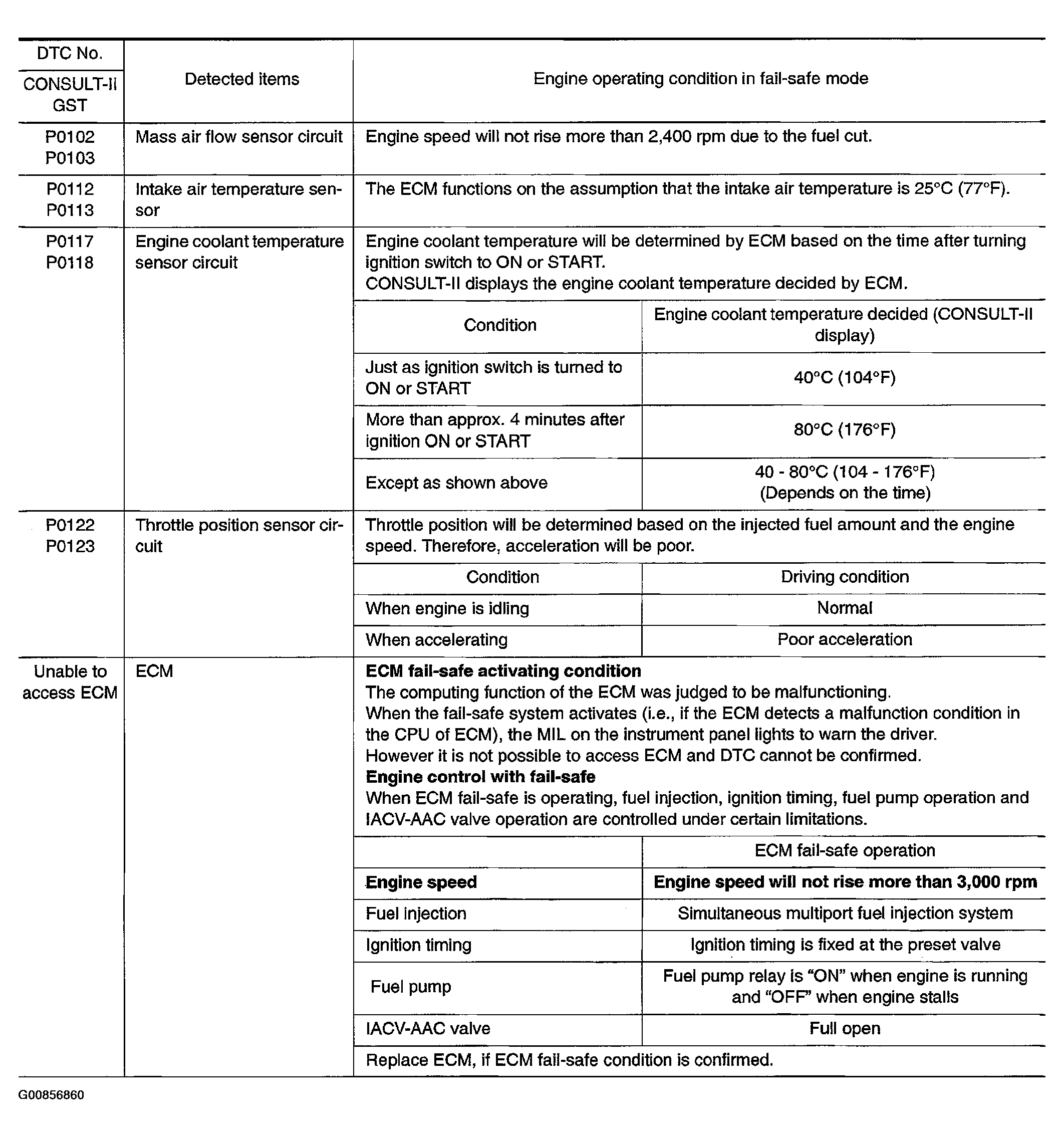

Fig 1: Fail-Safe Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
