Engine Control System - KA24DE
›
Precautions
›
Engine Fuel & Emission Control System
›
Notes
Engine Fuel & Emission Control System: Notes

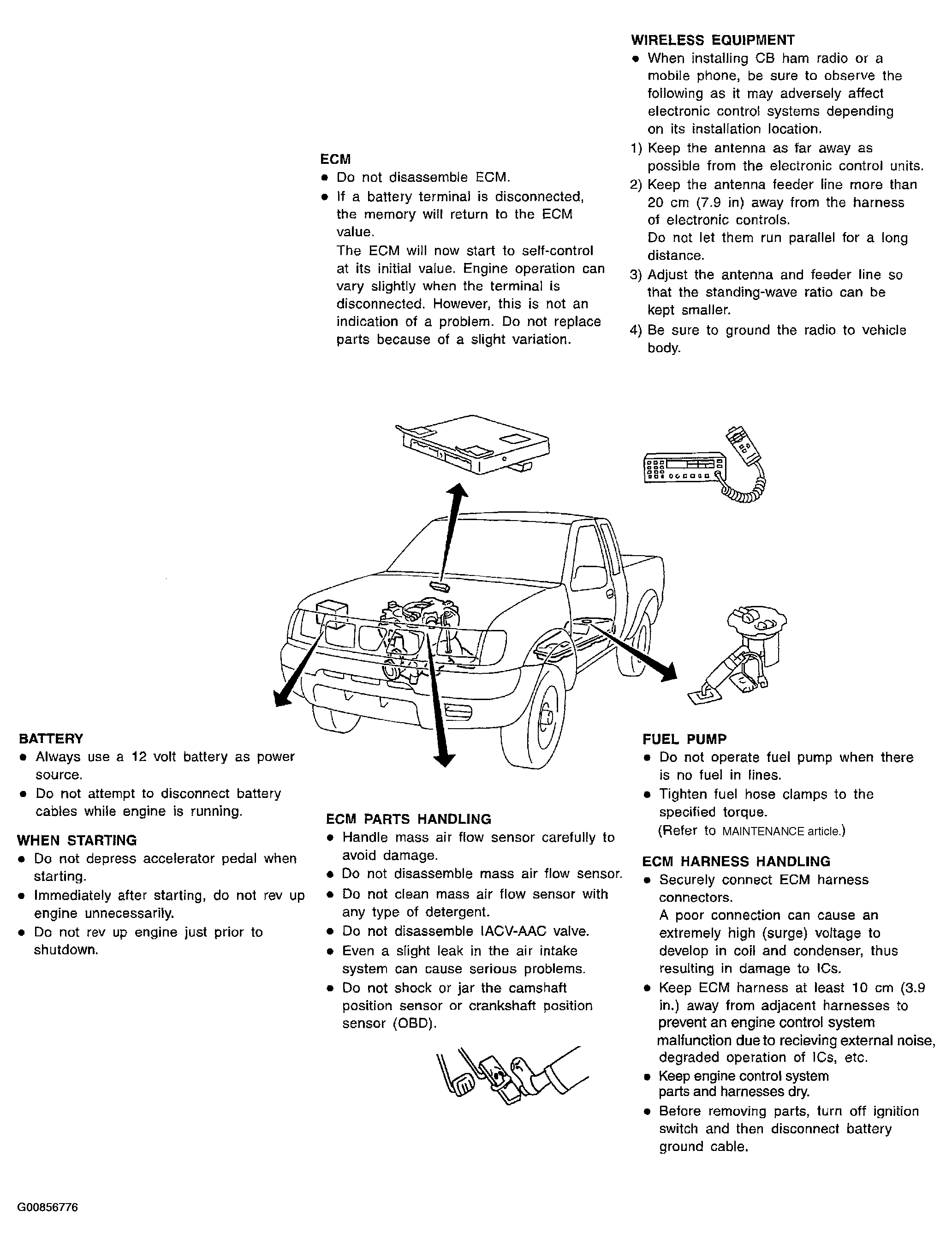

Fig 1: Identifying Engine Fuel & Emission Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
