Engine Control System - KA24DE
›
Symptom Matrix Chart
›
System --- Engine Control System
System --- Engine Control System

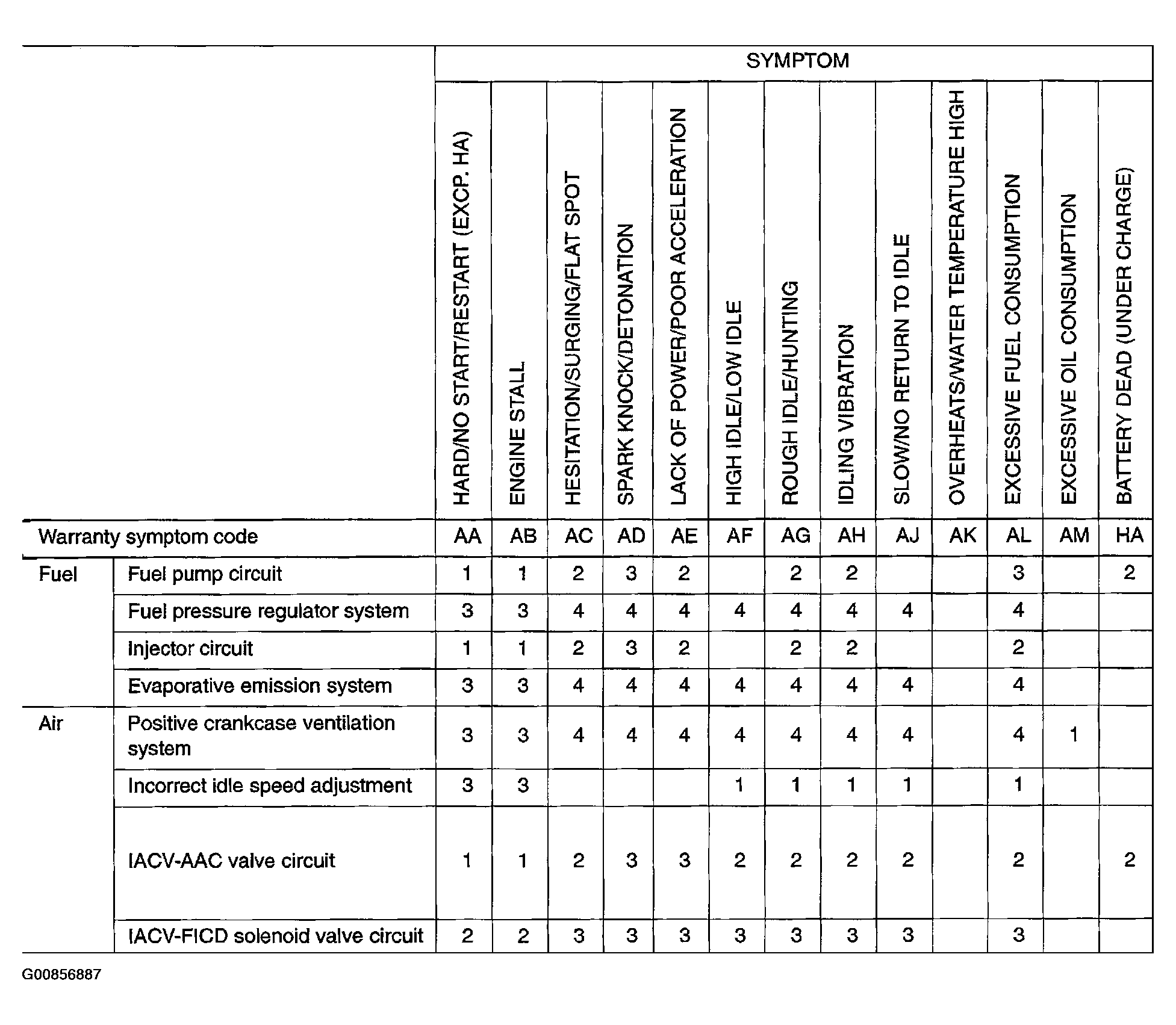

Fig 1: Symptom Matrix Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

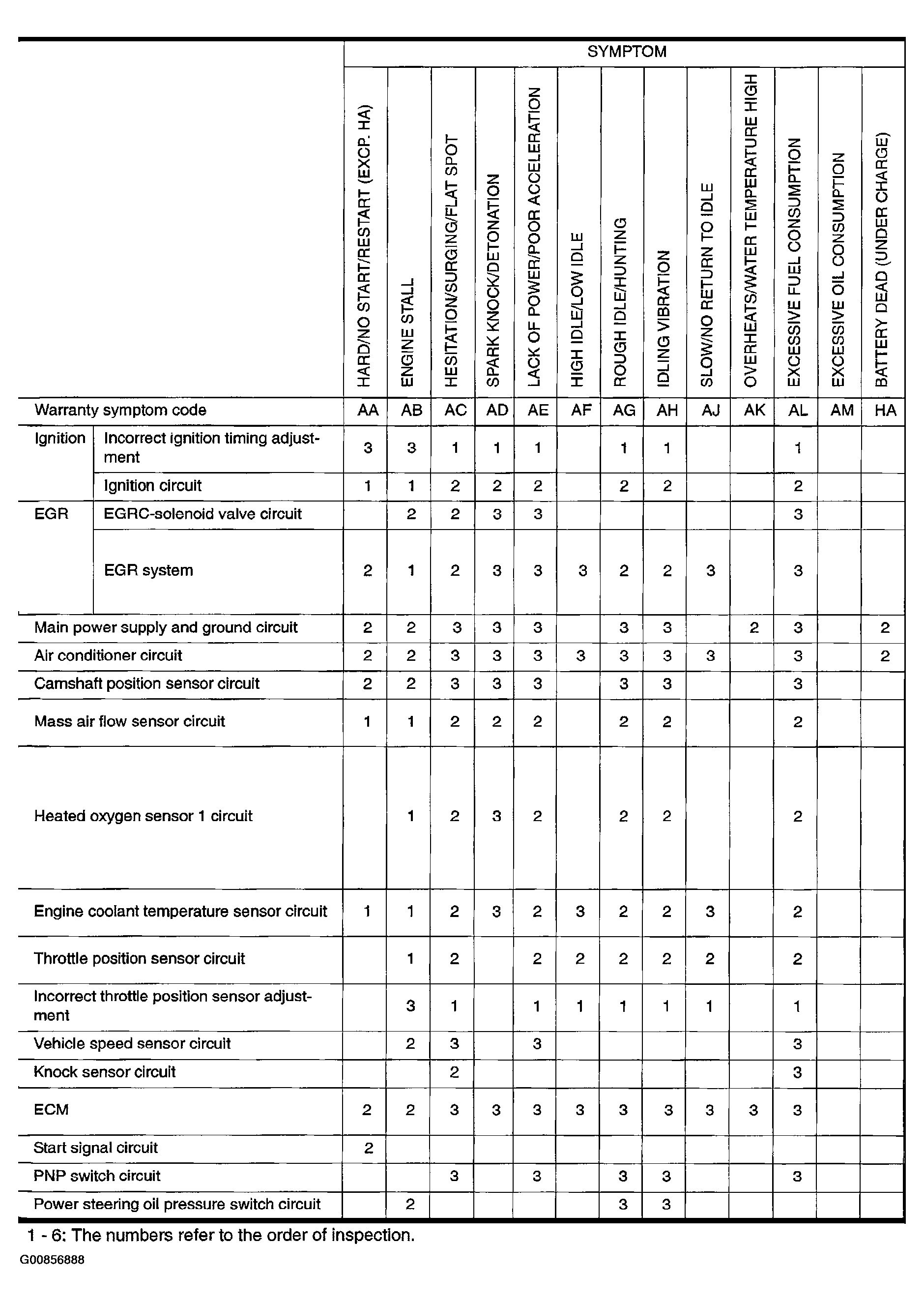

Fig 2: Symptom Matrix Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

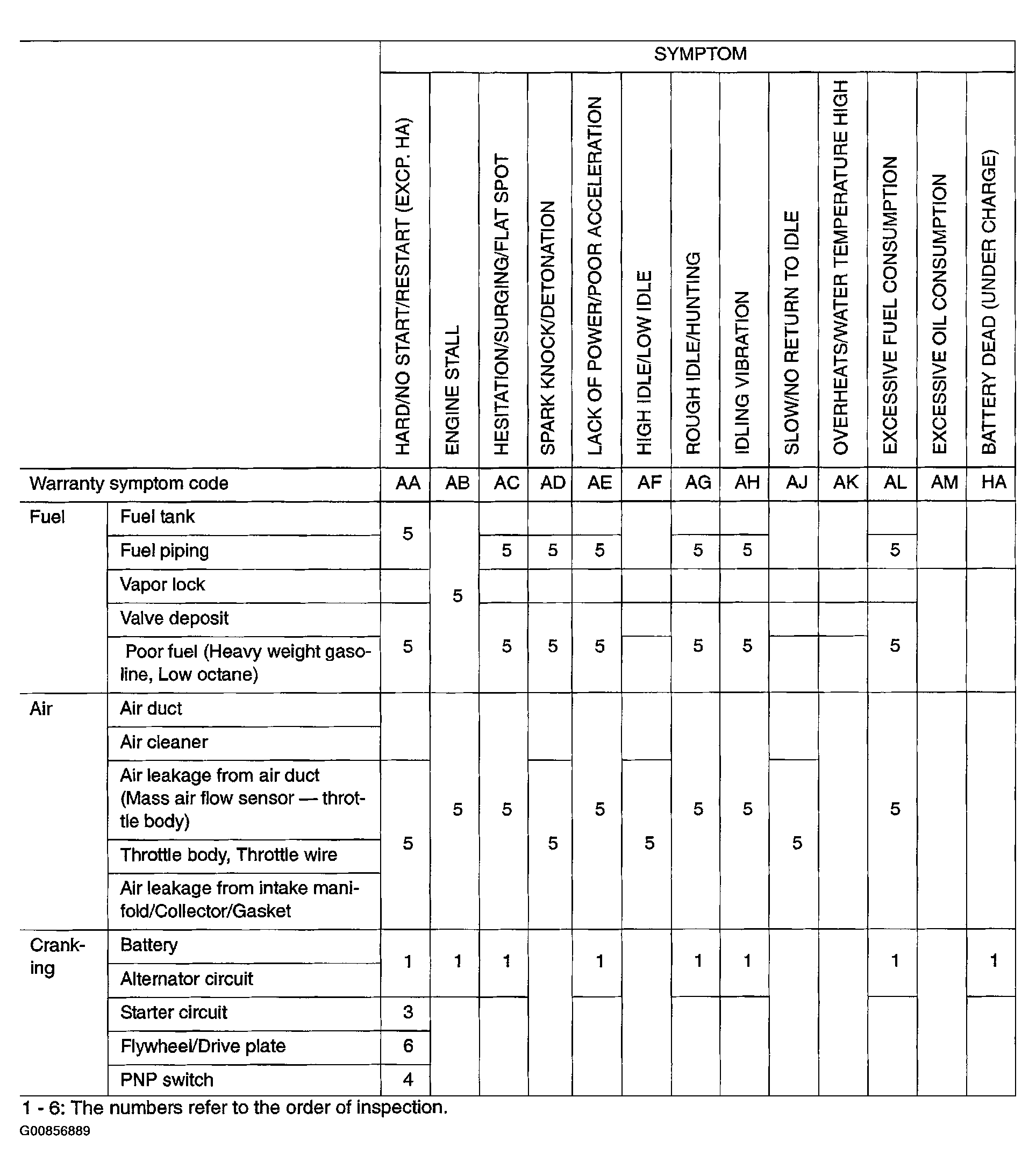

Fig 3: Symptom Matrix Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

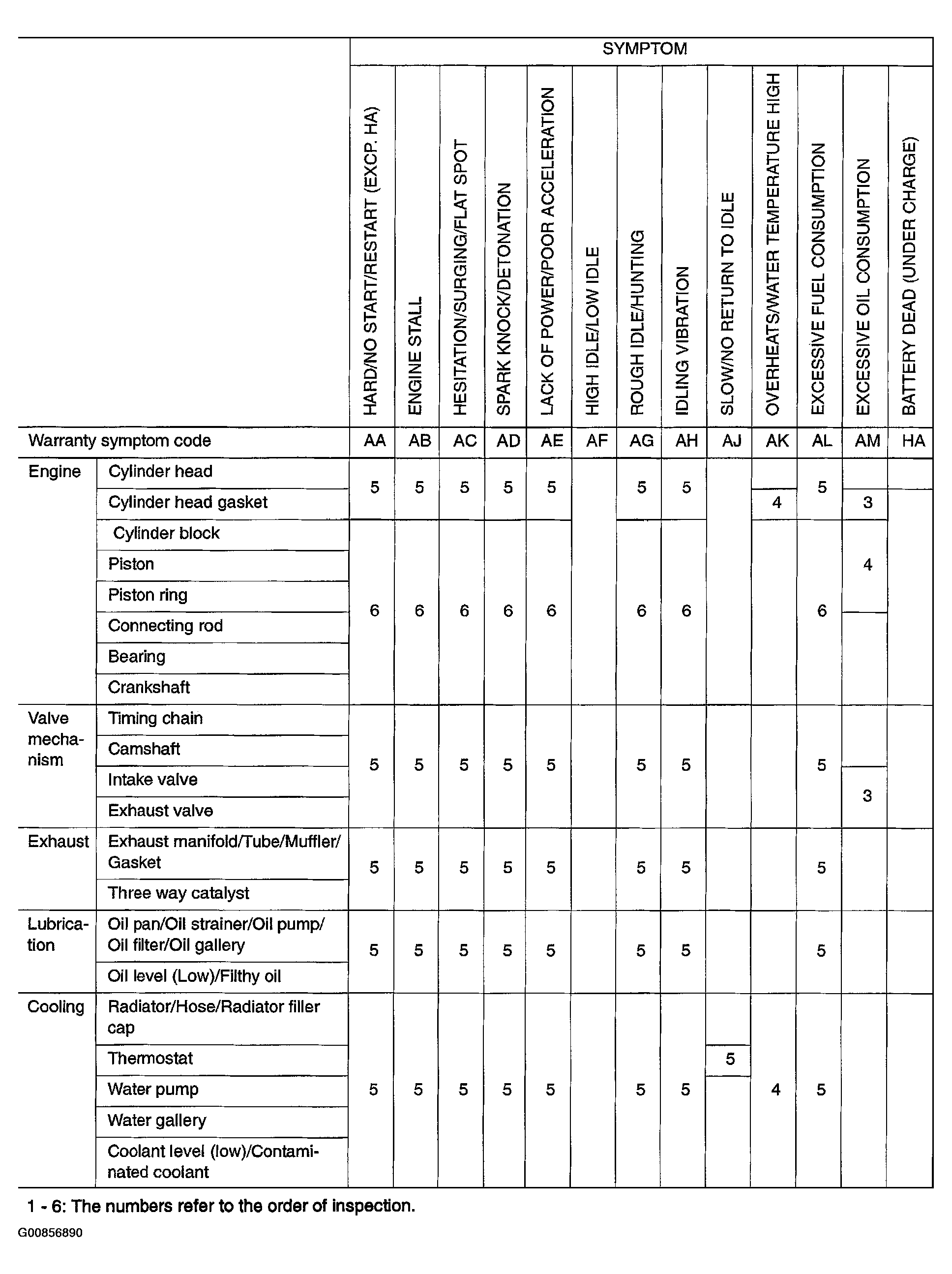

Fig 4: Symptom Matrix Chart (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
