Removal and Installation: Installation

Installation procedure is the reverse order of removal.

• Install the retainer, and the fuel pump and fuel level sensor assembly.
  CAUTION: Tighten the retainer bolts to specified torque.


  1. Retainer bolts: 2.0 - 2.5 N.m (0.20 - 0.26 kg-m, 17.4 - 22.6 in-lb)
• Always replace the O-ring with a new one.
• Make sure the quick connectors are clean and undamaged.
• Use the following procedure to check for leaks.
  • Turn ignition switch ON (do not start engine). Then check connections for leaks by applying fuel pressure to fuel piping.
  • Start the engine and let it idle, then check that there are no fuel leaks at the fuel piping connections.

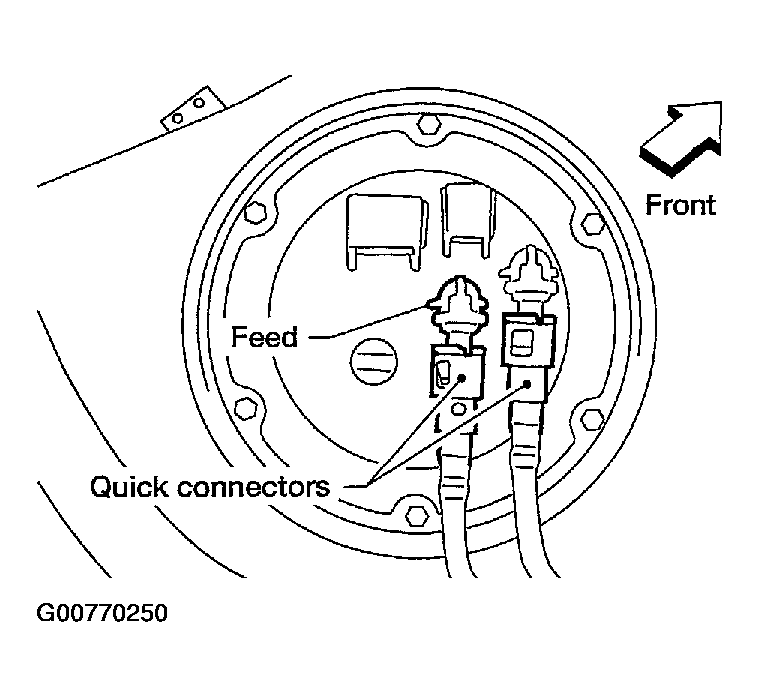

  Fig 1: Identifying Quick Connectors

  Courtesy of NISSAN MOTOR CO., U.S.A.
