Body (Alignment): Alignment: Notes

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length, then check pointers and the gauge to make sure there is no free play.
• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side is symmetrically the same value.
• The coordinates of the measurement points are the distances measured from the standard line of "X", "Y" and "Z".

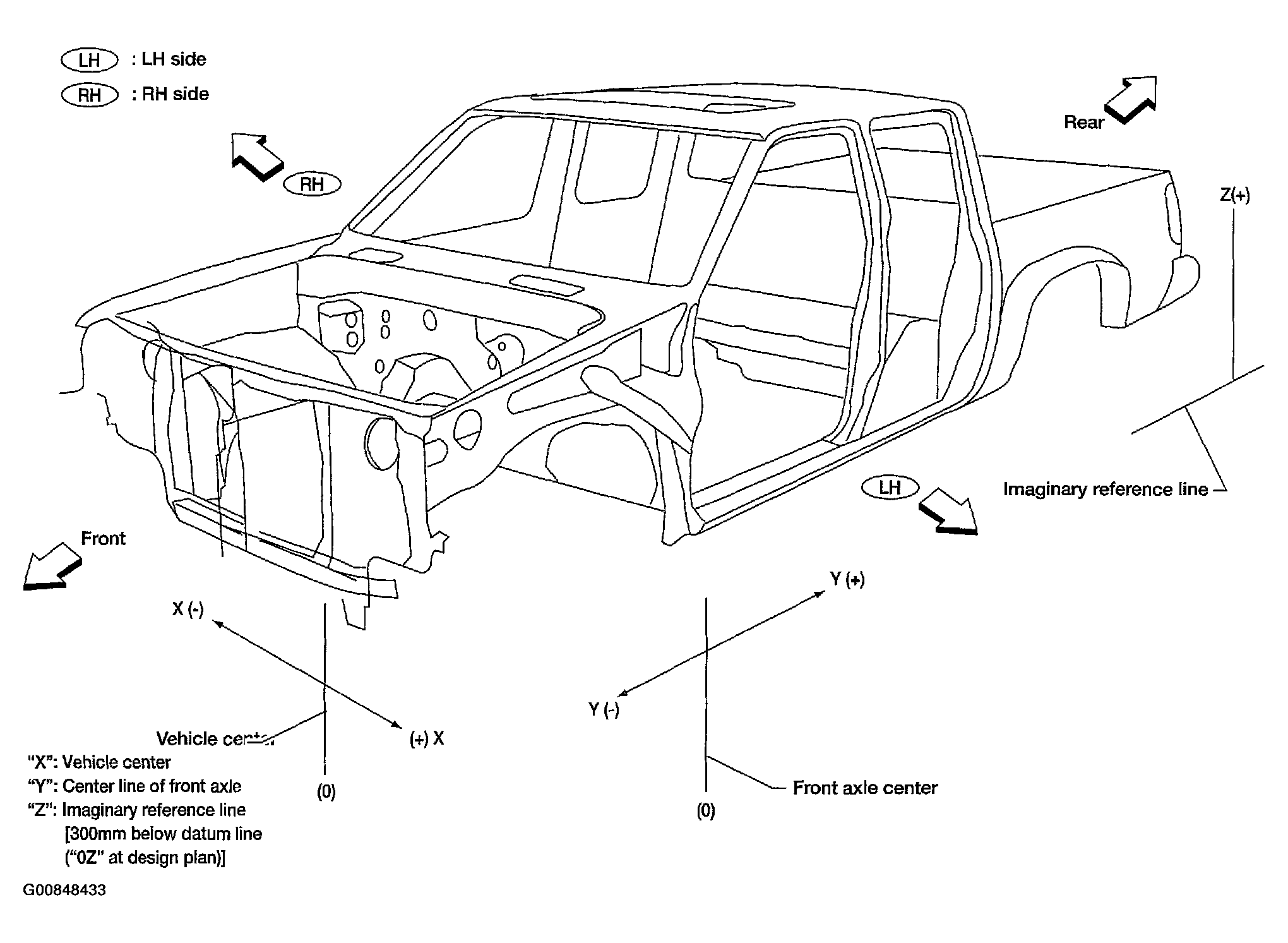

Fig 1: Locating Vehicle Alignment Reference Points

Courtesy of NISSAN MOTOR CO., U.S.A.
