Fuel Tank Temperature Sensor

1. Remove fuel level sensor unit.
   Fig 1: Removing Fuel Level Sensor Unit

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check resistance by heating with hot water or heat gun as shown in the figure.

Fig 2: Temperature Resistance Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

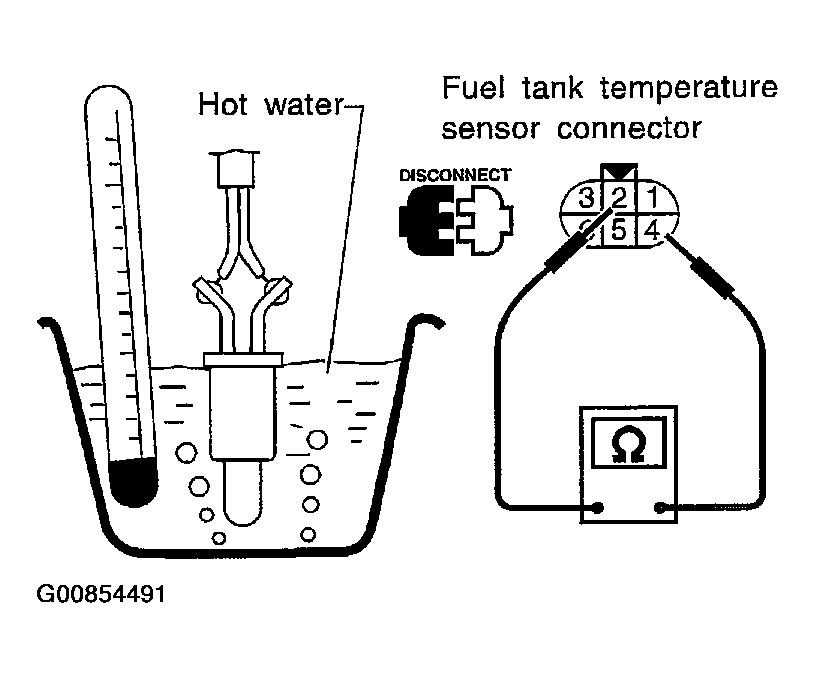

Fig 3: Checking Resistance By Heating With Hot Water

Courtesy of NISSAN MOTOR CO., U.S.A.
