FixVault
Home
›
Nissan-Datsun
›
2004
›
Frontier Base, Standard
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
Abs
›
Trouble Diagnosis
›
Component Installation Location
Component Installation Location

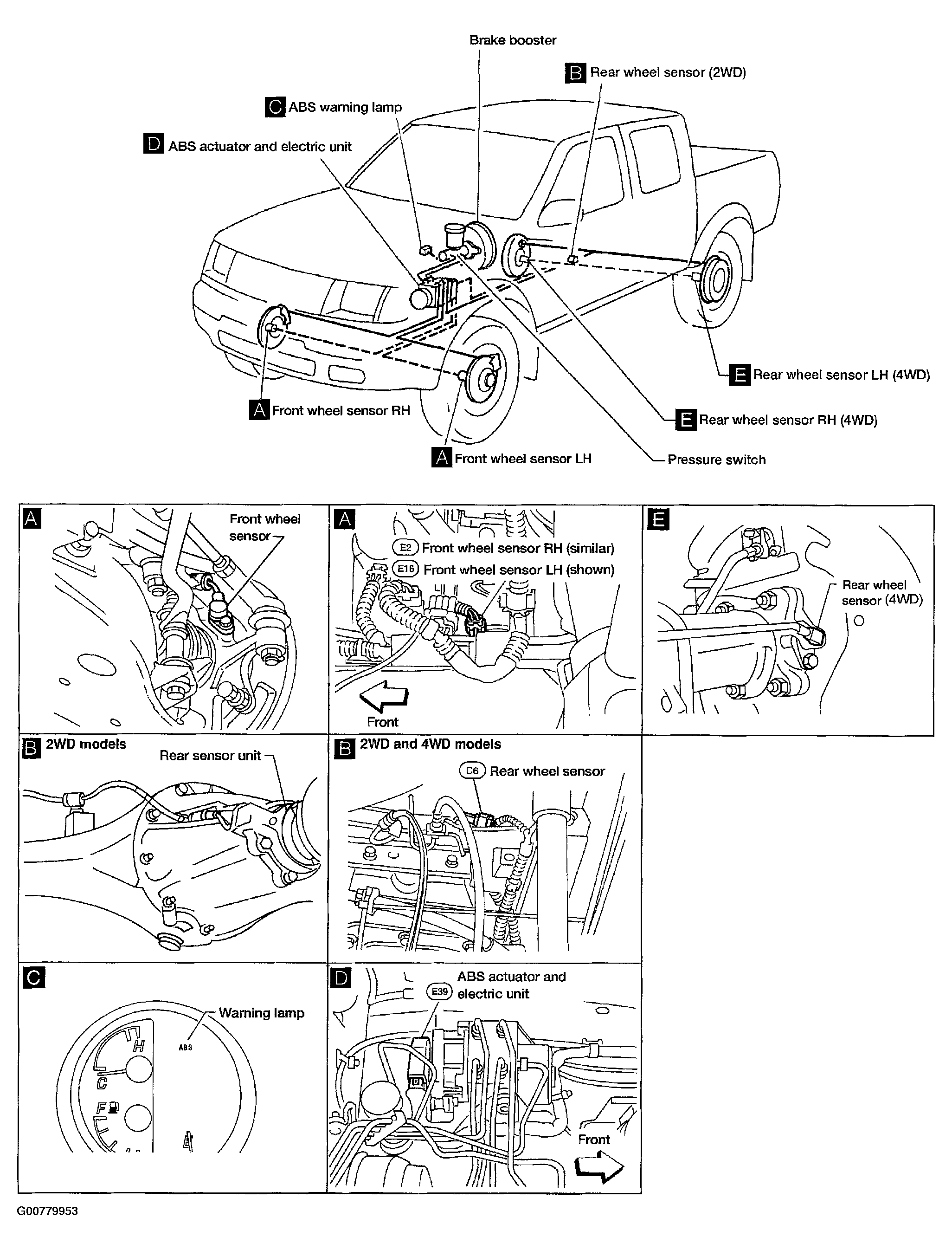

Fig 1: Identifying Brake Component Installation Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
