DTC P1402: EGR Function: Wiring Diagram

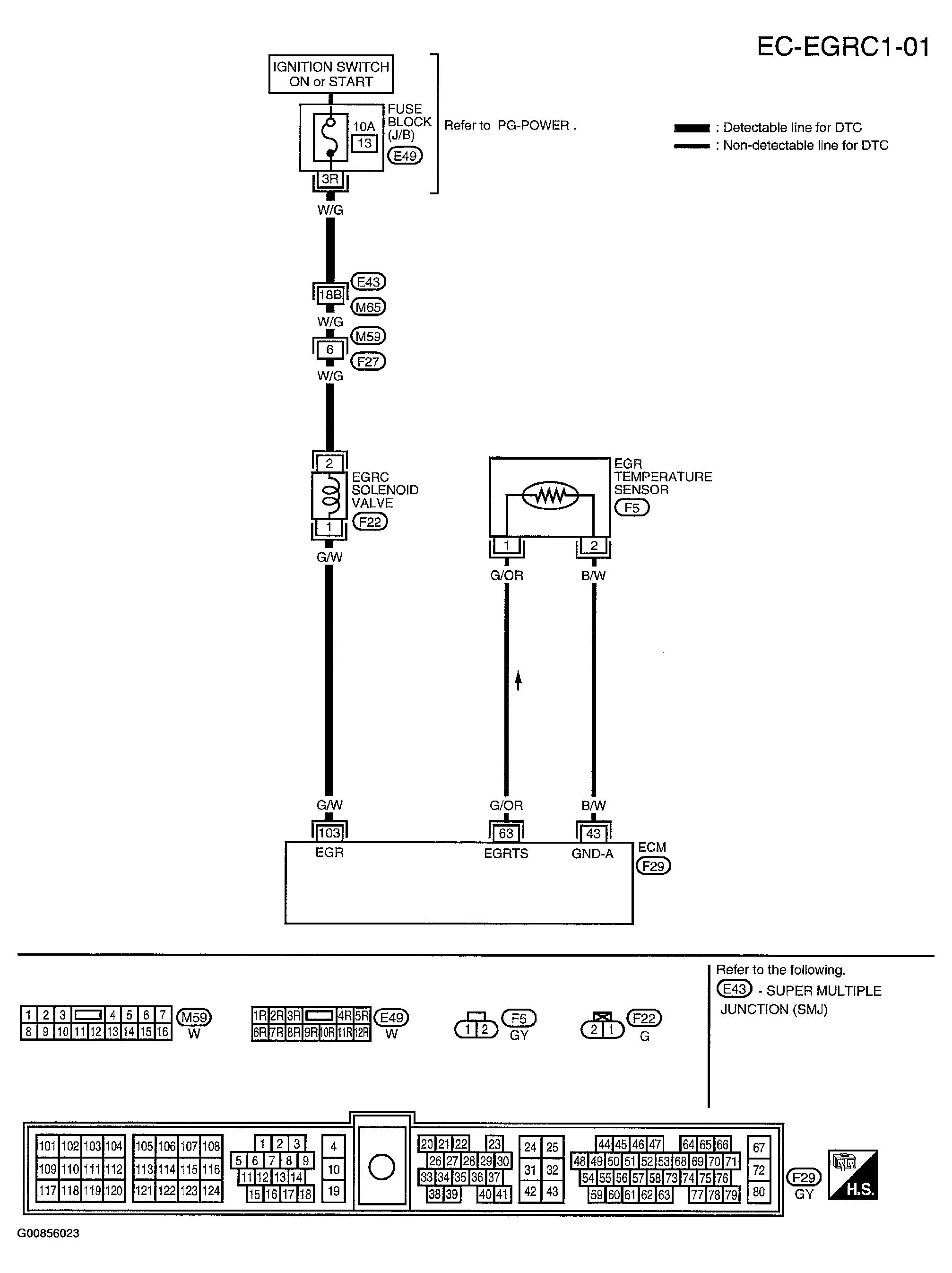

Fig 1: Wiring Diagram - EC-EGRC1-01
G00856023Courtesy of NISSAN MOTOR CO., U.S.A.
