DTC P1464: Fuel Level Sensor: Wiring Diagram

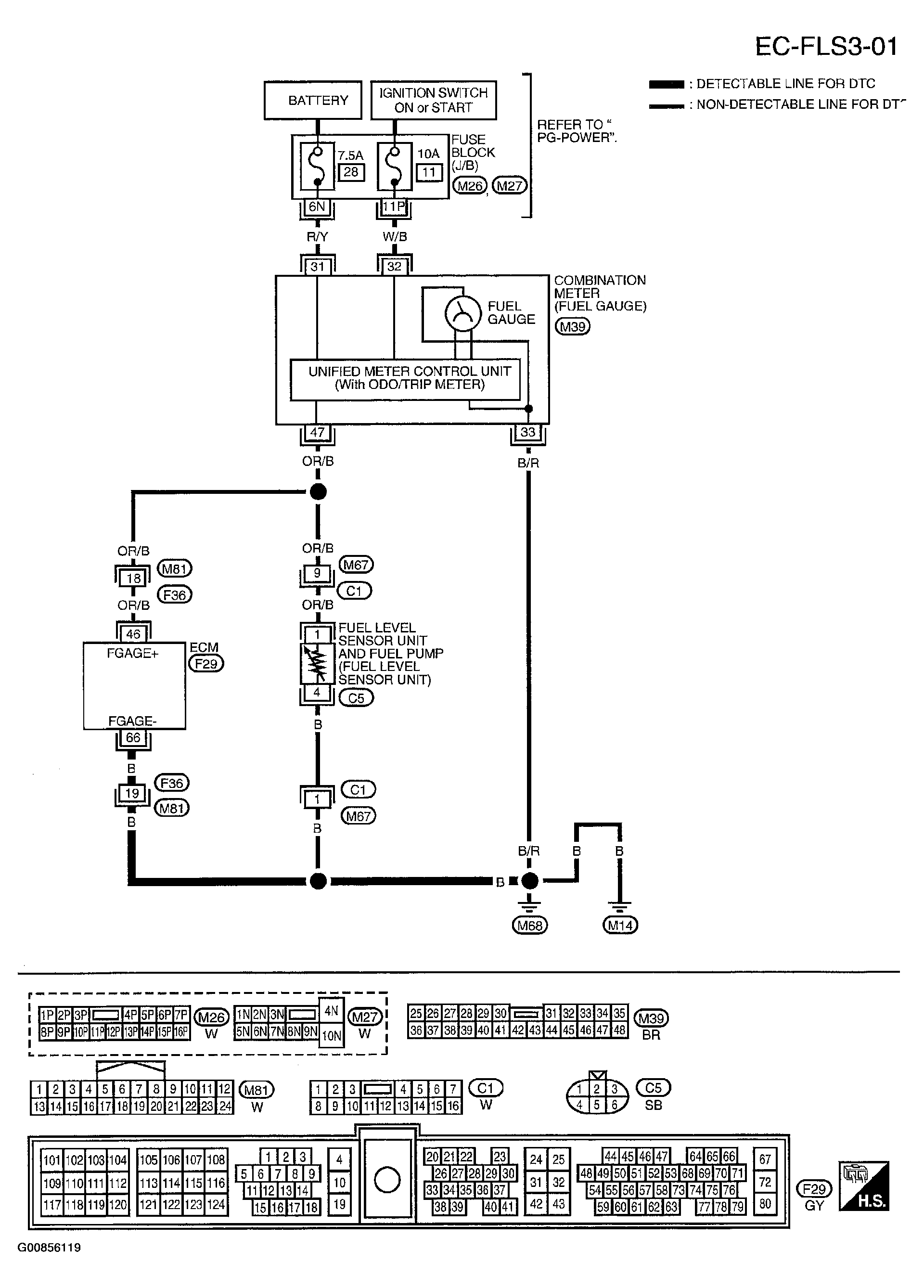

Fig 1: Wiring Diagram - EC-FLS3-01
G00856119Courtesy of NISSAN MOTOR CO., U.S.A.
